Solid Sealed Indoor High Voltage Vacuum Circuit Breaker

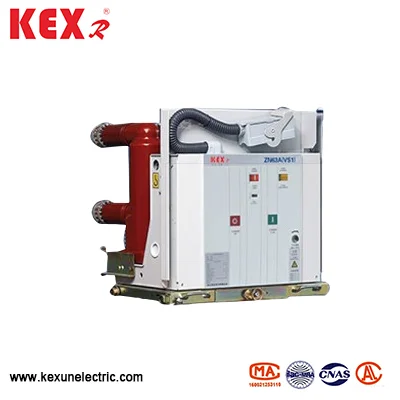

The VS1 type Solid sealed indoor high voltage vacuum circuit breaker adopts solid insulation structure, and uses advanced epoxy sealing technology to organically combine vacuum interrupter, main circuit and insulation support into an integrated solid sealing pole. This design fundamentally solves the environmental tolerance problem of vacuum circuit breaker and makes it more widely used.
Model: VS1
Brand：KEXR
Model: VS1
Brand：KEXR
● Technical characteristics
The VS1 type solid sealed indoor high voltage vacuum circuit breaker adopts long-life vacuum interrupter and epoxy casting solid sealing technology to ensure the long-term stable operation of the circuit breaker. At the same time, the electronic control part of VS1 type solid sealed indoor high voltage vacuum circuit breaker adopts fully electronic design and intelligent control unit, which provides higher maintenance-free and reliability
● Using conditions of the VS1 type solid sealed indoor high voltage vacuum circuit breaker
▶Ambient temperature range: The temperature surround VS1 type solid sealed indoor high voltage vacuum circuit breaker should be -15~40℃(Storage and transportation at -30℃ is allowed )
▶Altitude: The VS1 type solid sealed indoor high voltage vacuum circuit breaker
should be installed less than 1000 meters.
▶Relative humidity: the daily average is not more than 95%, the monthly average is not more than 90%, the daily average of saturated vapor pressure is not more than 2.2×10-3MPa, and the monthly average is not more than 1.8×10-3MPa.
▶Earthquake intensity: ≤8
Note：Vs1 type solid sealed indoor high voltage vacuum circuit breaker shall be installed in a place free from fire, explosion, serious pollution, chemical corrosion and violent vibration.
◆ Meet the standard
IEC60265、IEC62271、GB3804、GB16926 etc..
● Technical parameters of Vs1 type solid sealed indoor high voltage vacuum circuit breaker
|
Item |
Unit |
Data |
|||
|
Rated voltage |
KV |
12 |
|||
|
Rated insulate level |
Rated lightning impulse withstand voltage（Peak） |
KV |
75 |
||
|
1 Min Working operate withstand voltage |
42 |
||||
|
Rated short-circuit break current |
KA |
20/25 |
31.5 |
40 |
|
|
Rated current |
A |
630 |
630 1250 |
1250 1600 |
|
|
1250 |
1600 2000 |
2000 2500 |
|||
|
|
2500 3150 |
3150 |
|||
|
Rated Thermal Stability Current (RMS) |
KA
|
20/25 |
31.5 |
40 |
|
|
Rated dynamic stable current (peak ) |
63 |
80 |
100 |
||
|
Rated short-circuit closing current (peak ) |
63 |
80 |
100 |
||
|
Rated short-circuit current breaking times |
Time |
50 |
|||
|
Power frequency withstand voltage of secondary circuit (1min) |
V |
2000 |
|||
|
Rated operating sequence |
|
0-0.3s-CO-180s-CO |
|||
|
0-180s-CO-180s-CO |
|||||
|
Rated thermal stability time |
S |
4 |
|||
|
Rated single/rated capacitor current breaking current |
A |
630/400 800/400(40KA) |
|||
|
Mechanical life |
Time |
10000 |
|||
