Voltage Transformer
In order to meet the needs of customers in all aspects, China manufacturer Kexun specializes in producing a variety of indoor and outdoor voltage transformers to suit different usage scenarios.
●Essence of the Voltage transformer: a special transformer (electromagnetic induction principle)
◆Core functions:
▶convert the system high voltage (such as 10kV) into the standard low voltage (100V or 100/√3V). ▶Electrical isolation: realize the safe isolation of high and low voltage circuits.
▶Signal distribution: provide synchronous voltage signals for multiple devices.
● Typical wiring scheme：
V-V wiring ：(two-phase): 10kV Bus Phase A → VT1 → Meter 10kV bus phase C → VT2 → protection device
Y-Y-δ wiring： (three-phase open triangle): Three-phase bus → JSZY-10R → Main winding: watt-hour meter/monitoring system Auxiliary winding: grounding protection device
● Precision selection:
Measurement: 0.2 (electricity fee settlement point)
Monitoring: 0.5
Protection: 3P level (general protection) /6P level (high precision protection)
●Operation and maintenance safety specification
Five prohibitions:
Short circuit is prohibited on the secondary side (except for protective winding).
Must be grounded reliably.
Nuclear phase is required before operation.
Check insulation resistance regularly.
Abnormal fever immediately shut down.
- View as

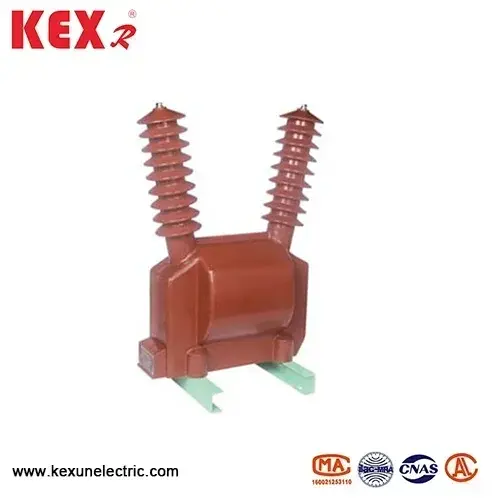

Outdoor Low Voltage Transformer
JDZW type Outdoor Low voltage transformer, which is produced by China supplier kexun, is suitable for 10-35kV outdoor distribution system. It has the functions of measurement, measurement and protection, and can resist harsh environment.
Model: JDZW
Brand：KEXR
Model: JDZW
Brand：KEXR

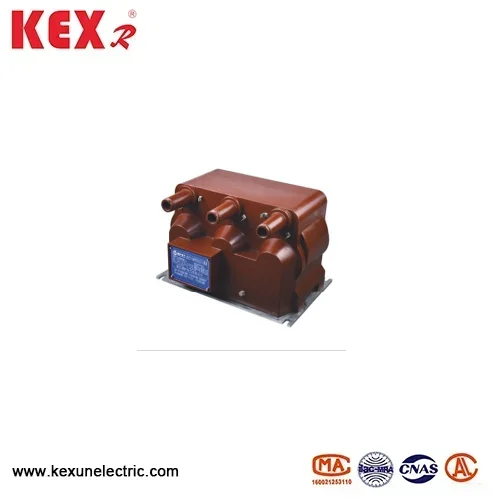

Indoor Potential Transformer
JSZY-10R Type Indoor Potential Transformer is a device produced by China factory Kexun, which is suitable for neutral ungrounded/small current grounding system and has the functions of measurement, protection and insulation monitoring.
Model: JSZY-10R
Brand：KEXR
Model: JSZY-10R
Brand：KEXR

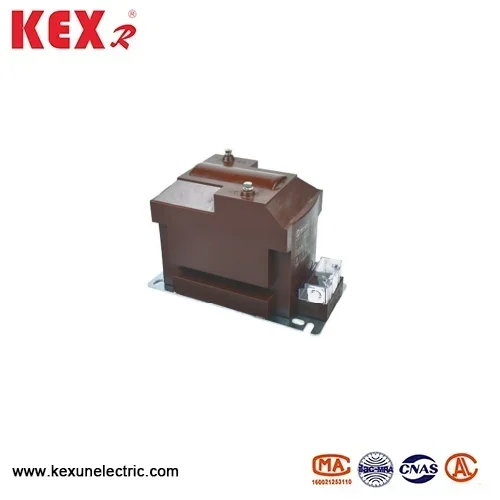

Indoor Low Voltage Transformer
As a well-known supplier of power transmission and distribution equipment in China, Kexun's JDZ 10 Type Indoor Low Voltage Transformer is suitable for working at rated voltages of 3KV, 6KV and 10KV, and is often used for the protection of electrical equipment and measuring instruments.
Model: JDZ10
Brand：KEXR
Model: JDZ10
Brand：KEXR
Kexun is a professional Voltage Transformer manufacturer and supplier in China. Welcome to import quality products from our factory here.
