Gas-insulated Switchgear

● Gas-insulated switchgear Design features

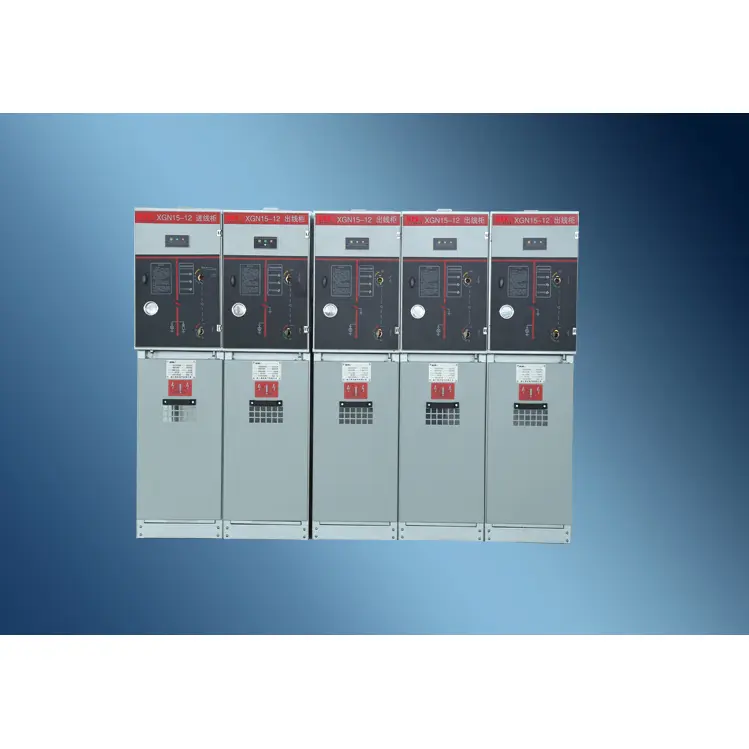

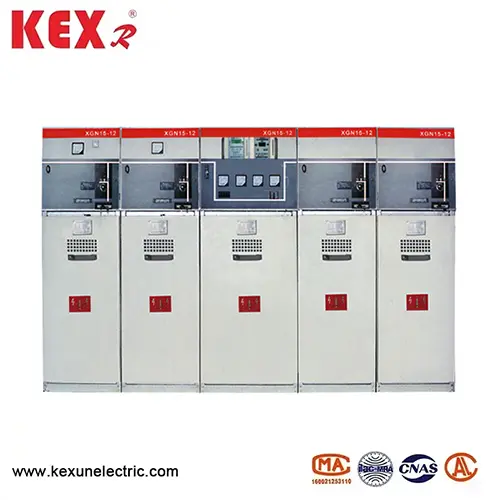

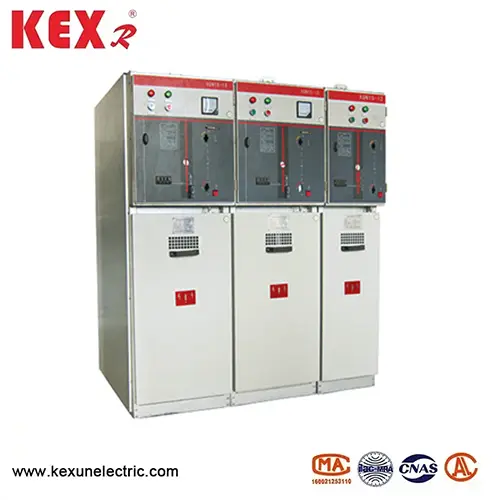

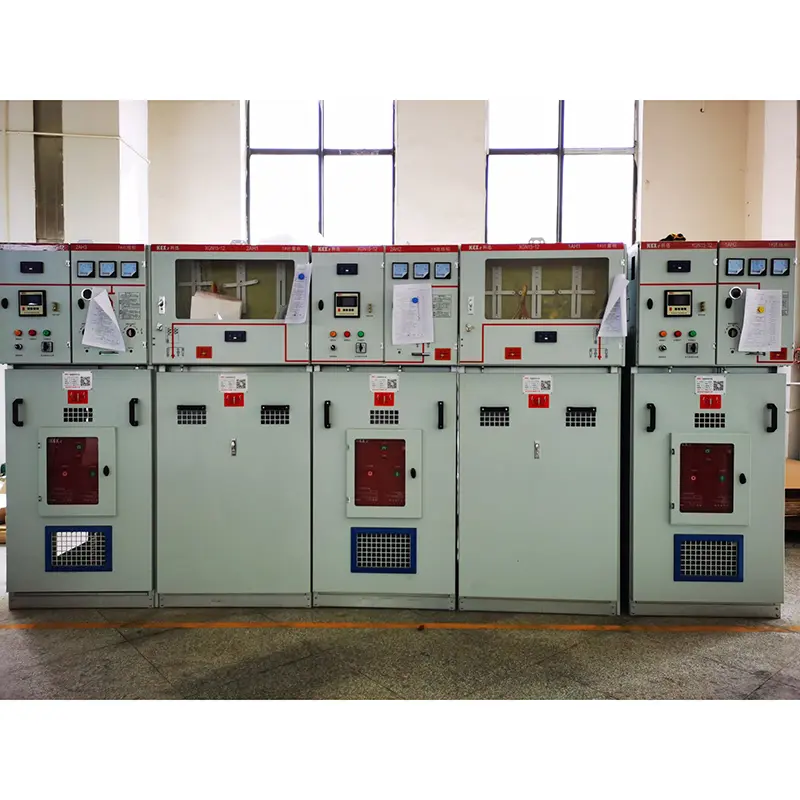

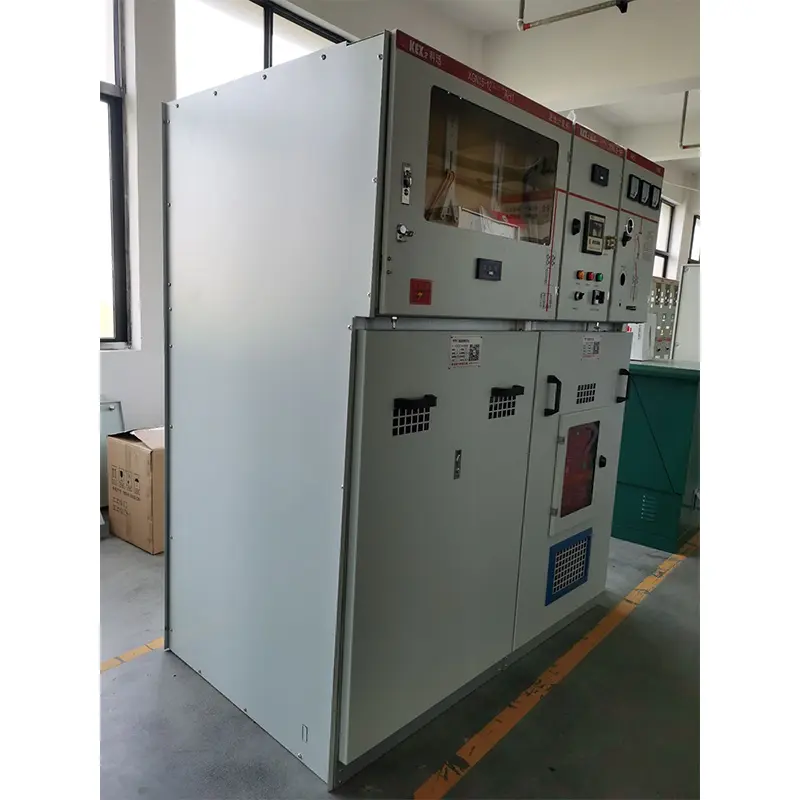

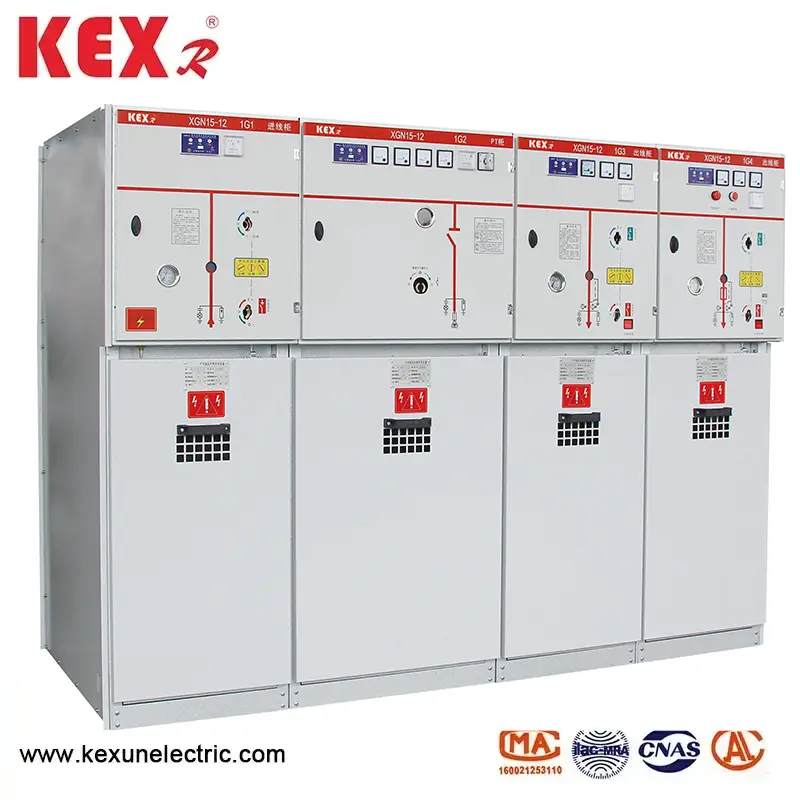

XGN15-12 type Gas-insulated switchgear has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation, and can provide satisfactory technical solutions for various applications and different user requirements.

The adoption of sensing technology and the latest protective relay, coupled with advanced technical performance and light and flexible assembly scheme, can fully meet the changing needs of the market. The main switches of GN15-12 unit sulfur hexafluoride ring network cabinet are FLN36 and FLN48, SF6 load switch and ABB original SFG, and ABB original VD4/S, HD4/S circuit breaker and VS1 circuit breaker can also be equipped according to users' needs.

● Area of application

XGN 15-12 type Gas-insulated switchgear is suitable for AC 50HZ and 12kV power systems, and is widely used in industrial and civil cable ring networks and power supply terminal projects. It is especially suitable for the following places: power distribution in urban residential areas, small secondary substations, switching stations, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals, stadiums, railways, tunnels, etc.

● Gas-insulated switchgear Using conditions

◆ Altitude ≤ 1000 m. (If you have special requirements, please indicate them when ordering)

◆ Ambient temperature: -25℃~+40℃

◆ The average daily relative humidity shall not exceed 95%; The average monthly relative humidity does not exceed 90%;

◆ Seismic capacity: 8 degrees;

◆ No violent vibration and impact, and places with fire, chemical corrosion and explosion hazards.

● Standards

XGN15-12 type Gas-insulated switchgear meets below standards

·IEC298        ·IEC265        ·IECL29        ·IEC694

·IEC420        ·IEC56          ·IEC529        ·IEC932

·GB3804       ·GB3906        ·GB11022

● Technical parameters and dimension of XGN15-12 Gas-insulated switchgear
