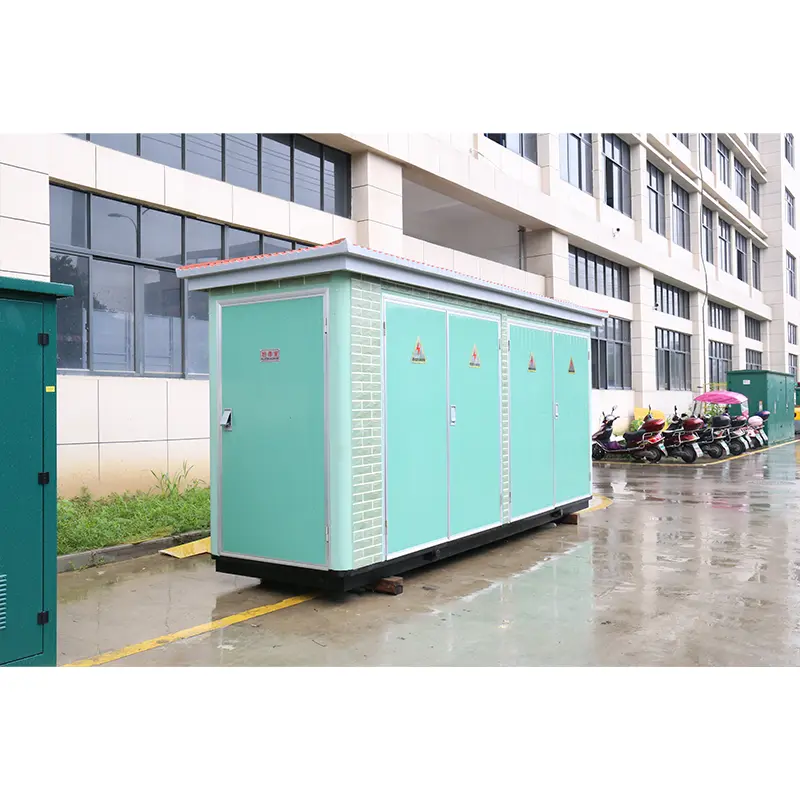

High Voltage Ring Network Cabinet
Kexun is the manufacturer specializing in High Voltage Ring Network Cabinet in China.
Its best-selling products KXSGN-12-SIS3 is a solid insulation fully enclosed switchgear. It adopts modular, fully sealed, fully insulated and fully metal closed structure.The surface is coated with conductive or semi-conductive shielding layer, which can be directly and reliably grounded.
Model:KXSGN-12-SIS3
Brand:KEXR
Its best-selling products KXSGN-12-SIS3 is a solid insulation fully enclosed switchgear. It adopts modular, fully sealed, fully insulated and fully metal closed structure.The surface is coated with conductive or semi-conductive shielding layer, which can be directly and reliably grounded.
Model:KXSGN-12-SIS3
Brand:KEXR
● Design feature
▶ The vacuum interrupter circuit breaker and load switch module are encapsulated by epoxy resin. Modular integrated main circuit with manual and electric three-station disconnector.
▶ The vacuum interrupter circuit breaker module has the ability to open and close short-circuit current.
▶ There is a visible fracture in the closing grounding position of the three-station disconnector, and the disconnector and the grounding switch can quickly open and close the short-circuit current.
▶ The epoxy resin insulated air chamber box sealed by three-station isolating switch can pressurize dry air by 0.04Mpa. It is equipped with a pressure gauge to monitor the internal pressure online to prevent leakage and extravasation, and to protect the isolating switch and grounding switch.

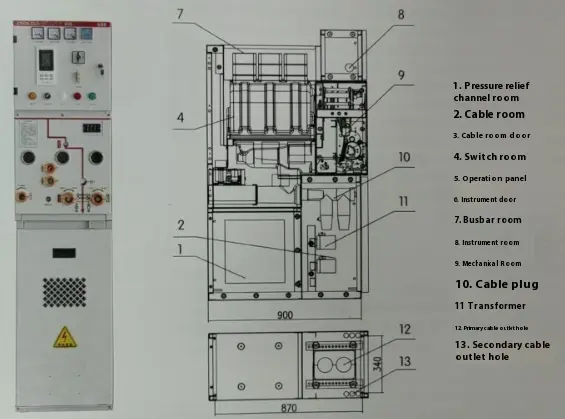

● Structural dimension
● Upper isolated dimension drawing
|
Plan |
Cabinet Width |
Cabinet Depth |
Cabinet Height |
Overhead outline |
|
PT incoming line |
450 |
900 |
1600 |
Deepen 260 |
|
Incoming and outline |
425 |
900 |
1600 |
Deepen 260 |
|
Interconnection switch |
425 |
900 |
1600 |
Deepen 260 |
|
Interconnection isolation |
425 |
900 |
1600 |
Deepen 260 |
|
Busbar lifting |
425 |
900 |
1600 |
Deepen 260 |
|
Traditional measurement |
750 |
900 |
1600 |
Deepen 260 |
|
Compact measurement |
425 |
900 |
1600 |
Deepen 260 |
|
Power supply PT |
450 |
900 |
1600 |
Deepen 260 |
|
Control and protection base station |
425 |
900 |
1600 |
Deepen 260 |
● Technical parameter tables
◆ Breaker technical parameter
|
Item |
Unit |
Data |
||
|
Rated voltage |
KV |
12 |
||
|
Rated frequency |
Hz |
50 |
||
|
Rated insulation level |
1M working frequency withstand voltage |
KV |
42 |
|
|
Lightning impulse withstand voltage |
KV |
75 |
||
|
Rated current |
A |
630 |
1250 |
|
|
Rated short-circuit breaking current（1sc） |
KA |
20 35 |
31.5 |
|
|
Rated short-circuit closing current（peak） |
KA |
50 63 |
80 |
|
|
Rated peak withstand current |
KA |
50 63 |
80 |
|
|
Rated short-term withstand current |
KA |
20 25 |
31.5 |
|
|
Rated short-time breaking current breaking times |
Time |
30 |
30 |
|
|
Rated short-time breaking current lasting time |
S |
4 |
||
|
Rated operating sequence |
Auto reclosing |
|
Off-0.3s-onoff-180-onoff |
|
|
Non-automatic reclosing |
|
Off-0.3s-onoff-180-onoff |
||
|
Mechanical life |
Time |
3000 |
||
|
Rated breaking current of single capacitor bank |
A |
630 |
||
|
Rated breaking current of B to B capacitor bank |
A |
400 |
||
◆ Technical parameters of load switch (Unit C)
|
Item |
Unit |
Data |
|
Rated current |
A |
630 |
|
Rated short-circuit off-on current |
KA |
50 |
|
Rated short-term withstand current |
KA/S |
20/4 |
|
Load switch mechanical life |
Time |
10000 |
|
Load switch electrical life |
Time |
10000 |
◆ Technical parameters of load switch (Unit C)
|
Item |
Unit |
Data |
|
Rated current |
A |
125 |
|
Rated short-circuit break current |
KA |
31.5 |
|
Rated short-circuit closing current |
KA |
80 |
|
Rated handover current |
A |
3150 |

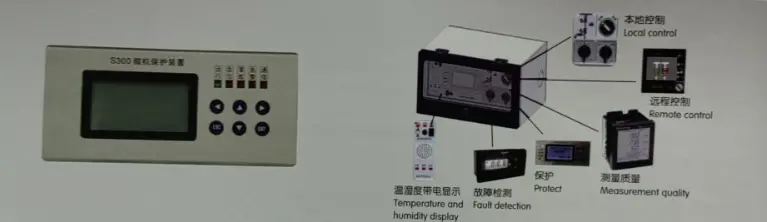

● The intelligence terminal of High Voltage Ring Network Cabinet
KXSGN-12-SIS3 series of High Voltage Ring Network Cabinet adopts multifunctional intelligent protector terminal, which is a new generation of multifunctional operation control and protection terminal equipment developed by KEXR, integrating intelligent operation control, primary circuit simulation reality, microcomputer relay protection, measurement, temperature and humidity control, high voltage live display, cable fault monitoring, remote monitoring and other functions. Its appearance is exquisite and beautiful, which simplifies the switch cabinet panel, reduces the overall volume of the solid insulation cabinet, effectively improves the external installation efficiency and improves the quality of switchgear.
