GN19 Type Indoor HV Disconnector

● Product overview

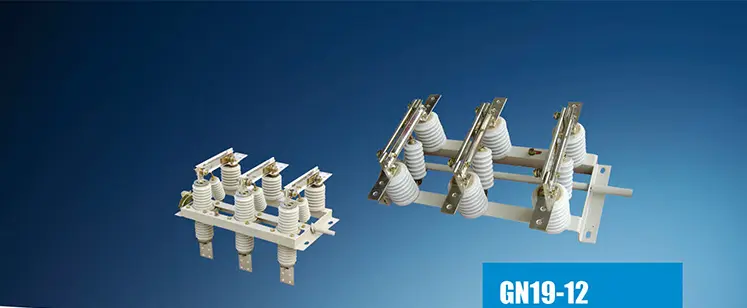

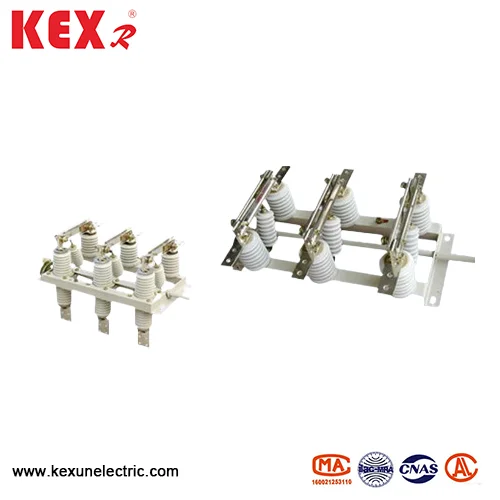

Gn19-12 type indoor HV disconnector is a three-pole type, which is composed of chassis, rotating shaft, lever, porcelain post insulator, knife and wiring board. The rotating shaft is placed on the underframe, and three pairs of levers are welded on it. The levers are connected with the knife necklace through tie rod porcelain insulators. The rotating shaft extends out of the chassis, and any section of it can be connected with the operating mechanism. Type c is through the wall. Where C1 represents rotation on the wall side; C2 indicates that the break is on the wall side; C3 indicates that both sides are on the wall side. At the same time, Kexun also has many derivative products for customers to choose from, such as anti-fouling, plateau type and display type.

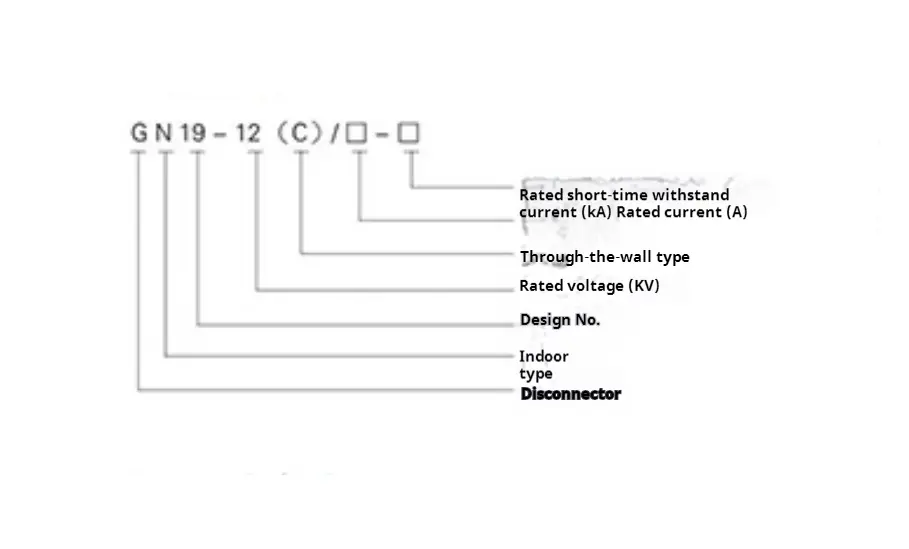

● Model meaning of the GN19 Type Indoor HV Disconnector,

● GN19 Type Indoor HV Disconnector Using conditions

◆Ambient temperature: Temperature around of The GN19 Type Indoor HV Disconnector

Should be -25~40℃

◆Humidity: the maximum average relative humidity is ≤ 95% per day and ≤ 90% per month.

◆Altitude:The GN19 Type Indoor HV Disconnector should be installed at an altitude below

1000m.

◆Seismic capacity: ≤8

◆The surrounding air should be free from obvious pollution such as corrosive, combustible gas and water vapor, and there should be no frequent violent vibration.

● Technical parameters of The GN19 Type Indoor HV Disconnector
