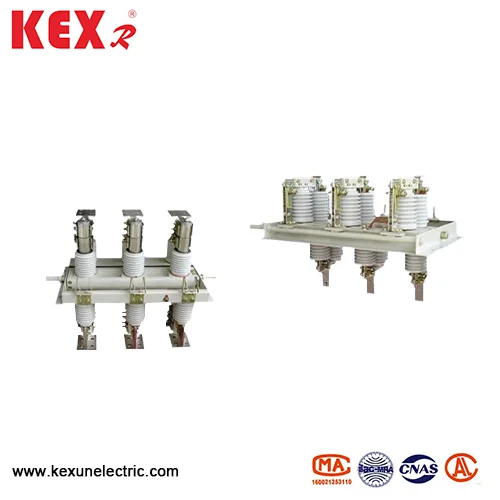

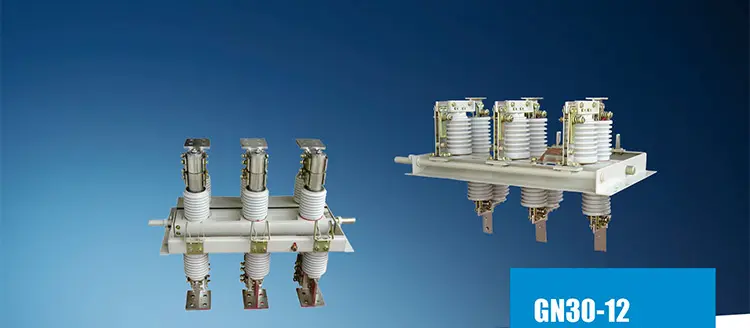

GN30 Type Indoor Rotary HV Disconnector
GN30 type indoor rotary HV disconnector produced by China manufacturer Kexun is a new type disconnector with rotary contact knife. The main structural formula is that two groups of insulators and contacts are fixed on the upper and lower planes of a three-phase common low frame, and the switch can be opened and closed by rotating the contact knife.
Model: GN30
Brand：KEXR
Model: GN30
Brand：KEXR
● Product overview
The GN30 type indoor rotary HV disconnector has compact design, small occupied space and insulation. Strong ability, easy installation and adjustment, its performance meets the requirements of GB1985-89 "AC high-voltage isolating switch and grounding switch", and it is suitable for indoor systems with rated voltage below 10 kV AC 50Hz. It is used to open and close the circuit when there is voltage and no load. It can be used together with high-voltage switchgear or independently. The GN30 type indoor rotary HV disconnector can fully benchmark ABB OT16F1 type and Siemens 8DH10 type product.
● Using conditions
◆Humidity: the maximum average relative humidity is ≤ 95% per day and ≤ 90% per month.
◆Altitude:The GN30 type indoor rotary HV disconnector should be installed at an altitude below
2000m.
◆Seismic capacity: ≤8
◆The surrounding air of GN30 type indoor rotary HV disconnector should be free from obvious pollution such as corrosive, combustible gas and water vapor, and there should be no frequent violent vibration.

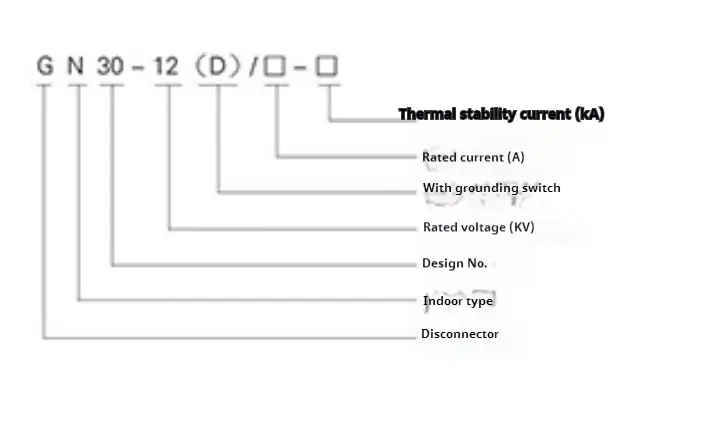

● Model meaning
◆ Meet the standard
IEC60265、IEC62271、GB3804、GB16926 etc..

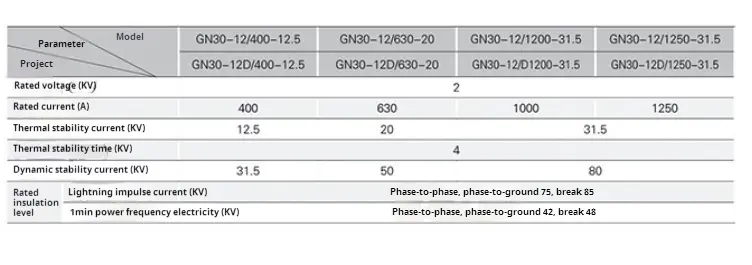

● Technical parameters of The GN30 type indoor rotary HV disconnector
