High-Voltage Switchgear

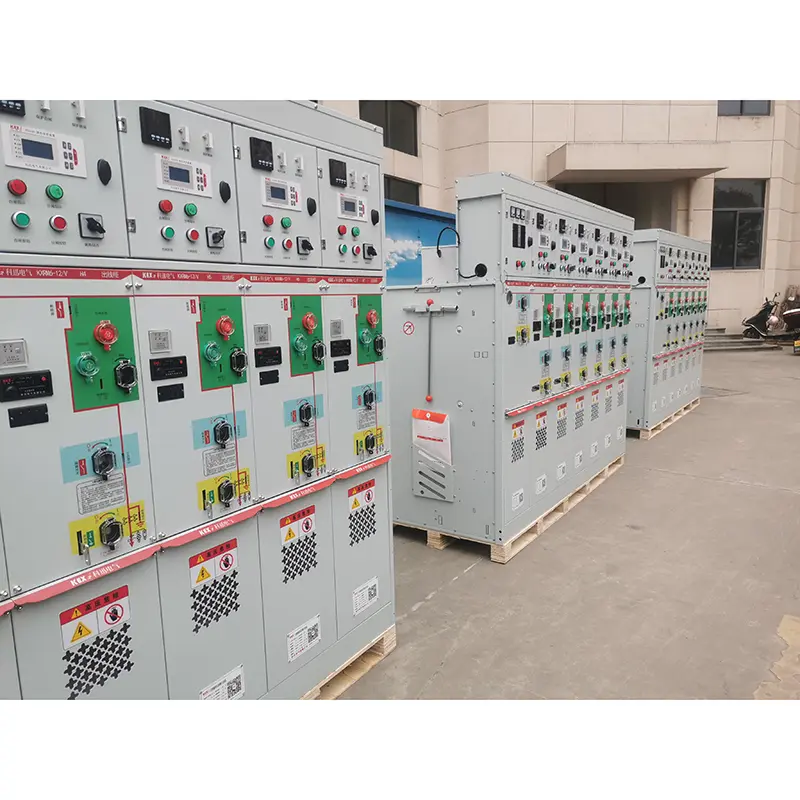

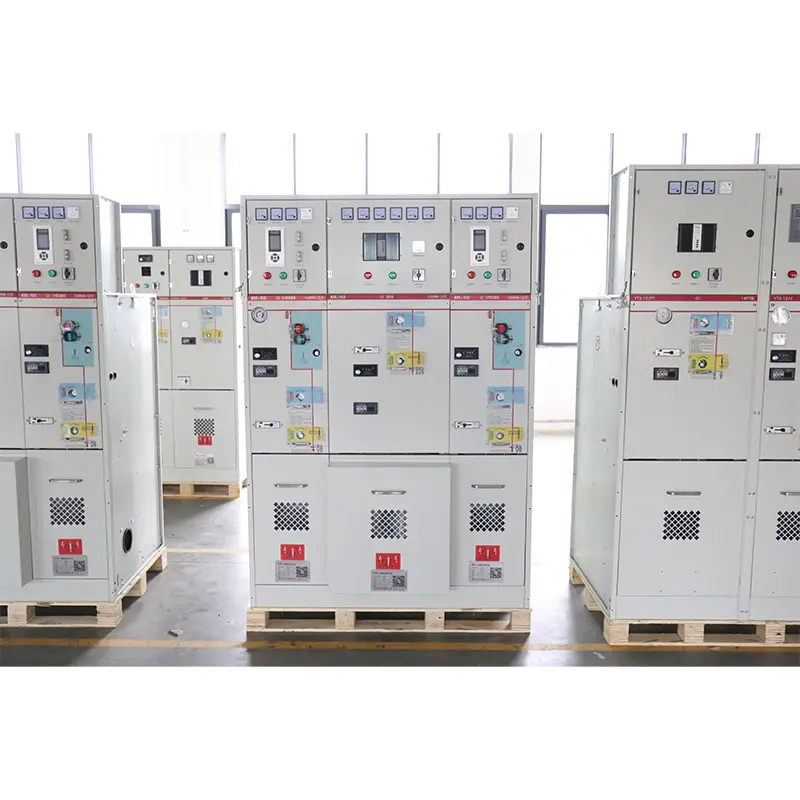

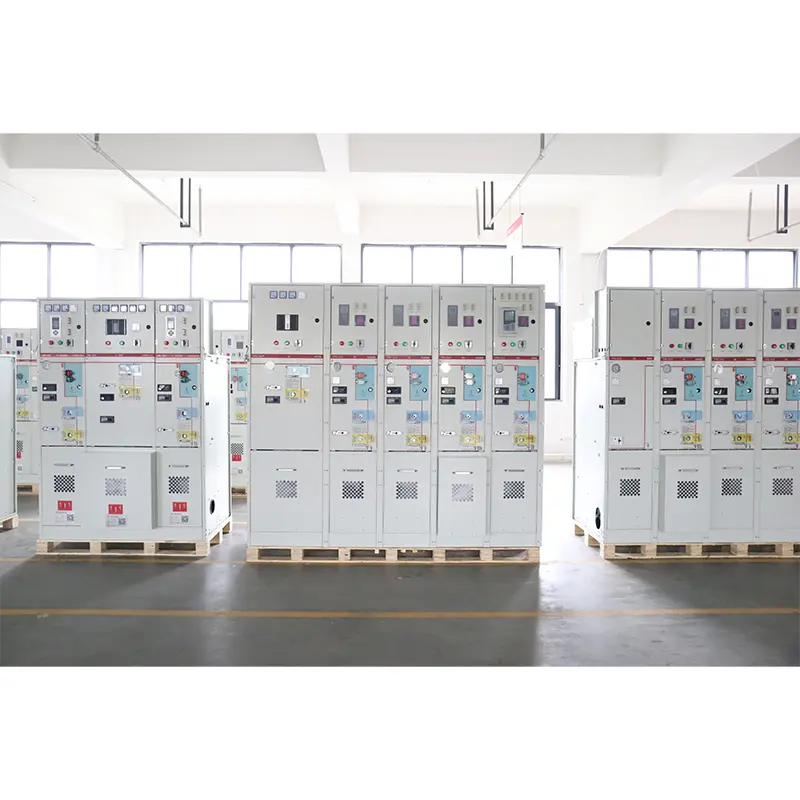

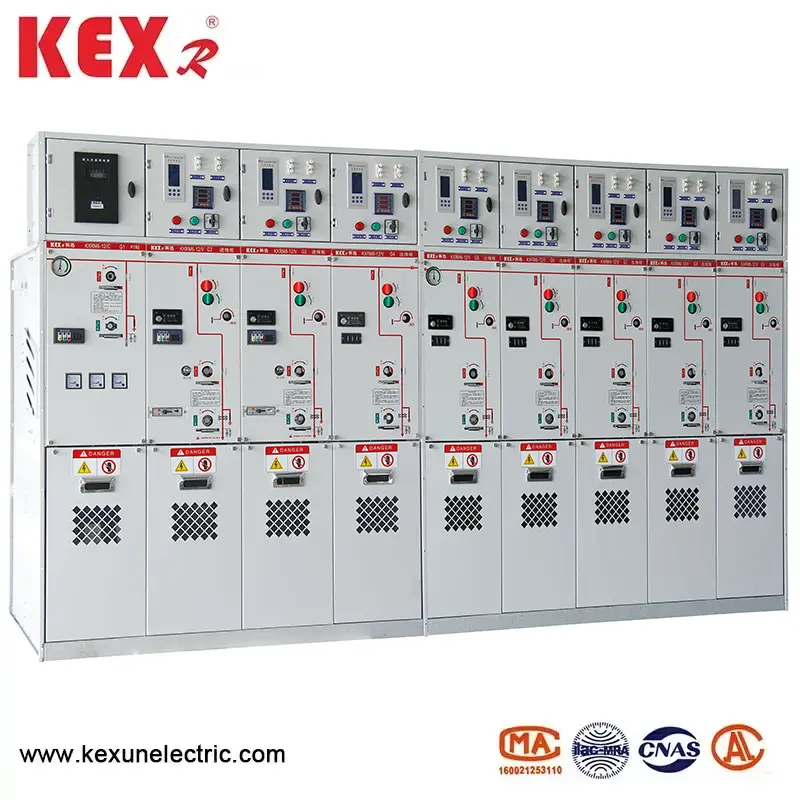

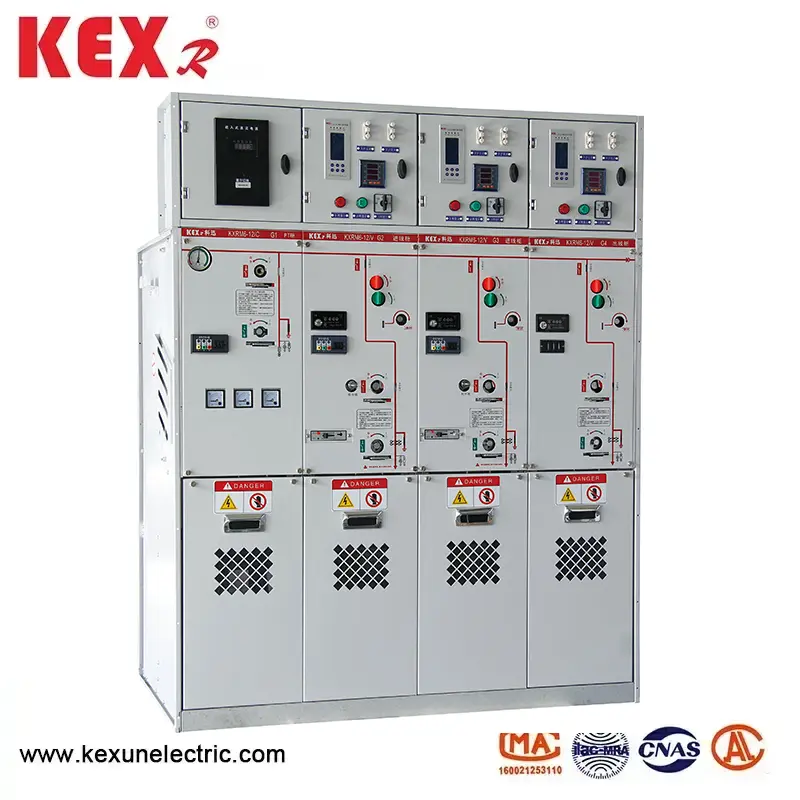

● Main features of KXRM 6-12 Type High-Voltage Switchgear

▶ Voltage level: 6~12kV (suitable for medium voltage distribution system).

▶Structure type: metal enclosed, modular design, usually using SF6 insulation or vacuum arc extinguishing technology.

▶ Application scenario: Urban distribution network ring network power supply Power distribution in industrial parks and communities Substation outlet and switching station

▶ Main functions: Load switch (with fuse protection)

Circuit breaker unit (optional)

Cable inlet and outlet, metering, monitoring and other functional modules can be selected.

●KXRM 6-12 Type High-Voltage Switchgear Using conditions

High-Voltage Switchgear is suitable for various environments such as high and low temperature (+40℃~-40℃), humidity, dust, salt pollution, mines and high altitude (l000). Short-term immersion in water within 24 hours does not affect the use.

Note: If the altitude is higher, please indicate the specific altitude to KEXR

●Standards

The High-Voltage Switchgear meets below standards

◆International standards

IEC60056, IEC60298, IEC60129, IEC60420, IEC60265, IEC60694, etc.

◆China standards

GB3804, GB3906, GB11022, etc.

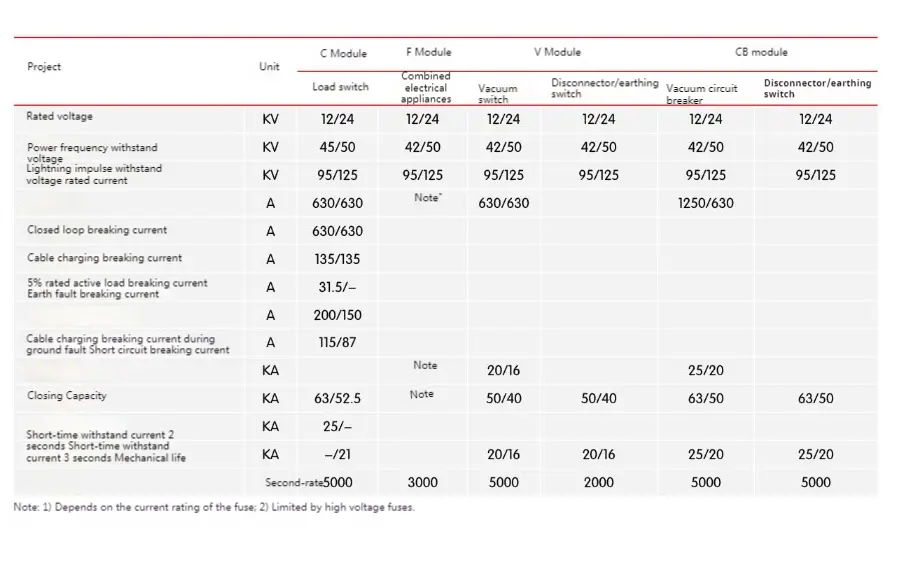

●Technical parameters of the High-Voltage Switchgear

Each module of KXRM6 High-Voltage Switchgear has the following configuration

1.D cabinet configuration See "Cable Connection Module without Grounding Knife" for standard configuration and characteristics.

2. Configuration of C cabinet See "Load Switch Module" for standard configuration and characteristics. 3.F cabinet configuration See "Vacuum Switch Module" for standard configuration and characteristics.

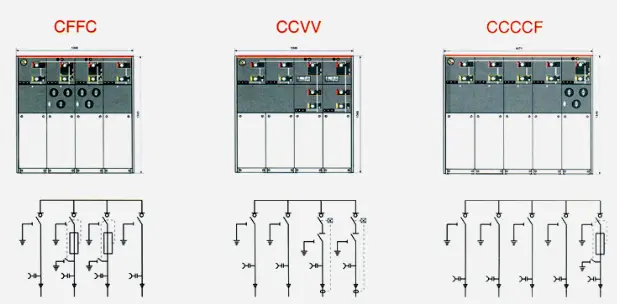

The KX-RM6 standard combination also provides the following configurations

1. Capacitive voltage indicator of incoming bushing

2. Each air chamber is equipped with a pressure gauge for monitoring SF6 density.

3. Lifting lug

4. Operating handle

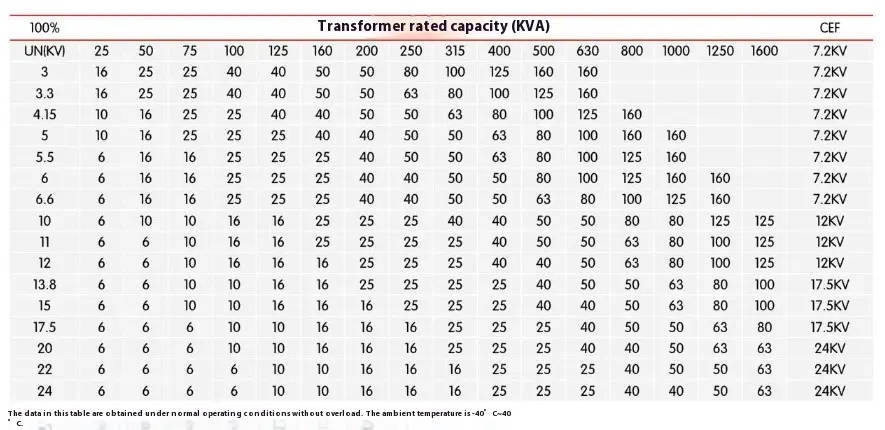

●Fuse and transformer comparison table
