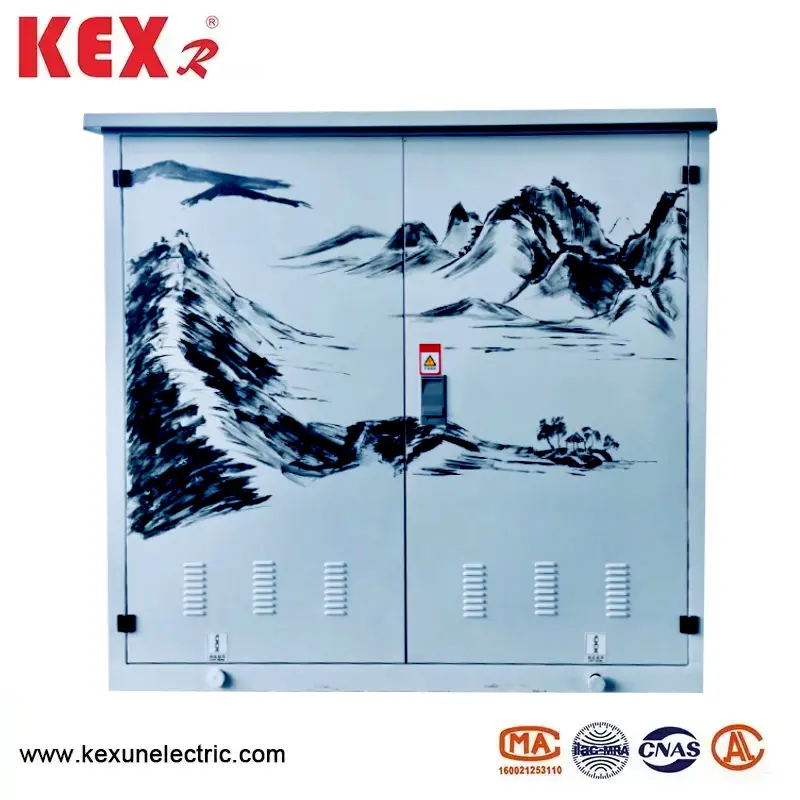

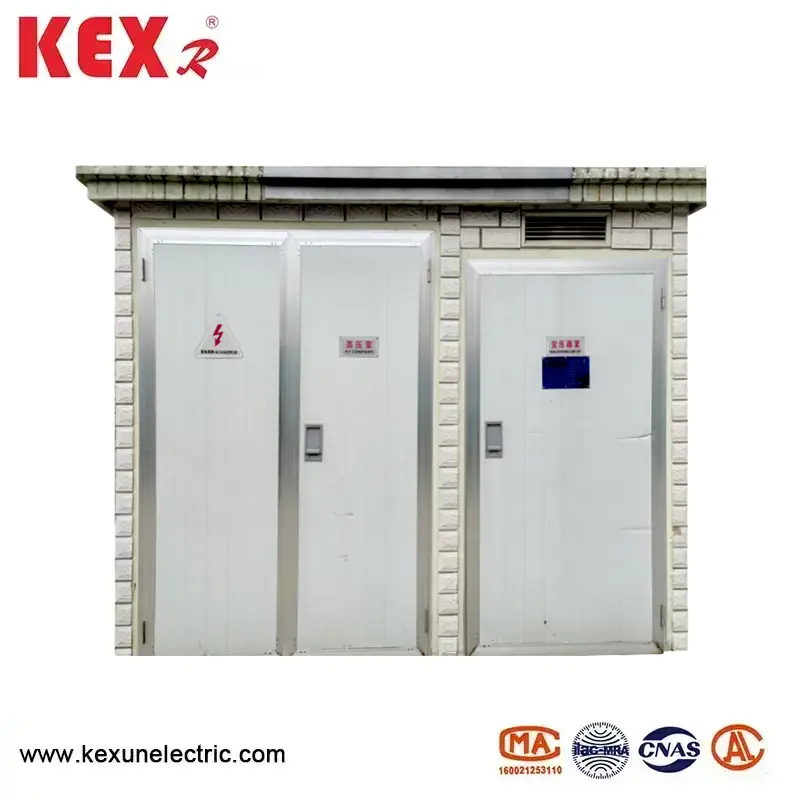

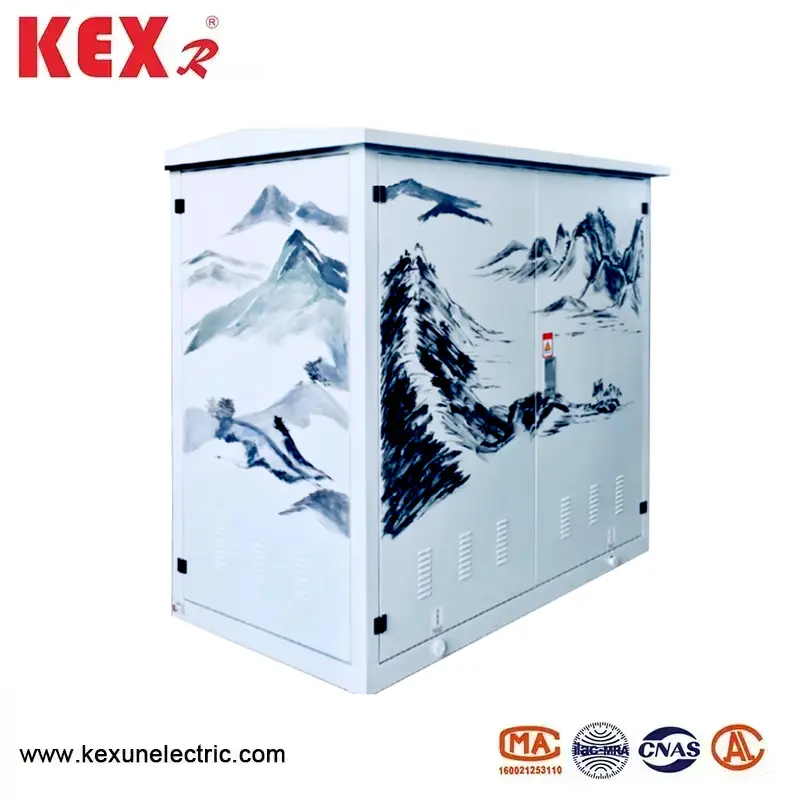

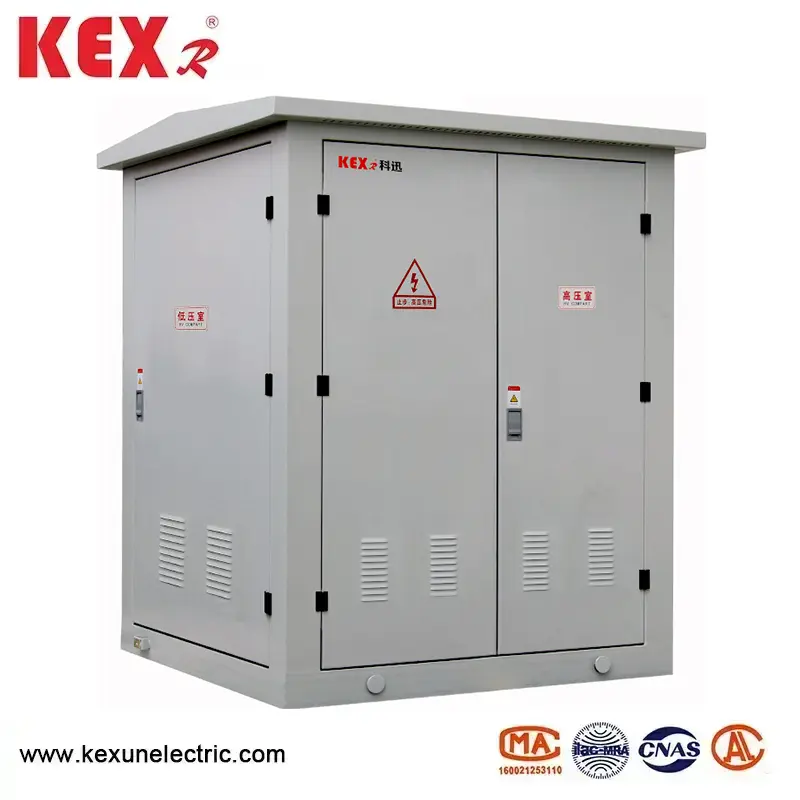

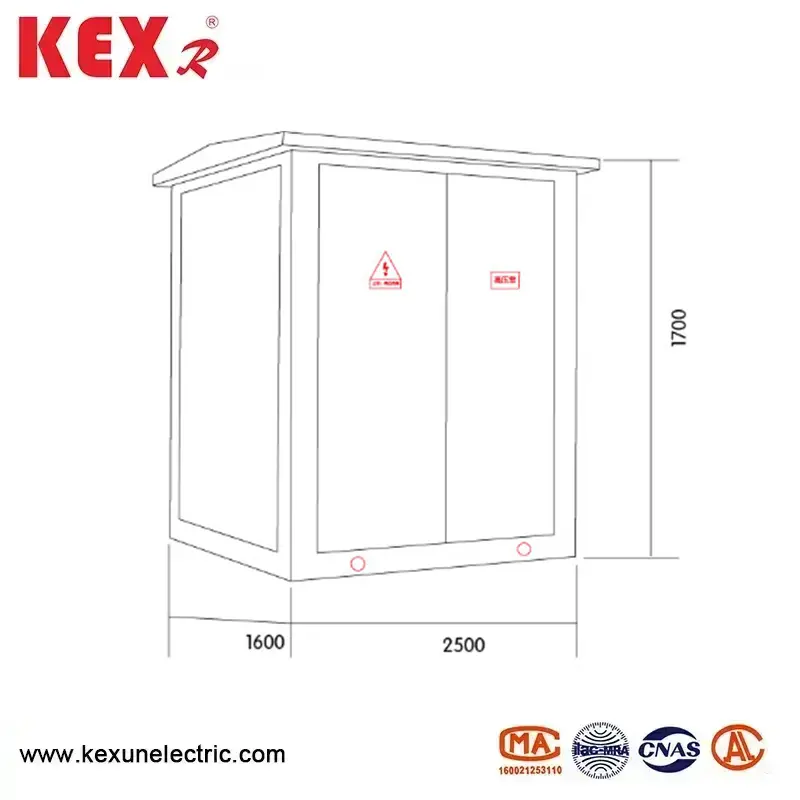

3phase Pad-mounted Substation
3phase pad-mounted substation produced by KEXR, a professional power transmission and distribution supplier in China, is a compact and modular power equipment suitable for urban power distribution, industrial parks, new energy (photovoltaic/wind power) and other scenarios. Compared with the traditional substation, it is smaller and more flexible to install.
Model:YB-12
Brand：KEXR
Model:YB-12
Brand：KEXR
● Product overview
3phase pad-mounted substation is more flexible and convenient to use than civil substations, and is widely used in urban network reconstruction of high-rise buildings, residential quarters, industrial parks, commercial centers, airports, railway terminals, schools, a mining enterprise and other places.
● Functions and characteristics of YB-12 type 3phase pad-mounted substation

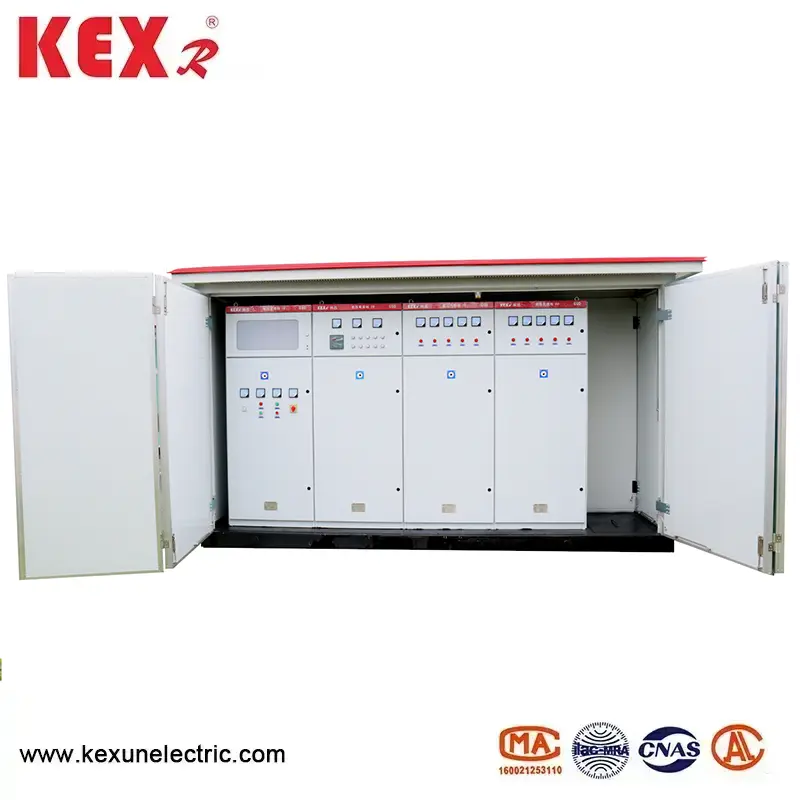

Pad-mounted substation high-voltage chamber is composed of high-voltage load switch, high-voltage fuse and lightning arrester, which can stop power transmission and prevent overload and short circuit at the same time; The low-voltage chamber is composed of low-voltage air switch, current transformer, ammeter and voltmeter. 3phase pad-mounted substation has advanced and reliable technology, and the boxes all adopt advanced processing technology, which has good corrosion resistance and wear resistance. It has the advantages of flexible combination, convenient transportation, installation and construction, low cost, no pollution and safe and reliable operation.
● Using conditions
◆ The altitude does not exceed 4000m
◆ Ambient temperature:-25℃-40℃
◆ Relative humidity: the daily average value is not more than 95%, and the monthly average value is not more than 90%
◆ Installation place: a place without fire, explosion danger, conductive dust, chemical corrosive gas and violent vibration.
Note：If the above conditions are exceeded, users can negotiate with KEXR
● Performance parameter tables
◆ Technical parameters of load switch
|
Serial Number |
Item |
Unit |
FN12-12 |
FN25-12 Vacuum load switch |
|
1 |
Rated voltage |
kV |
10 |
|
|
2 |
Max operating voltage |
kV |
12 |
|
|
3 |
Rated frequency |
Hz |
50 |
|
|
4 |
Rated current |
A |
630 |
|
|
5 |
Rated breaking load current |
A |
630 |
|
|
6 |
Thermal stable current |
kA/S |
20/2 |
20/4 |
|
7 |
Dynamic stable current |
kA |
50 |
|
|
8 |
Short circuit closing current （peak value） |
kA |
50 |
|
|
9 |
Full load breaking times |
Time |
20 |
10000 |
|
10 |
Mechanical life |
Time |
2000 |
10000 |
|
11 |
1Min power frequency withstand voltage (phase to ground) |
kV |
42 |
|
|
12 |
Lightning impulse voltage(phase to ground) |
kV |
72 |
|
◆Technical parameters of High voltage fuse
|
Serial Number |
Rated voltage (kV) |
Rated current (A) |
Break current (A) |
Fuse rated current (A) |
|
|
UK model |
CN model |
||||
|
SDL❈J |
XRNT-12 |
12 |
40 |
31.5 |
6.3, 10, 16, 20, 25, 31.5, 40 |
|
SFL❈J |
12 |
100 |
31.5 |
50, 63, 71, 80, 100 |
|
|
SKL❈J |
12 |
125 |
31.5 |
25 |
|
◆Technical parameters of Low voltage circuit breaker
|
Model |
Release form |
Release rated current |
On-off ability kA(AC 380V) |
|
DW15-630 |
Thermoelectromagnetic type |
315, 400, 630 |
40 |
|
DW15-1000 |
Thermoelectron type |
630, 800, 1000 |
50 |
|
DW15-1600 |
1600 |
50 |
|
|
DW15-2500 |
1600, 2000, 2500 |
60 |
|
|
CW1-2000 |
Intelligent type |
630, 800, 1000, 1250, 1600, 2000 |
65(80) |
|
CW1-3200 |
2000, 2500, 3200 |
100 |
