Landscape Buried Box Type Cabinet

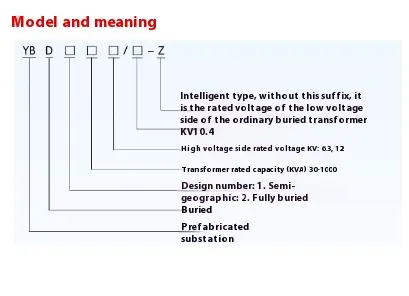

● Model and meaning

● Product overview

Landscape Buried Box Type Cabinet is mainly composed of underground transformers and outdoor switchgear with advertising light boxes. Underground Cabinet is a new type of compact substation equipment, which is composed of transformer, off-pressure load switch and fuse. It is installed in the pit, does not occupy the surface space, and can be submerged in water for a period of time. The outdoor switch equipment of advertising light box is a mixed structure integrating billboards and outdoor switch equipment, which is installed on the ground. The interior of the box is a low-voltage switch cabinet with advertising light boxes on both sides, which has extreme visual effects.

Landscape Buried Box Type Cabinet conforms to the concept of urban ecological design, occupies a small area and beautifies the environment. It is suitable for urban traffic trunk roads, residential areas, airports, stations, off-highway and other places, and will become the transformation of urban distribution network equipment. Compared with the traditional box transformer, it has the following obvious advantages:

◆ High Reliability

The external filling of the underground transformer box used in the Landscape Buried Box Type Cabinet is made of anti-corrosion stainless steel, which is fully sealed. The connection mode of waterproof, fully sealed, fully insulated and fully shielded from the low-voltage inlet and outlet lines ensures the anti-corrosion and sealing ability of the Landscape Buried Box Type Cabinet. The overall protection level reaches IP68. It can be immersed in water for a short time.

◆ Energy Conservation

Landscape Buried Box Type Cabinet preferred for buried box transformers are low-loss products, and low-loss transformers such as S11 series, S13 series and SBH15 series can be selected according to the user's supply and demand.

◆ Denoise

As we all know, the main factor that affects the surrounding residents of box-type substation can be said to be the noise of transformer. The sound source of the transformer mainly comes from the iron core. The height of the transformer installed in the common box transformer is generally about 1.2m from the ground. If the box transformer is installed near the residential window, its noise will inevitably spread into the residential room in the dead of night, which will affect people's sleep. Once the transformer or box transformer is installed underground as a whole, its noise can be obviously reduced, which has little effect on residents.

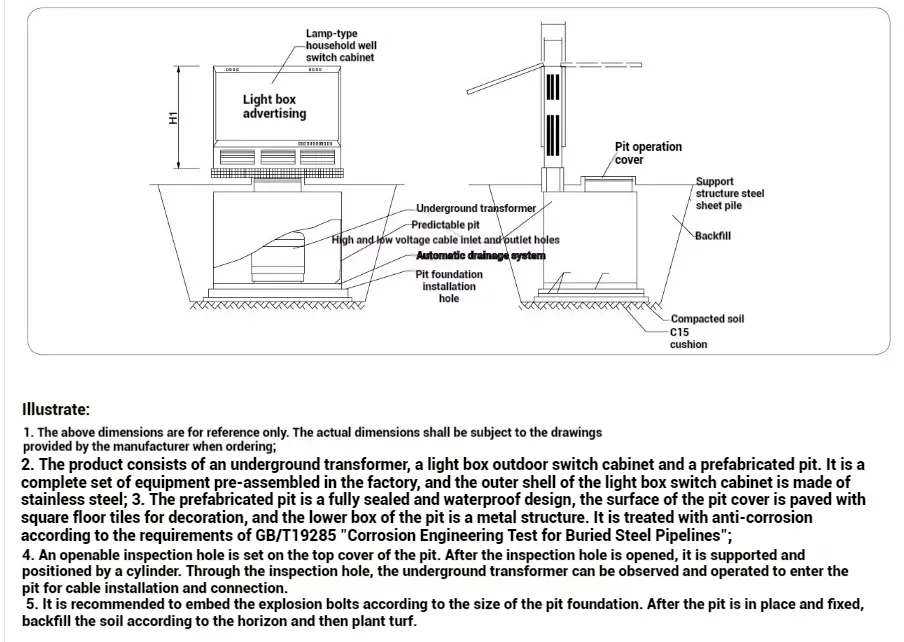

● Landscape Buried Box Type Cabinet Installation Diagram
