Landscape Buried Box Transformer

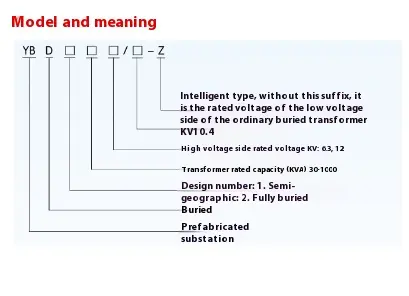

YBD-12 Landscape Buried Box Transformer is a buried type transformer which is very consistent with the concept of urban ecological design.,It is produced by KEXR, a supplier in China, and is a new type of compact substation equipment which is combined by outdoor switchgear ,transformer, off-pressure load switch and fuse.
YBD-12 Landscape Buried Box Transformer is a kind of compact power transformation and distribution equipment that partially or completely buries high-voltage switchgear, transformers, low-voltage distribution devices and other major electrical equipment underground. It combines the functional advantages of traditional box-type transformer with the space-saving characteristics of underground installation, and is widely used in urban distribution networks, landscape areas, residential quarters and other places with high requirements for beautiful environment, noise control and space utilization.
◆ Product components
YBD-12 Landscape Buried Box Transformer usually consists of the following parts.
1. Underground part
▶ Buried transformer: Dry transformer or oil-immersed transformer is usually used (special sealing and waterproof design is required).
▶ High-voltage unit: including high-voltage incoming cabinet, load switch, fuse, etc., and part of the design adopts fully insulated and fully sealed structure.
▶ Low-voltage unit: including low-voltage distribution cabinet, intelligent monitoring system, etc., and some models integrate automatic protection devices.
2. Ground part
▶ Ground power distribution cabinet (optional): Some models keep ground low-voltage power distribution cabinet for easy operation and maintenance.
▶ Manhole/ventilation shaft: used for equipment maintenance, heat dissipation and cable access.

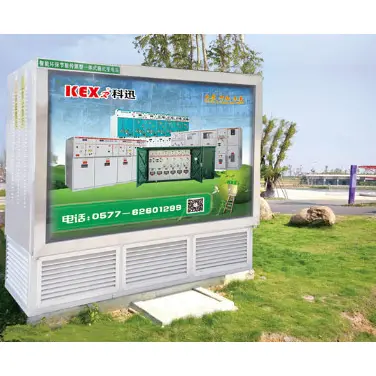

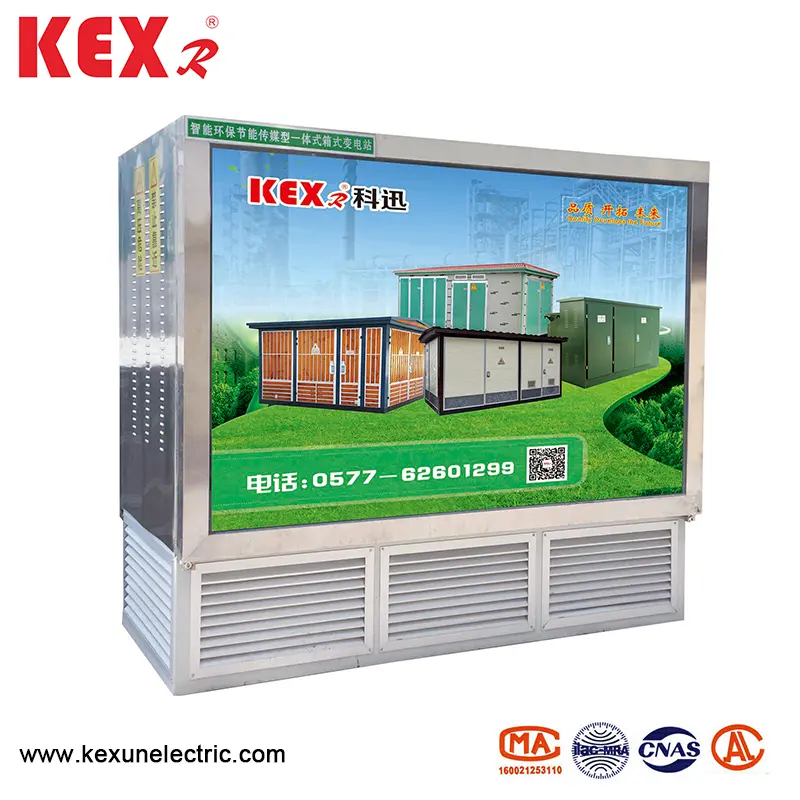

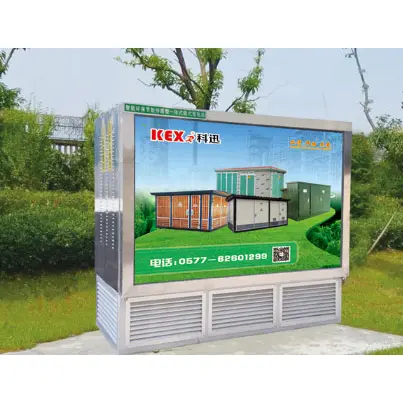

▶ Landscape shell (optional): it can be customized as green box, artistic modeling, etc., and integrated with the environment.
◆ Core characteristics
YBD-12 Landscape Buried Box Transformer the main characteristics are as follows
|
l Characteristics |
Explaining |
|
l Strong concealment |
Buried underground, it occupies less ground, and is suitable for sensitive environments such as landscape areas and commercial areas. |
|
l Waterproof and moisture proof |
Adopt IP68 protection level, sealing structure and drainage system to adapt to underground humid environment. |
|
l Low noise |
Landscape Buried Box Transformer can effectively reduce the noise of transformer operation (≤45dB), which is suitable for residential areas, hospitals and other places. |
|
l Safe |
Fully enclosed design, electric shock prevention, explosion prevention and fire prevention (optional monitoring and fire extinguishing device). |
|
l Energy saving and environmental protection |
Underground constant temperature environment can reduce heat dissipation energy consumption, and green energy schemes such as photovoltaic roof can be selected. |
|
l Intelligent monitoring |
Support remote monitoring of temperature and humidity, load, fault alarm, etc. (Internet of Things module is required) |
◆ Typical application scenarios
▶ Urban public space: parks, squares, pedestrian streets and other landscape areas.
▶ Residential/commercial area: solve the problem that the traditional box transformer occupies a large area and affects the appearance.
▶ Transportation facilities: subway station, charging station, street lamp distribution, etc.
▶ Temporary power consumption: construction sites, exhibitions and other occasions that need rapid deployment.
◆ Matters needing attention in type selection
▶ Geological conditions: To avoid the area where the groundwater level is too high or the soil is soft, waterproof evaluation is needed.
▶ Transformer capacity:The Landscape Buried Box Transformer capacity generally suitable for 50kVA~1600kVA, and heat dissipation should be strengthened for large capacity.
▶ Maintenance convenience: Maintenance access and hoisting space should be reserved during design.
◆ Compared with the traditional box transformer
|
Item |
The Landscape Buried Box Transformer |
Traditional type transformer |
|
Installing method |
Mainly underground |
Ground installing |
|
Space occupation |
Suitable for narrow space, hardly occupying the ground. |
Require a large ground area |
|
Environment Influence |
Low noise and no visual pollution. |
Noise and electromagnetic radiation may be generated. |

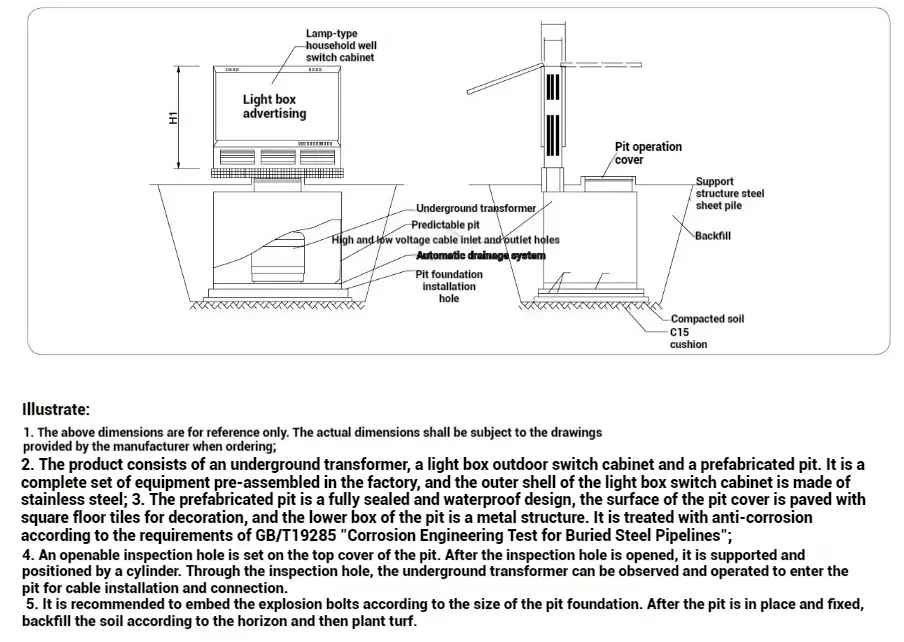

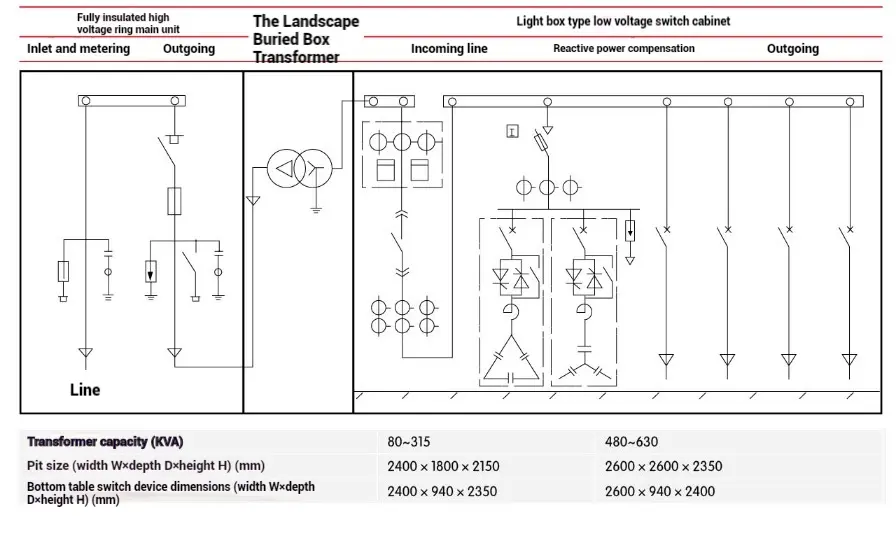

● Installation and dimension drawing
On the whole, The Landscape Buried Box Transformer is an intensive, intelligent and environment-friendly distribution solution, which is especially suitable for the demand of fine urban construction and green and low-carbon development. Its core advantage lies in saving space, improving aesthetics and reducing noise, but it needs to be comprehensively selected according to geological conditions, operation and maintenance requirements and costs. With the development of smart cities in the future, buried box substation will become one of the important choices for distribution network upgrading.
