Air-Insulated Switchgear

●Main structure and function Of KXMR6-12 Type Air-Insulated Switchgear

◆Core components:

▶ Load switch: It is used to turn on and off the normal current (such as SF6 or vacuum load switch).

▶Fuse assembly: provide short-circuit protection (common in transformer protection circuit).

▶Grounding switch: ensure safe grounding during maintenance.

▶Instrument room: microcomputer protection device or monitoring module can be selected.

◆Typical scheme: modular combination of incoming line unit, outgoing line unit, metering unit and PT unit.

●Air-Insulated Switchgear Application scenario

▶Ring network power supply: as a node switch in double power supply or multi-power supply ring network system.

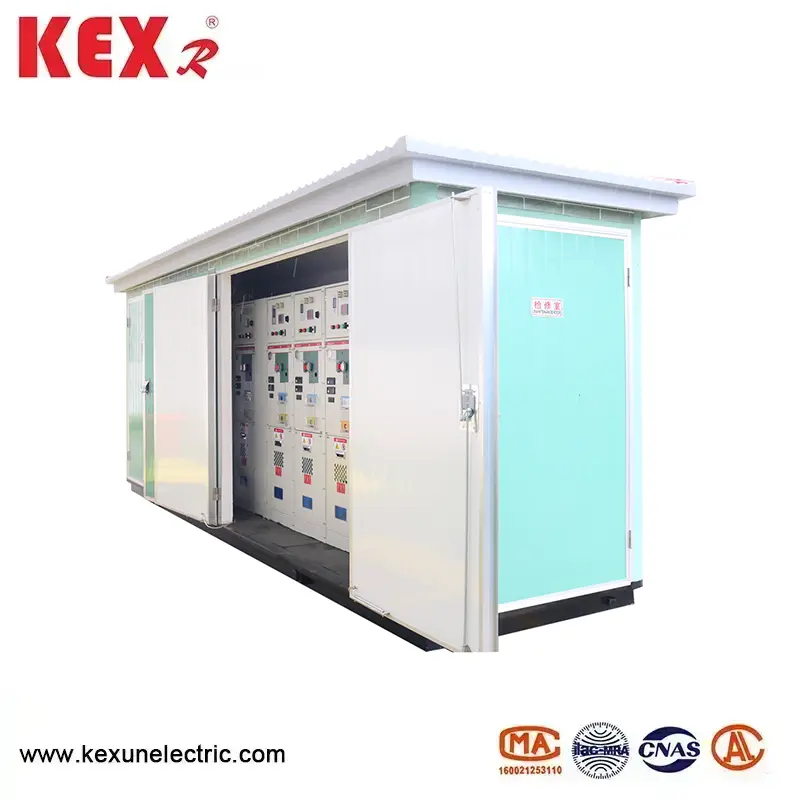

▶Terminal distribution: the distribution terminal of industrial and mining enterprises, commercial complexes and residential quarters.

▶New energy access: grid-connected control of distributed energy such as photovoltaic and wind power.

●Using conditions of Air-Insulated Switchgear

KXRM6 type Air-Insulated Switchgear is suitable for high and low temperature (+40℃~-40℃), humidity, dust, salt pollution, mines, high altitude (l000) and other environments. Short-term immersion in water within 24 hours does not affect the use.

Note: If the altitude is higher, please indicate the specific altitude.

● Stadards

KXRM6 type Air-Insulated Switchgear meets below standards

1.International standards

IEC60056, IEC60298, IEC60129, IEC60420, IEC60265, IEC60694, etc.

2. China standard

GB3804, GB3906, GB11022, etc.

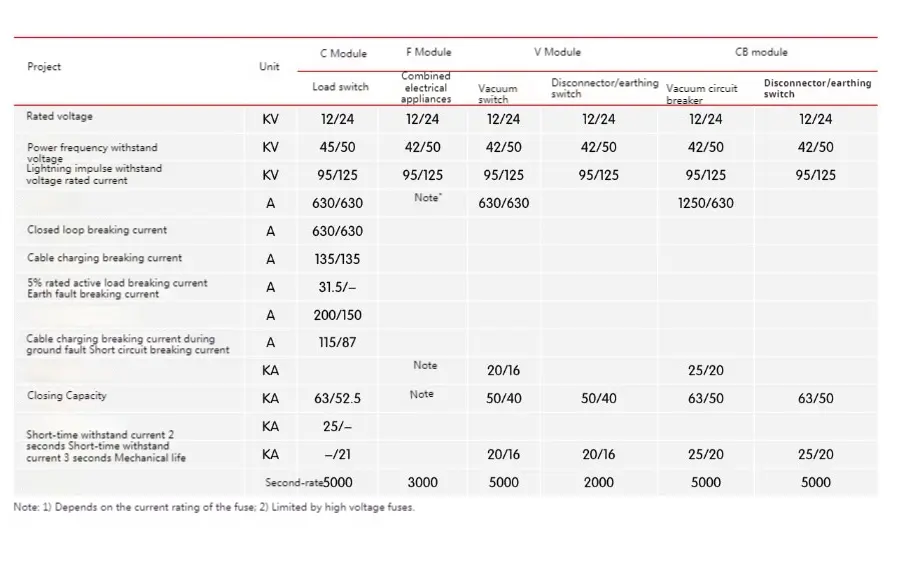

●KXRM6 type Air-Insulated Switchgear Technical Parameters Table

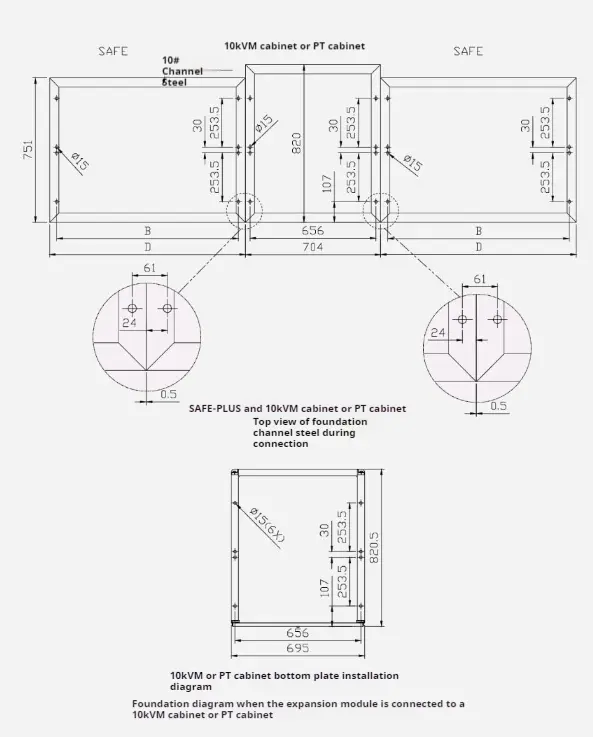

●Structure and dimensions of KXRM6 type Air-Insulated Switchgear
