DIN-Rail Power Relay
DIN-Rail Power Relay, produced by China manufacturer Kexun Electric, is a relay specially designed for industrial automation control. It is installed on DIN guide rail, which is convenient for quick installation and maintenance. They are suitable for high current and high voltage load control, and are widely used in power systems, mechanical equipment, automated production lines and other scenes.
Model: 58F
Brand：KEXR
Model: 58F
Brand：KEXR
● Product Characteristics of the DIN-Rail Power Relay
▶DIN-Rail Power Relay has strong structure ，strong impact resistance and long service life
▶60A Load switching current
▶Retaining bolt installation
▶DIN-Rail Power Relay can provide 1 set of contact conversion

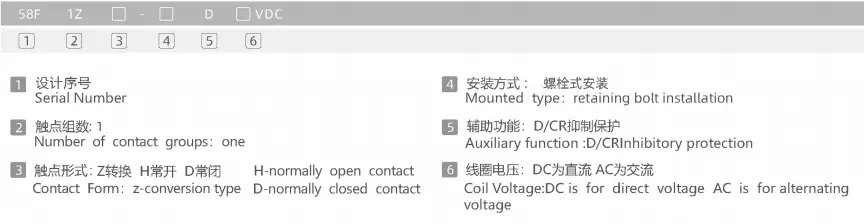

● Model Meaning of the DIN-Rail Power Relay
● DIN-Rail Power Relay Product performance data table
|
Contact resistance |
≤100mΩ |
|
Electrical life |
≥50000 |
|
Mechanical life |
≥1000000 |
|
Coil voltage |
DC:6-220V AC:6-380V |
|
Suction time |
≤25ms |
|
Release time |
≤15ms |
|
Between the same pole contacts |
1000VAC/1min(Leakage current 1mA) |
|
Between polar contacts |
/ |
|
Between contact and coil |
2500VAC/1min(Leakage current 1mA) |
|
Insulation resistance |
≥200MΩ(500VDC) |
|
Ambient temperature |
-25°C~ 55°C |
|
Ambient humidity |
35%~80%RH |
|
Atmospheric pressure |
86~ 106KPa |
|
Impact resistance |
10G(Sine half wave pulse:11ms) |
|
Vibration resistance |
10~55Hz Double amplitude:1.5mm |
|
Dimension |
68X47 X60mm |
|
Weight |
around 170g |

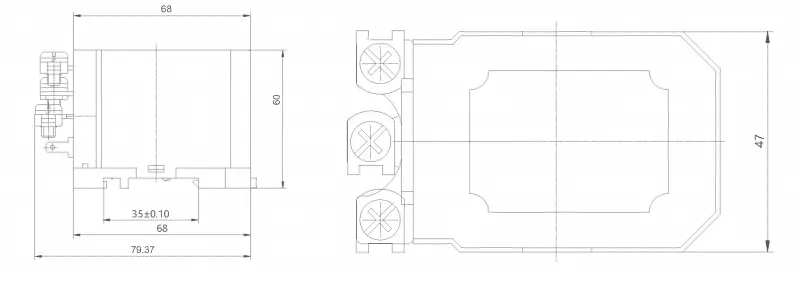

● Dimension of the DIN-Rail Power Relay
