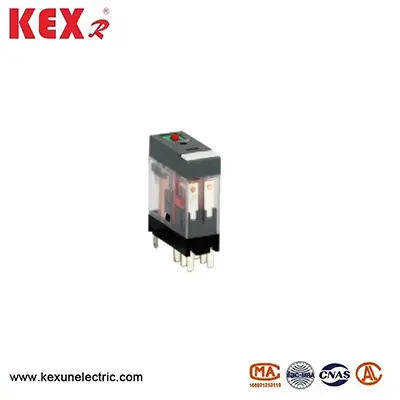

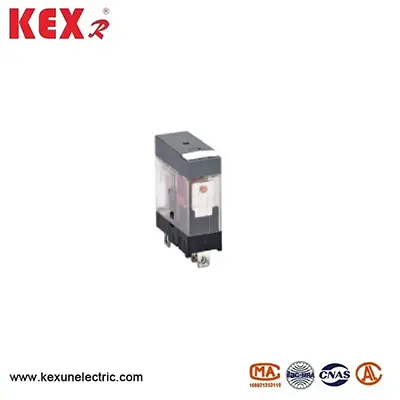

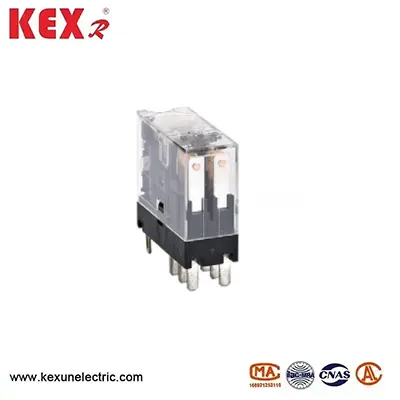

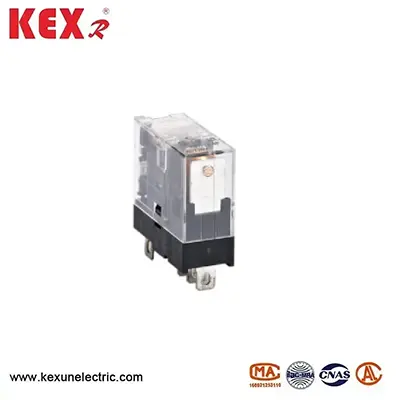

Power Electromagnetic Relay
The Power Electromagnetic Relay, which is specially produced by China manufacturer Kexun Electric, is specially designed for controlling heavy current and high voltage loads, and is suitable for harsh scenes such as industrial motors, power systems and new energy equipment.
Model:14F
Brand：KEXR
Model:14F
Brand：KEXR
● Product Characteristics of the 14F type Power Electromagnetic Relay
▶14F type Power Electromagnetic Relay has small size ,high sensitivity
▶14F type Power Electromagnetic Relay adopts Reasonable structure, wide use
▶Various specifications,can be equipped with indicator device

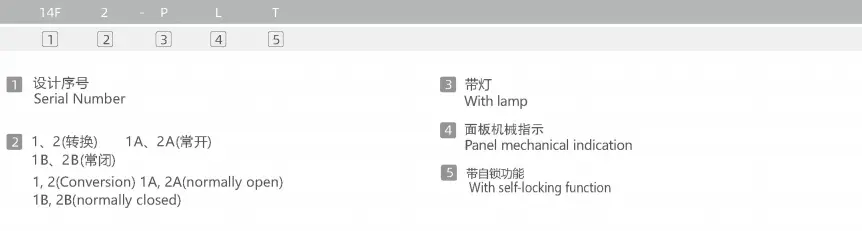

● Model Meaning of the Power Electromagnetic Relay

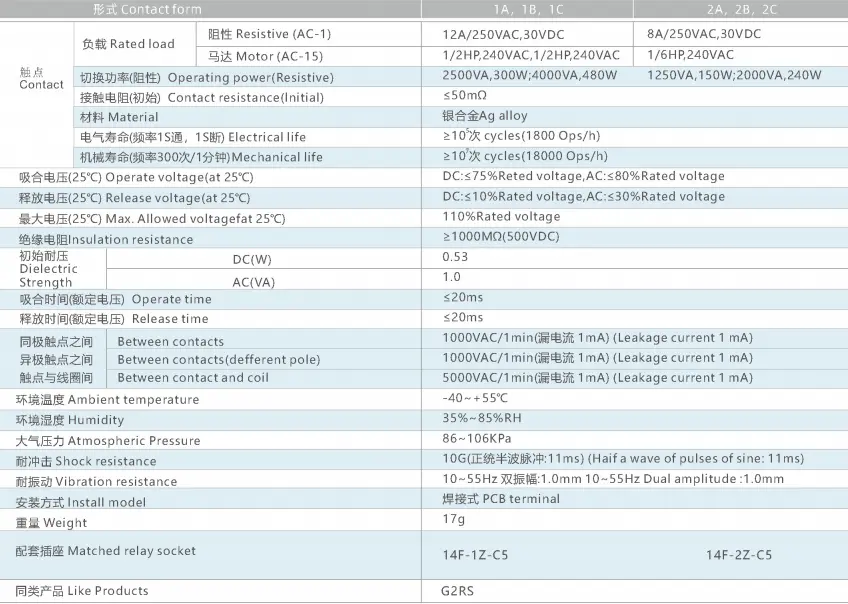

● 4F type Power Electromagnetic Relay Product performance data table
● 14F type Power Electromagnetic Relay Coil Type
|
Rated Voltage DC(V) |
3 |
5 |
6 |
9 |
12 |
18 |
24 |
36 |
48 |
110 |
|
Coil Resistance(Ω) ±10% |
17 |
47 |
68 |
150 |
270 |
610 |
1100 |
2440 |
4300 |
22800 |
|
Rated Voltage AC(V) |
6 |
12 |
24 |
48 |
110 |
220 |
|
|||
|
Coil Resistance(Ω) ±10% |
16 |
63 |
240 |
1085 |
5500 |
2100 |
|
|||

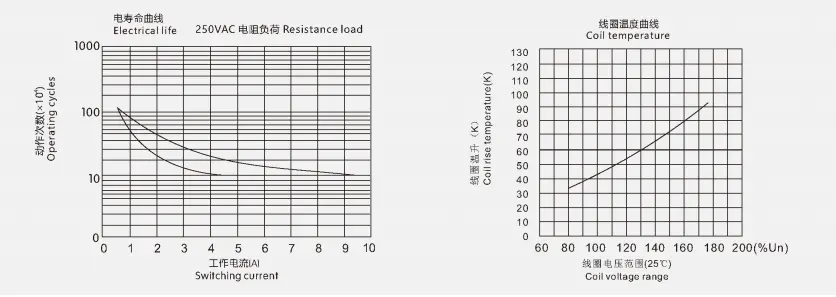

● 4F type Power Electromagnetic Relay Performance curve graph
● Dimensions of the 14F type Power Electromagnetic Relay
