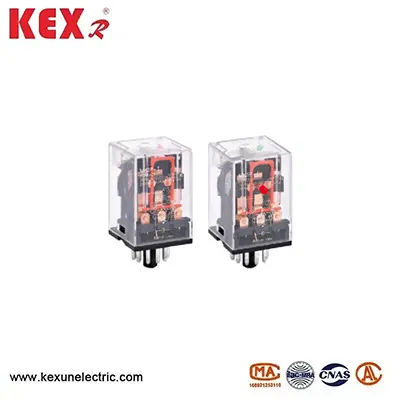

General-Purpose Relay
General-Purpose Relay, which is produced by China manufacturer Kexun Electric, is an electromagnetic switch device widely used in industrial control, household appliances and automation systems, and can control high-power loads (such as motors, lighting, heating equipment, etc.) through small current signals (such as 12V DC and 24V DC).
Model: MK
Brand：KEXR
Model: MK
Brand：KEXR

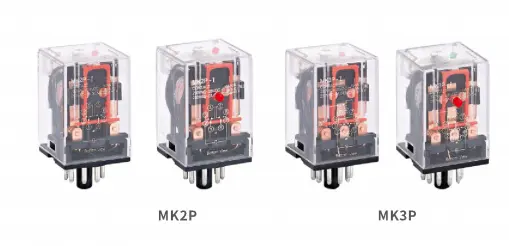

● Product Characteristics of the General-Purpose Relay
▶MK type General-Purpose Relay has Small size, light weight and high sensitivity and long service life
▶MK type General-Purpose Relay can provide 2 sets and 3 sets(10A)of contact conversion

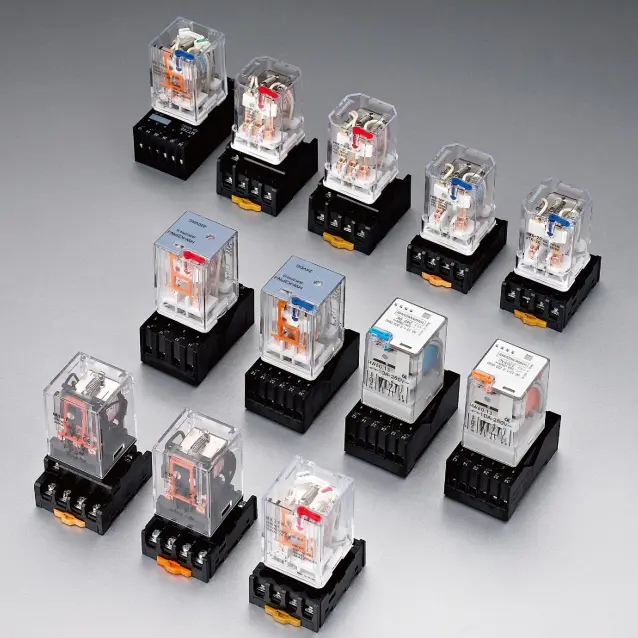

▶Socket mounted
▶MK type General-Purpose Relay can match the indicator lamp and doodie

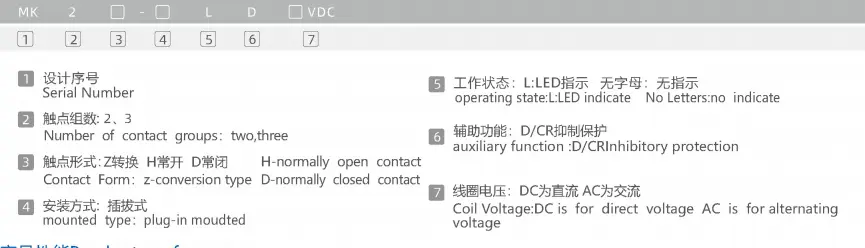

●Model Meaning of MK type General-Purpose Relay
● DIN-Rail Power Relay Product performance data table
|
Contact resistance |
≤100mΩ |
|
Electrical life |
≥50000 |
|
Mechanical life |
≥1000000 |
|
Coil voltage |
DC:6-220V AC:6-380V |
|
Suction time |
≤20ms |
|
Release time |
≤15ms |
|
Between the same pole contacts |
1000VAC/1min(Leakage current 1mA) |
|
Between polar contacts |
1500VAC/1min(Leakage current 1mA) |
|
Between contact and coil |
2500VAC/1min(Leakage current 1mA) |
|
Insulation resistance |
≥100MΩ(500VDC) |
|
Ambient temperature |
-25°C~ 55°C |
|
Ambient humidity |
35%~80%RH |
|
Atmospheric pressure |
86~ 106KPa |
|
Impact resistance |
10G(Sine half wave pulse:11ms) |
|
Vibration resistance |
10~55Hz Double amplitude:1.5mm |
|
Dimension |
35*35 *35mm |
|
Weight |
around 75g |

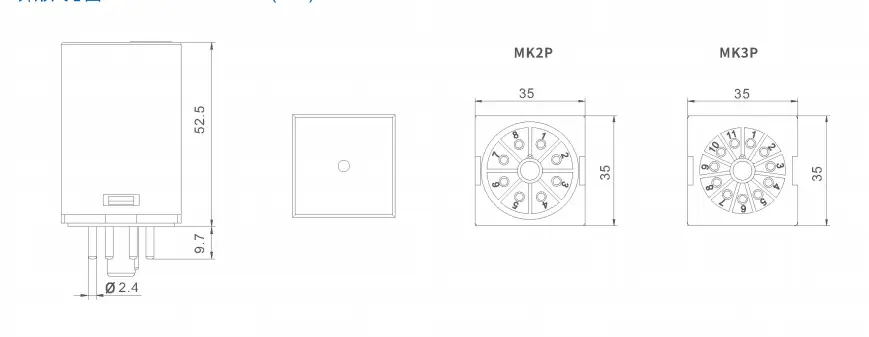

● Dimension of the DIN-Rail Power Relay
