Why Is A Photovoltaic Booster Box Transformer The Key To Building A Stable Photovoltaic System?

At a time when new energy is developing rapidly, system stability and energy efficiency have become the key to the success of photovoltaic projects. For large-scale photovoltaic power stations or industrial and commercial distributed systems, a core equipment - photovoltaic booster box transformer is indispensable to achieve stable grid connection and efficient transmission. What does it do? Why are more and more projects choosing it?

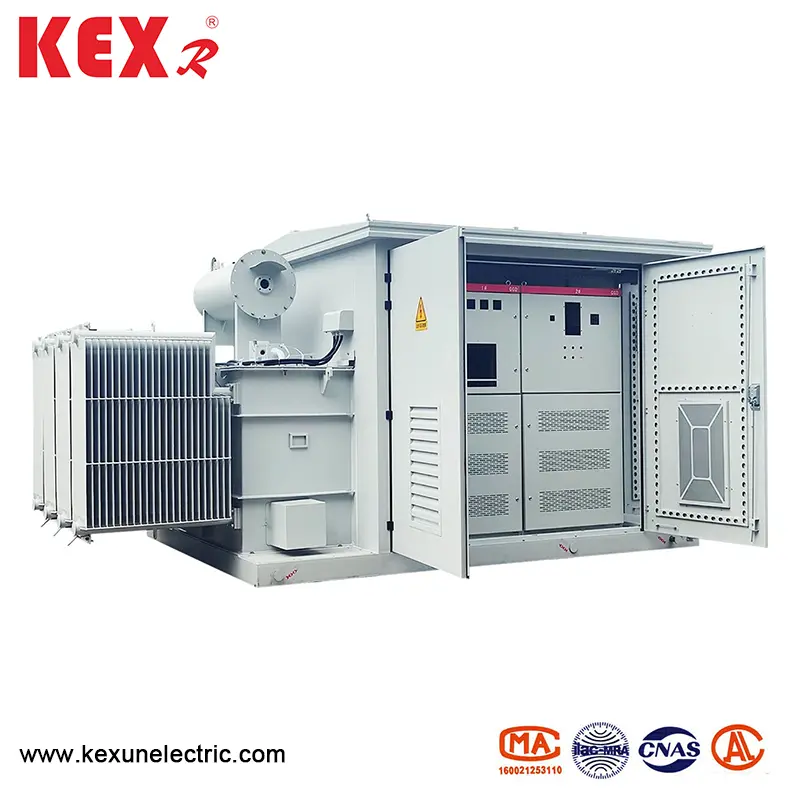

What Is A Photovoltaic Booster Box Transformer?

The photovoltaic booster box transformer is a prefabricated complete set of equipment that boosts low-voltage AC power to the grid-connected voltage level. It has a compact structure and is easy to transport. It usually integrates the following three parts:

1. Photovoltaic inverter (optional): Converts the DC power output by the photovoltaic module into AC power, and the general output voltage is 270V, 315V or 400V.

2. Boost transformer: Boosts the low-voltage AC power output by the inverter to the medium voltage level of 10kV, 35kV, etc. required by the grid.

3. High-voltage switchgear: Including circuit breakers, disconnectors and protection devices, used for system grid connection control and electrical protection.

Some equipment can omit the inverter and only be used for boosting and grid-connected protection, which is called "pure boost box transformer" in the industry.

What Practical Value Can It Bring To Customers?

Whether you are building a large-scale photovoltaic power station or an industrial and commercial rooftop photovoltaic system, the photovoltaic boost box transformer can bring significant advantages:

· Meet the grid-connected requirements: ensure that the output voltage meets the national or regional power grid standards.

· Improve system safety: The photovoltaic system is electrically isolated from the grid through the transformer to reduce the risk of failure.

· Multiple protection functions: It has multiple protection mechanisms such as overvoltage, overcurrent, short circuit, and island effect to ensure stable operation of the system.

· Intelligent monitoring: It can collect data such as voltage, current, and power in real time, and support remote monitoring and operation and maintenance management.

Why Is It Technically Reliable?

Modern photovoltaic systems have higher requirements for equipment performance, and photovoltaic boost box transformers are born for this purpose:

1. Efficient heat dissipation design: The equipment is equipped with natural ventilation or forced heat dissipation systems (such as fans and air conditioners) to ensure continuous operation without being affected by high temperatures.

2. High protection level: The shell protection level usually reaches IP54 and above, which is dustproof, moisture-proof, and salt spray-proof, and can adapt to a variety of harsh environments.

3. Low-loss materials: Amorphous alloys or energy-saving silicon steel sheets are selected to significantly reduce no-load losses and improve overall efficiency.

4. Smart grid-connected capability: Supports smart grid functions such as reactive power compensation (SVG) and harmonic suppression, and meets grid access standards.

Choosing a photovoltaic step-up box transformer is not only a technical selection but also a guarantee of system safety, long-term benefits, and grid-connected compliance. It helps project parties improve power generation efficiency while reducing operational risks and is one of the core equipment for achieving reliable grid connection of photovoltaic systems. If you are looking for a stable, efficient, and intelligent grid-connected solution for a new project or system upgrade, it is worth considering.
