Landscape Buried Box Type Substation

● Product overview

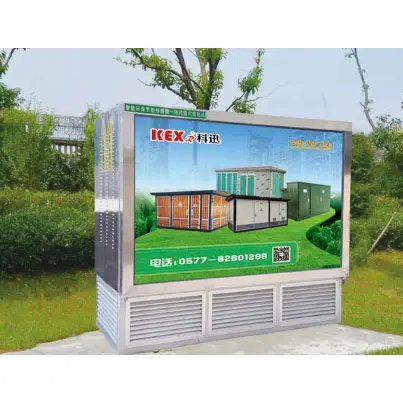

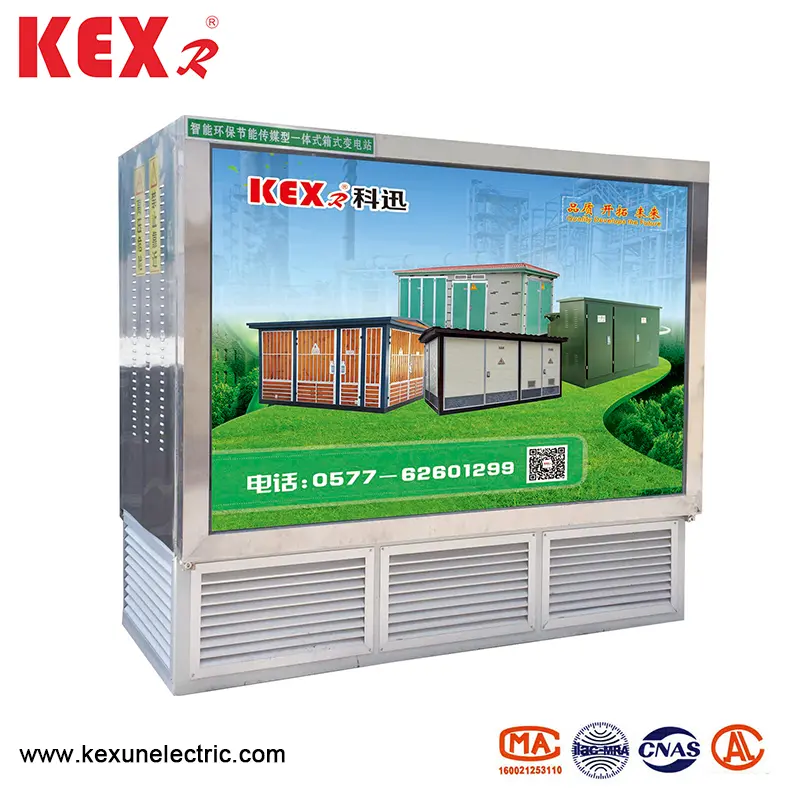

YBD-12 Landscape Buried Box Type Substation is composed of transformer, off-pressure load switch, fuse and advertising light box outdoor switch equipment. It occupies a small area and has a beautiful appearance. It is suitable for urban traffic trunk roads, residential areas, airports, stations, off-speed highways and other places.

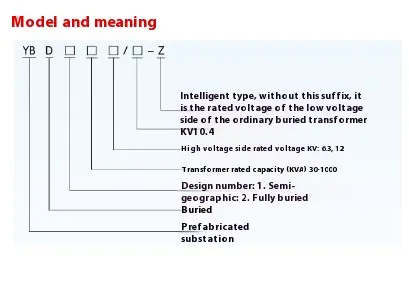

● Model meaning

● Advantages of Landscape Buried Box Type Substation

◆ High reliability

▶ Flexible configuration of high voltage protection. SF6 fully insulated ring network cabinet can be used for protection, and oil-immersed load switch+plug-in and backup fuser can also be used for full-range protection at the front end of underground transformer. When the transformer fails, it can quickly cut off the drop point without affecting the overall line operation.

▶ Waterproofing and drainage are considered in the design and manufacture of the foundation of the pit. The ventilation holes at the top have effective rainproof and waterproof functions, and the sides and bottom are treated with special waterproof materials. The cable inlet and outlet holes are all made of Roxek waterproof system to ensure that water seepage cannot invade. An internal and external automatic heat exchange system is installed in the pit, and an automatic drainage control system is installed at the bottom.

▶ YBD-12 Landscape Buried Box Type Substation can be submerged in water and can resist the flood disaster. All measures ensure the service life of the buried transformer for 20 years, and can realize maintenance-free and overhaul-free, which effectively improves the reliability of the power supply system.

◆ Environmental coordination

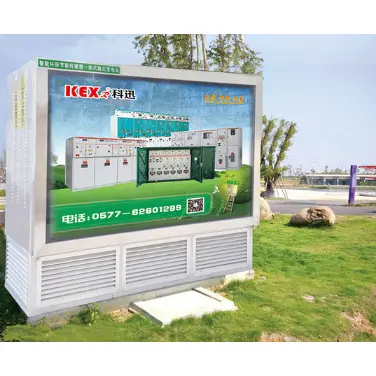

The general substation occupies a large area, and the irrigation is well coordinated with the surrounding environment. Especially in some high-end living quarters, the distribution facilities or box-type substations in the quarters can't be coordinated with the residential environment, which affects the overall beauty of the quarters and even affects the sales of annex buildings. Landscape Buried Box Type Substation will not affect the surrounding environment because the transformer is installed underground. Because of its small size and flexible design, the distribution box installed on the ground is very compatible with the surrounding environment. For example, in a living community, the ground distribution box can be matched with the greening of the community and become the most important part of the community; Such as main roads and highways in cities.

◆ Create value for customers

▶ Landscape Buried Box Type Substation can be completely prefabricated in the factory, with short production cycle, small investment and quick effect.

▶ Landscape Buried Box Type Substation is beautiful in appearance and easy to coordinate with the surrounding environment. Installed in the residential area, not only does it not affect the sales of surrounding buildings, but also enhances the taste of the residential area.

▶ The substation installed on urban main roads and highways is an advertising light box-type switchgear on the ground, and its advertising light box position will benefit for a long time.

◆ High degree of automation

YBD-12 Landscape Buried Box Type Substation can report the operation status of underground combined transformer and high and low voltage switchgear to the controller through the comprehensive measurement and control device using GPRS wireless network technology, which greatly facilitates the operation and use of substation.

● Installation dimension drawing

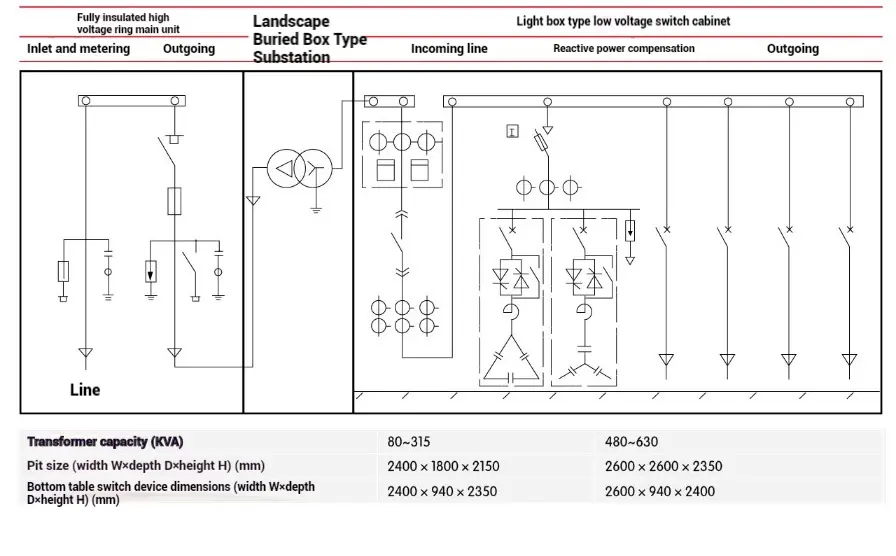

◆ HV ring main unit+Landscape Buried Box Type Substation+low voltage metering.

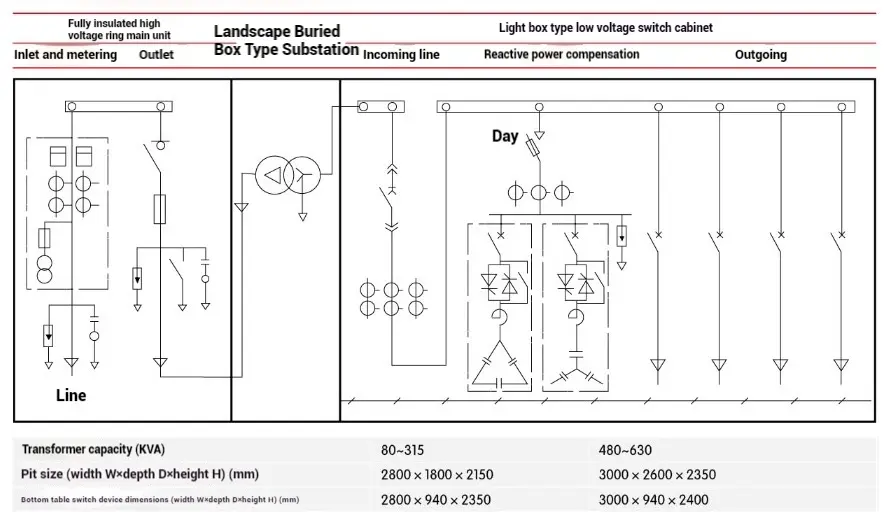

◆HV ring main unit+HV metering+Landscape Buried Box Type Substation+LV feeder.
