Outdoor Low Voltage Transformer
JDZW type Outdoor Low voltage transformer, which is produced by China supplier kexun, is suitable for 10-35kV outdoor distribution system. It has the functions of measurement, measurement and protection, and can resist harsh environment.
Model: JDZW
Brand：KEXR
Model: JDZW
Brand：KEXR
● Model resolution of JDZW type Outdoor Low voltage transformer
J: Voltage Transformer
D: Single Phase
Z: Epoxy Resin Casting.
W: Outdoor type.
● JDZW type Outdoor Low voltage transformer Structural characteristics
◆Protection design:
JDZW type Outdoor Low voltage transformer have IP65 protection level (dustproof and waterproof)
UV-Resistant Silicone rubber jacket
Stainless Steel Hardware
◆Insulation system:
Outdoor special epoxy resin formula
Design of large creepage distance (≥25mm/kV)
◆Installation method:
Base Mounting
Bushing Terminal
● Technical paramters of the JDZW type Outdoor Low voltage transformer
|
Type |
Rated voltage ratio |
Accuracy class |
Rated secondary load |
LimIt output |
Rated insulating level |
|
JDZW |
35/0.1 |
0.2 |
30 |
1000 |
40.5/95/200 |
|
0.5 |
80 |
||||
|
JDZFW |
35/0.1/0.1 |
0.2/0.2 |
30/30 |
800 |
|
|
0.2/0.5 |
30/50 |
||||
|
0.5/0.5 |
50/50 |

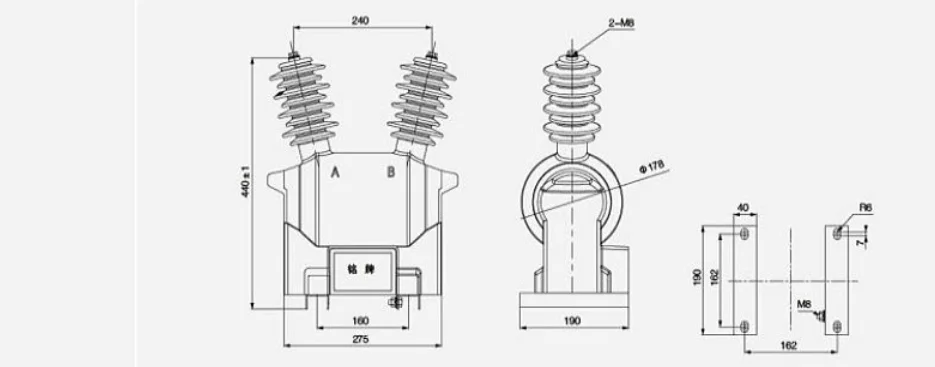

●JDZW type Outdoor Low voltage transformer Outline dimensions
