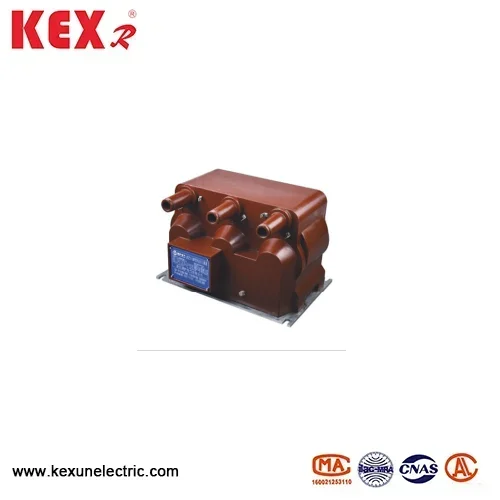

Indoor Potential Transformer
JSZY-10R Type Indoor Potential Transformer is a device produced by China factory Kexun, which is suitable for neutral ungrounded/small current grounding system and has the functions of measurement, protection and insulation monitoring.
Model: JSZY-10R
Brand：KEXR
Model: JSZY-10R
Brand：KEXR
●Indoor Potential Transformer Model decomposition:
JSZ: 3-phase Epoxy Cast VT.
Y: with Residual Voltage Winding.
10: Rated voltage 10kV
R: Indoor Potential Transformer Special design code (usually indicating enhanced/special function)
● Structural characteristic of Type Indoor Potential Transformer
▶Insulation system: JSZY-10R Type Indoor Potential Transformer adopts Vacuum casting epoxy resin (APG process)
▶Totally enclosed moisture-proof design (IP54 protection)
Winding configuration:
Main winding: Y connection. Auxiliary Winding: open triangle.
● JSZY-10R Type Indoor Potential Transformer Technical data
|
Type |
Rated voltage radio（KV） |
Class combination |
Accuracy class and rated Output 0.2 0.5 3p |
Limiting thermal output Of secondary winding |
||
|
JSZY-10R |
10/√3/0.1/√3 |
0.2 0.5 3 |
15 |
30 |
50(100) |
300 |
|
JSZY-6R |
10/√3/0.1/√3 |
|||||
|
JSZY-10R |
10/√3/0.1/√3 |
0.2 0.5 3 |
15 |
30 |
50(100) |
Max output 300 |
|
JSZY-6R |
10/√3/0.1/√3 |
|||||

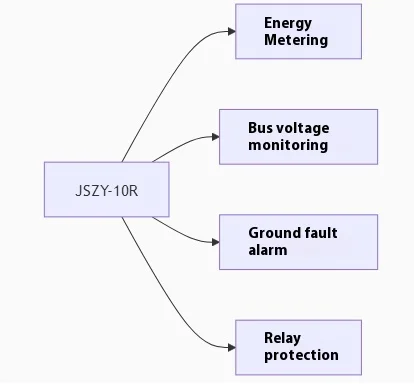

●JSZY-10R Type Indoor Potential Transformer Typical application scenarios

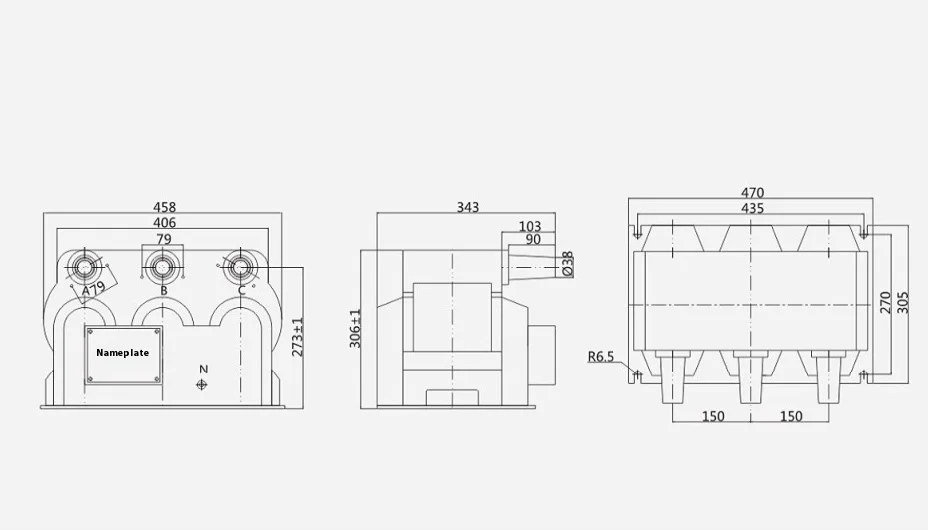

●Overall dimensions of the JSZY-10R Type Indoor Potential Transformer
