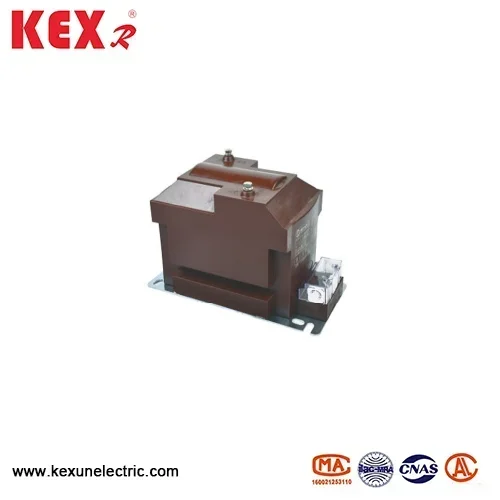

Indoor Low Voltage Transformer
As a well-known supplier of power transmission and distribution equipment in China, Kexun's JDZ 10 Type Indoor Low Voltage Transformer is suitable for working at rated voltages of 3KV, 6KV and 10KV, and is often used for the protection of electrical equipment and measuring instruments.
Model: JDZ10
Brand：KEXR
Model: JDZ10
Brand：KEXR
● Model meaning of the JDZ 10 Type Indoor Low Voltage Transformer
▶J: Voltage Transformer
▶D: Single Phase
▶Z: Epoxy Resin Casting.
▶10: Rated voltage 10kV
● JDZ 10 Type Indoor Low Voltage Transformer Structural features
▶Indoor Type
▶Fully Encapsulated
▶Oil-free design
▶Protection grade IP54 (dustproof and splash-proof)
● Technical parameters table of the JDZ 10 Type Indoor Low Voltage Transformer
|
Rated volatge radio (V) |
Rated secondary output (VA) |
Max Output(VA) |
Rated insulation level |
|||
|
0.2 |
0.5 |
D1 |
D3 |
|||
|
3000/100 |
15 |
30 |
60 |
150 |
200 |
3.6/25/40 |
|
6000/100 |
7.2/32/60 |
|||||
|
10000/100 |
12/42/75 |
|||||

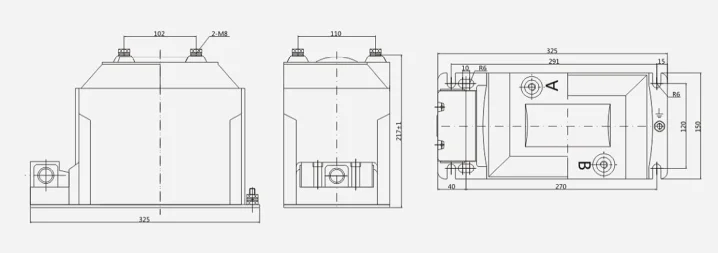

● JDZ 10 Type Indoor Low Voltage Transformer Overall dimensions

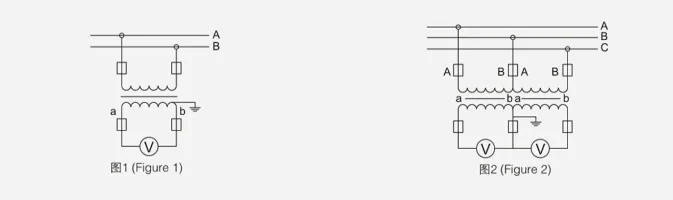

● Wiring diagram of the JDZ 10 Type Indoor Low Voltage Transformer

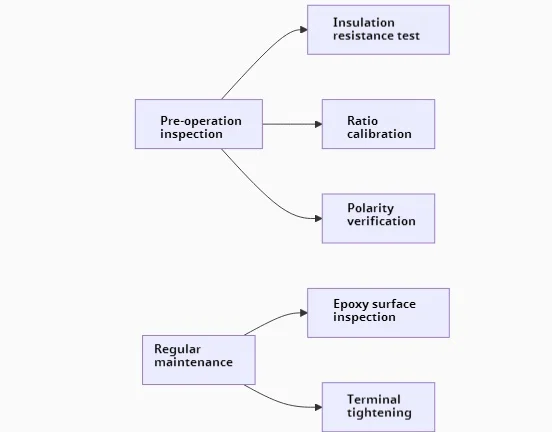

● Operation and maintenance inspection
