Urban Distribution Network RMU

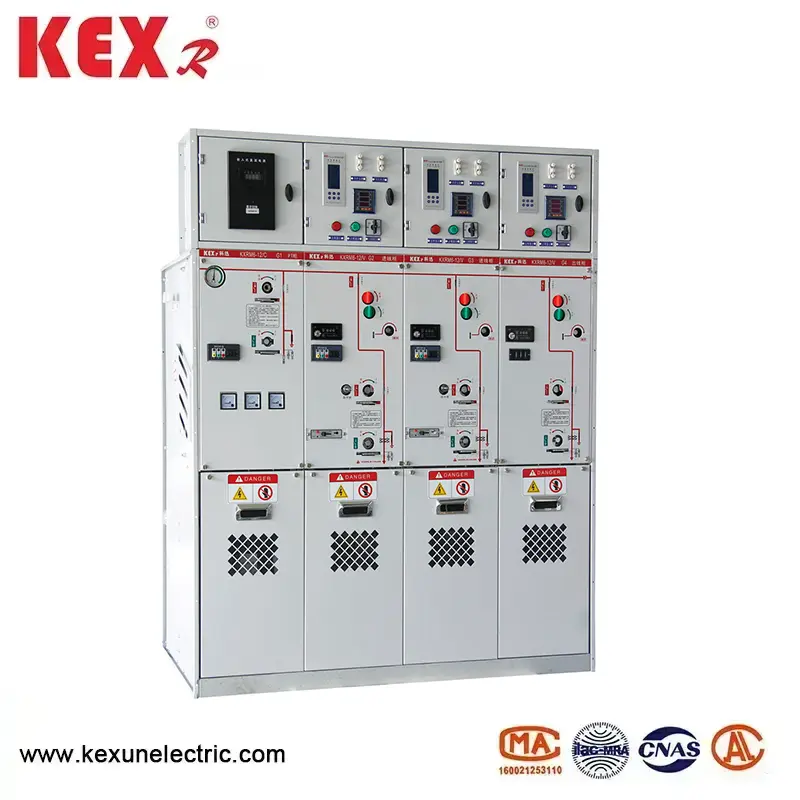

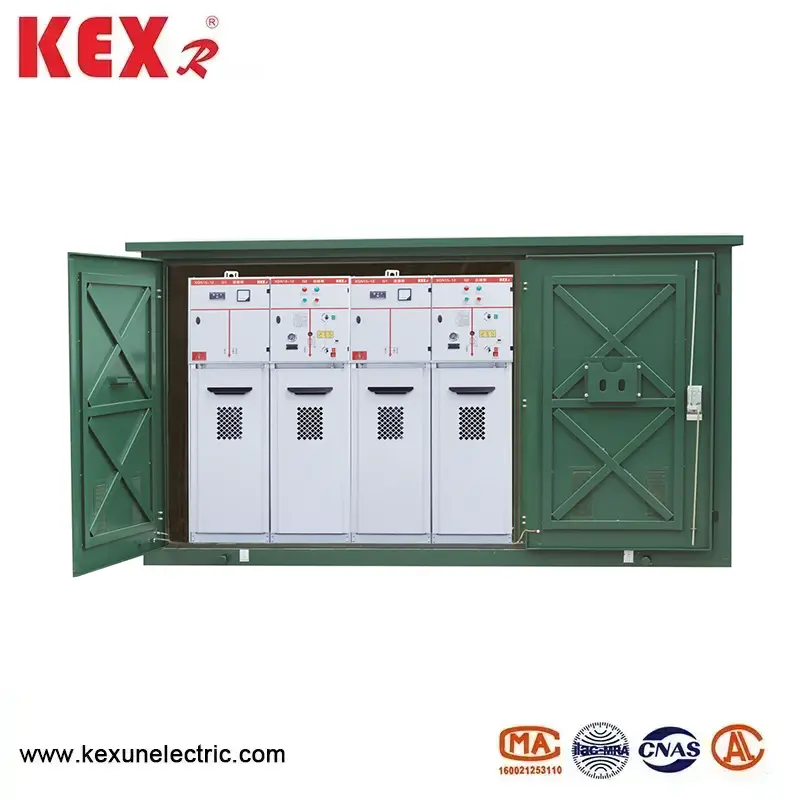

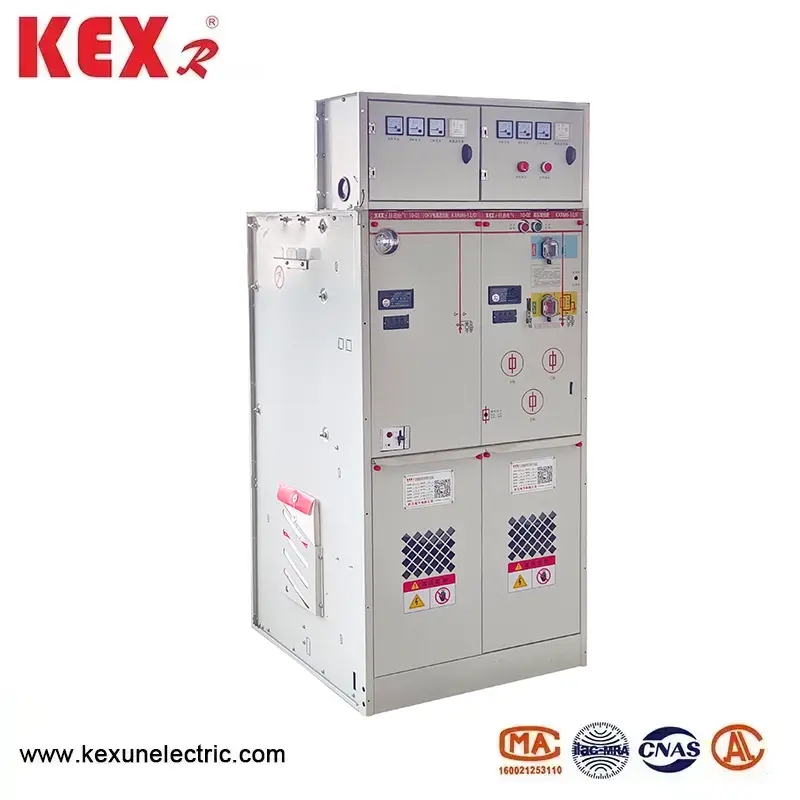

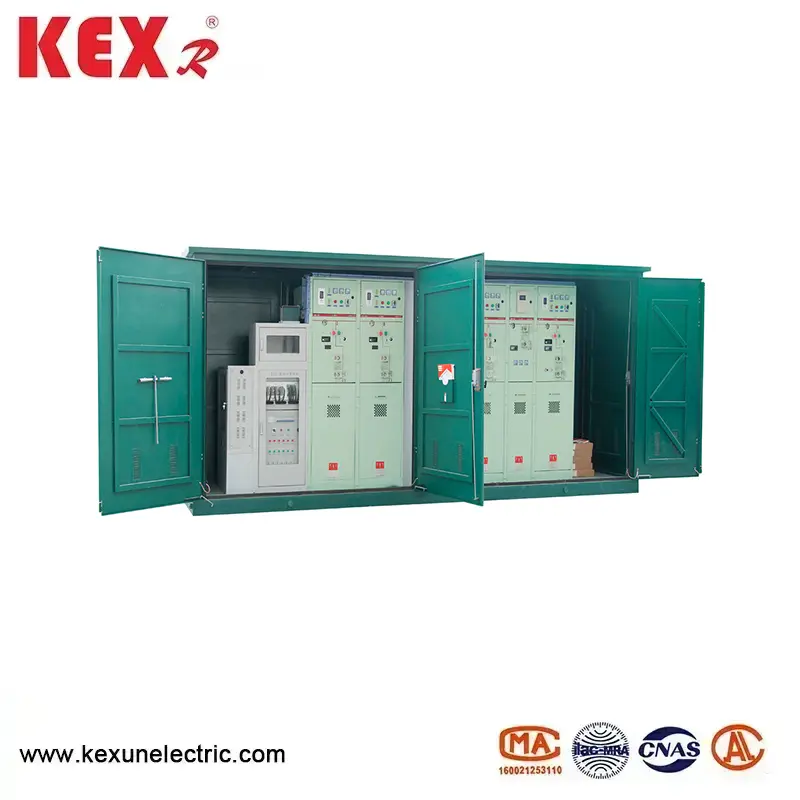

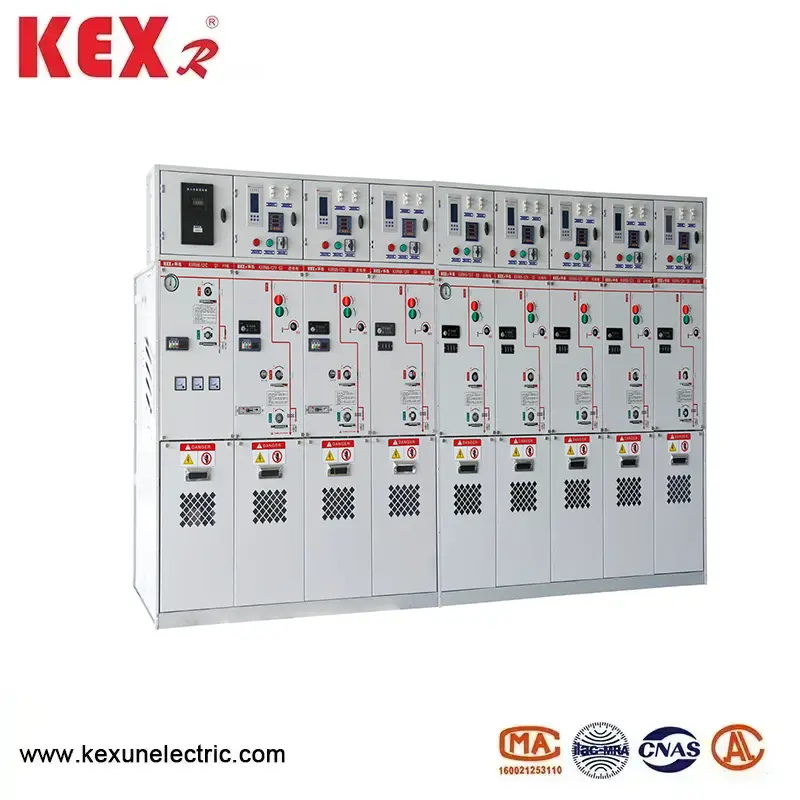

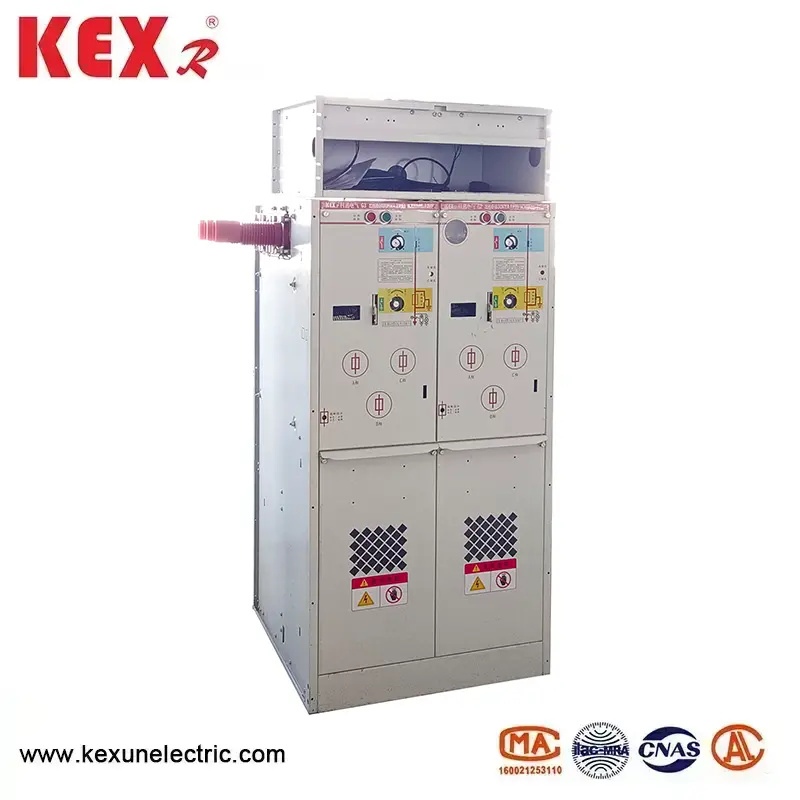

KXRM6-12 Type Urban Distribution Network RMU produced by KEXR, a professional power transmission and distribution equipment manufacturer in China, is a 12kV compact gas-insulated ring network cabinet, which uses environmentally-friendly insulating gas as insulating medium and is suitable for ring network power supply, cable branching and terminal protection of distribution network. This product has the characteristics of miniaturization, intelligence and high reliability, which meets the development needs of modern smart grid.
Model: KXRM6-12
Brand：KEXR
Model: KXRM6-12
Brand：KEXR
○Design feature of the KXRM6 Type Urban Distribution Network RMU
KXRM6 Type Urban Distribution Network RMU Adopts modular design scheme, and its basic module units are load switch module, combined electrical appliance module and other special functional modules. Any combination of these modules forms a common box structure. In the combined module, any function is roughly the same as the internal structure of the basic module.
○Urban Distribution Network RMU Using Conditions
KXRM6-12 Type Urban Distribution Network RMU is suitable for high and low temperature (+40℃~-40℃), humidity, dust, salt pollution, mines, high altitude (l000) and other environments. Short-term immersion in water within 24 hours does not affect the use. Note: If the altitude is higher, please indicate the specific altitude.
○ Standards
Urban Distribution Network RMU meets the standards below
▶ International standards
IEC60056, IEC60298, IEC60129, IEC60420, IEC60265, IEC60694, etc.
▶ China standard
GB3804, GB3906, GB11022, etc.

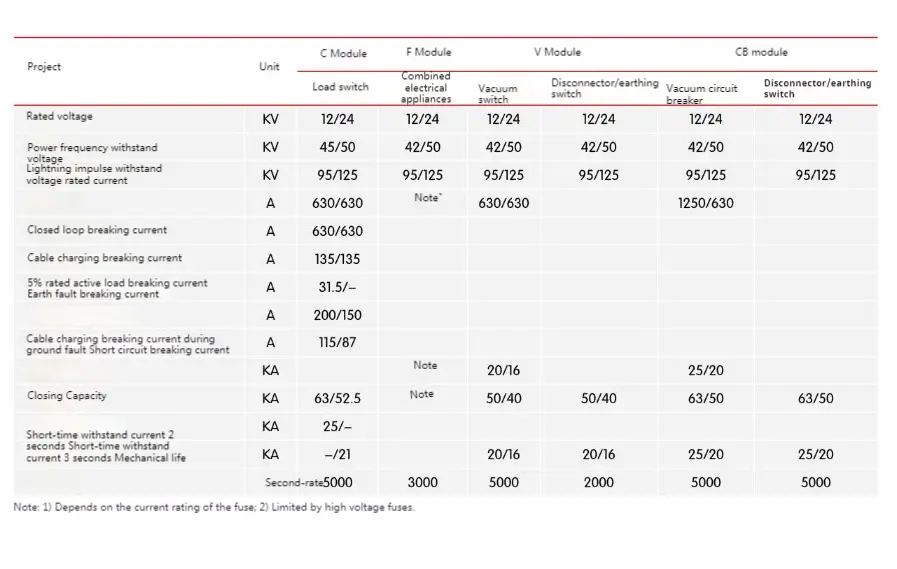

○ Main technical parameters of the KXRM6-12 Type Urban Distribution Network RMU

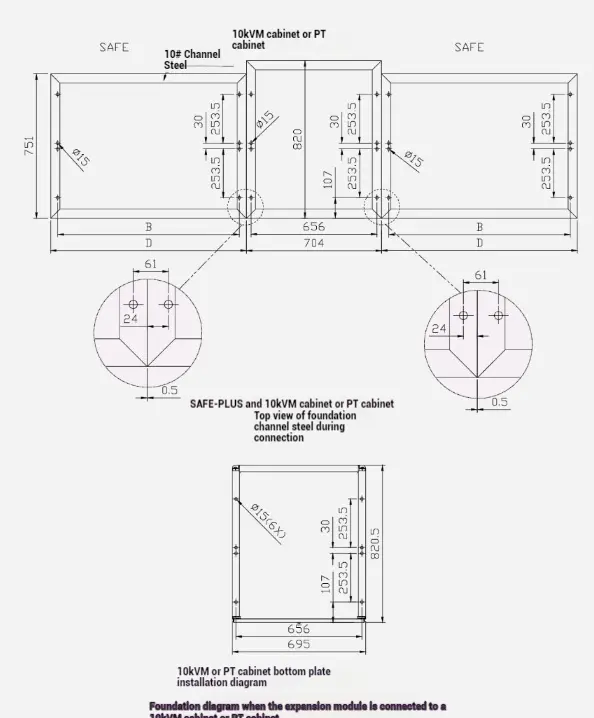

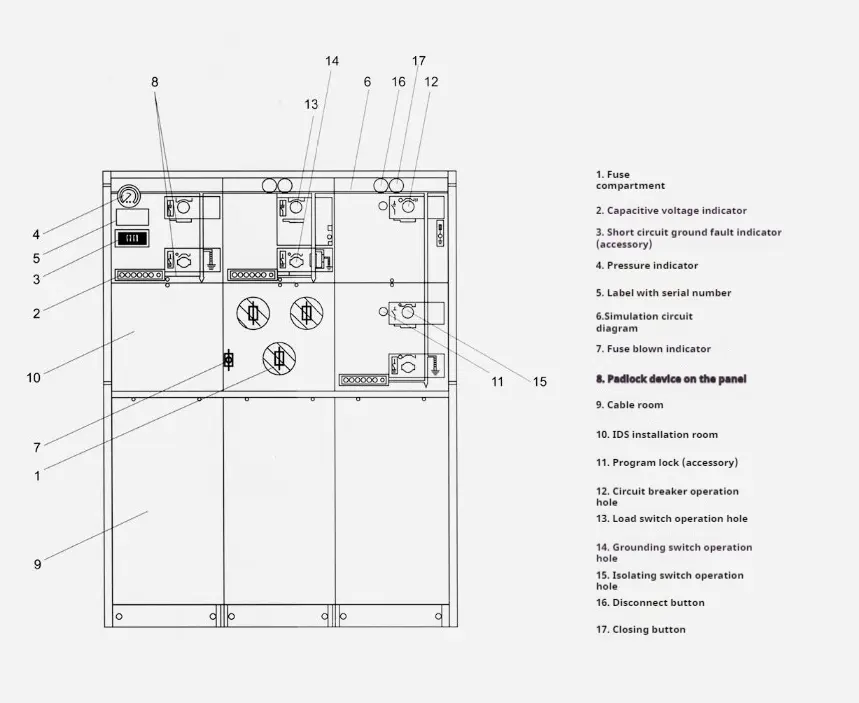

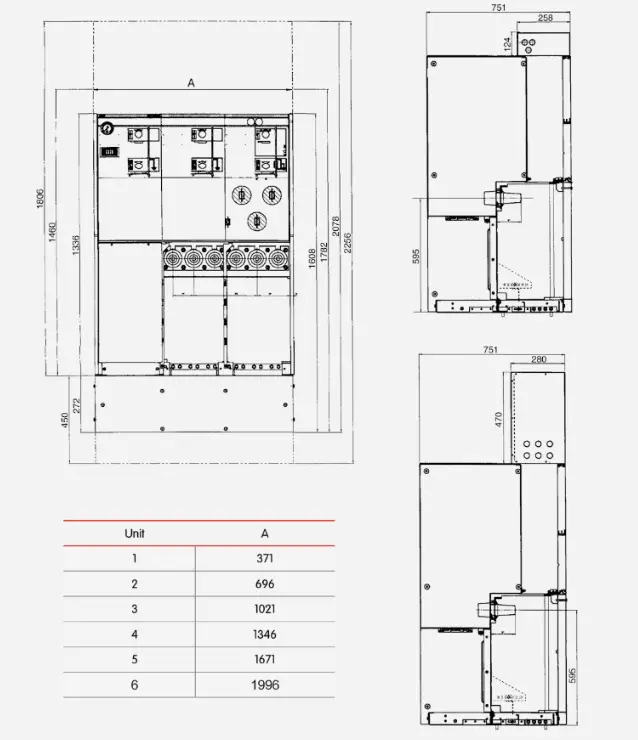

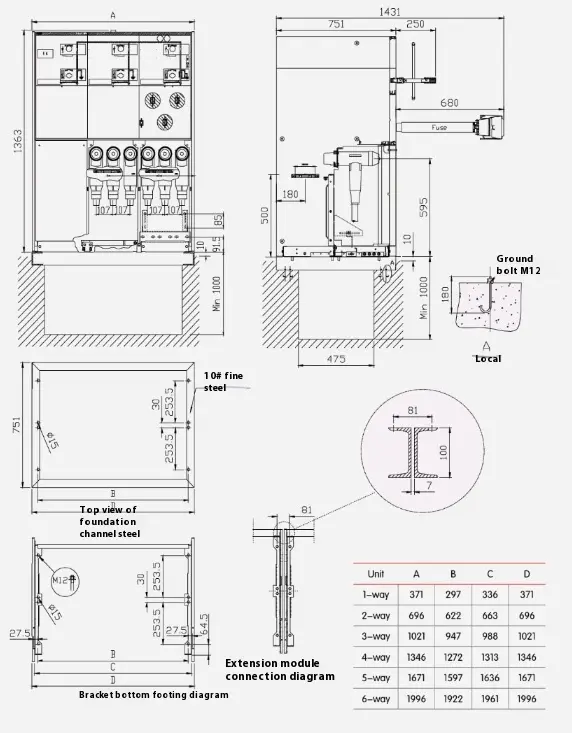

○Structural drawing and dimensions of the Urban Distribution Network RMU
Hot Tags: Urban Distribution Network RMU
