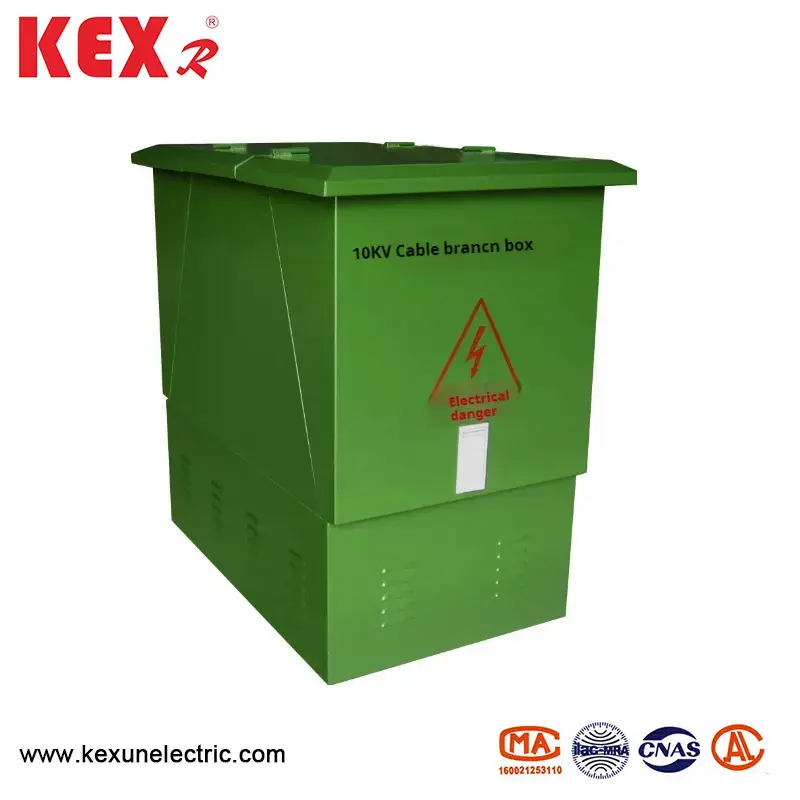

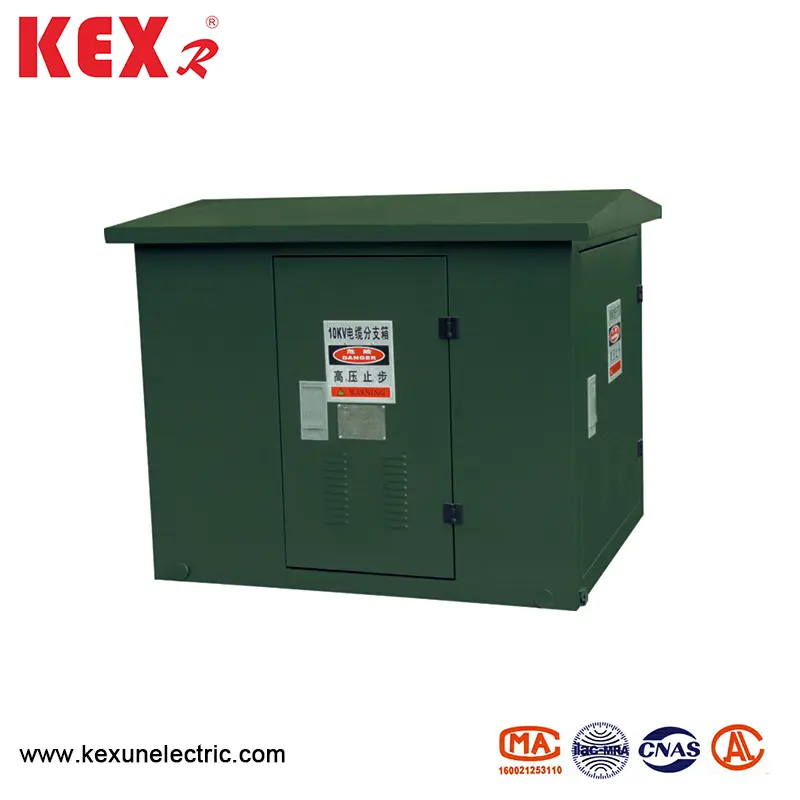

10kV European Cable Branch Box

● Conditions of use

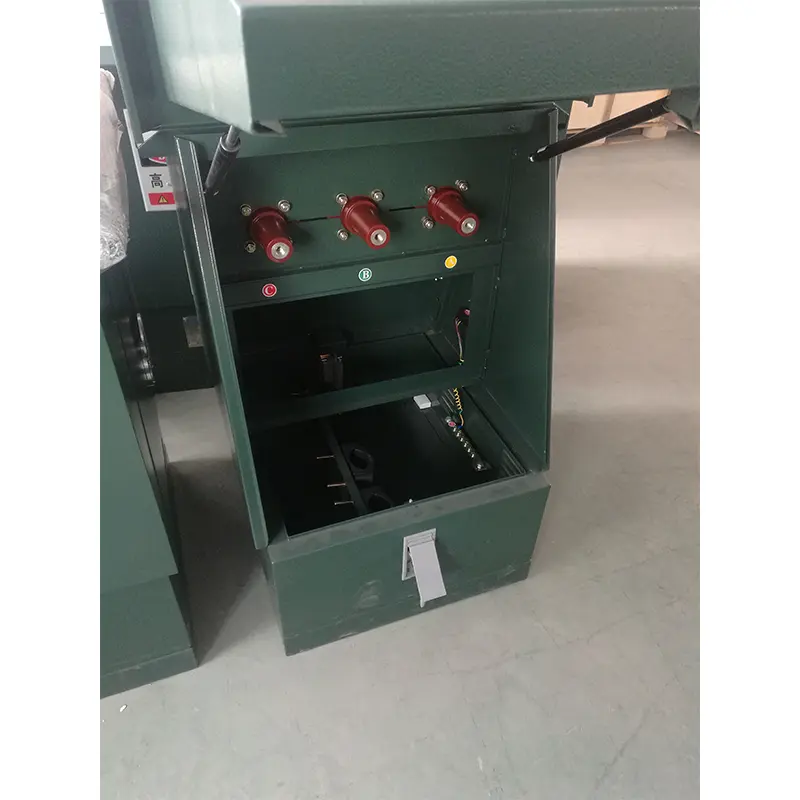

10kV European Cable Branch Box widely used in power distribution system . Its main features are bidirectional door opening and the use of wall bushing as the connecting bus bar. It has obvious advantages such as short length, clear cable arrangement, and no need for large-span crossing of three-core cables. The cable connector used in this system conforms to DIN47636 standard. Generally, the rated current 630A bolt is used to fix the connecting cable joint.

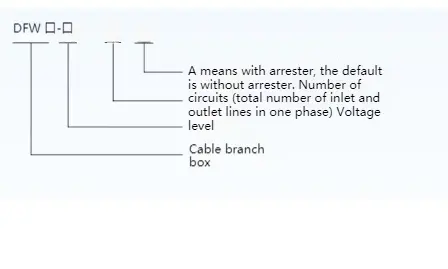

● Model meaning

● Using environment of 10kV European Cable Branch Box

▶ Environment temperature：-30~40℃

▶Wind speed：less than 34m/s(700Pal)

▶Humidity:Daily average less than 95%, monthly average less than 90%

▶Shockproof: the horizontal acceleration is not more than 0.4m/s2, and the vertical acceleration is not more than 0.15m/s2；

▶Inclination of installation site: less than 3°

▶Installation environment: The surrounding air of the 10kV European Cable Branch Box should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and there is no strong vibration at the installation site.

● Technical parameter

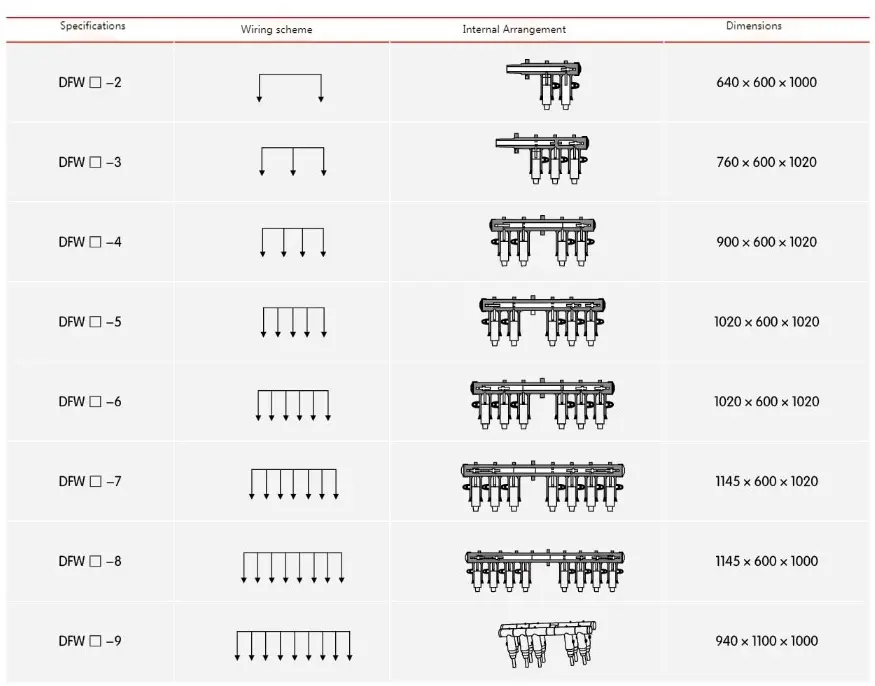

● Order number description
