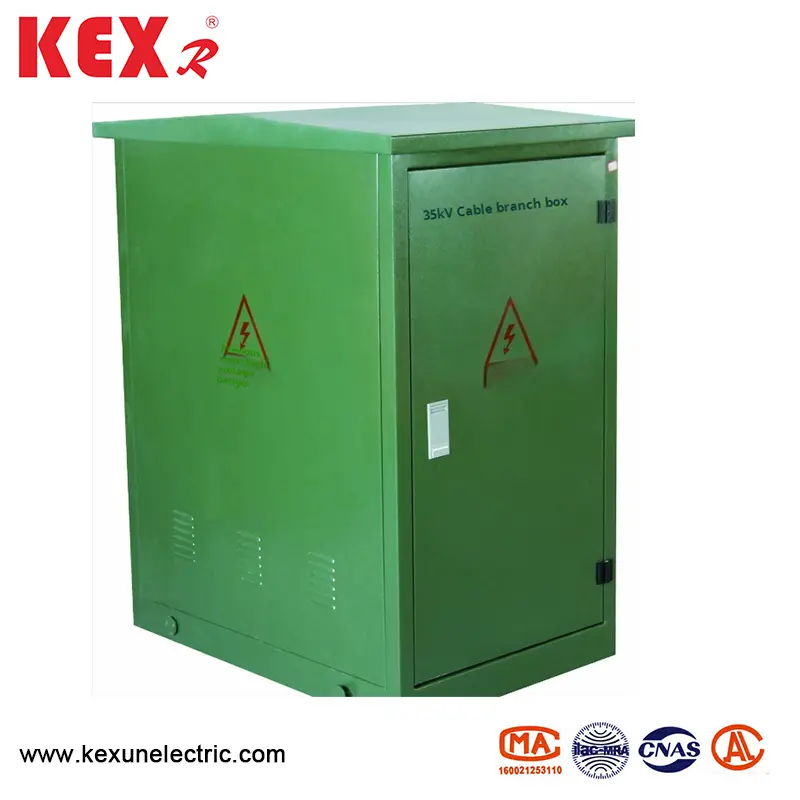

35kV European Cable Branch Box

Kexun, a manufacturer in China, uses the bolt-fixed cable connector with rated current of 630A and conforming to DIN47636 standard to produce 35kV European Cable Branch Box. The Cables have the characteristics of clear arrangement, and three-core cables do not need long-span crossing.
Model: DFW
Brand: KEXR

● Typical application scenarios

 35kV European Cable Branch Box can be used in the following scenarios.

▶Cable branch of urban distribution network

▶Power distribution in industrial parks Grid-connected node of wind, light and new energy power generation

▶Temporary power supply system (such as construction site)



● The Characteristics of 35kV European Cable Branch Box

◆ Strong environmental adaptability

▶Excellent weather resistance, adapting to the temperature difference change from-40℃ to+40℃, and suitable for long-term outdoor operation.

▶Anti-corrosion, anti-ultraviolet design, extend the service life (usually more than 20 years)



◆ Intelligent optional (some high-end models)

▶FTU (Feeder Terminal Unit) and remote monitoring module can be integrated to upload data such as current, voltage and fault detection, and support the demand of smart grid.

▶Equipped with liquid crystal display or LED indicator light to facilitate on-site state monitoring.



◆ Convenient installation and maintenance

▶Most of them are maintenance-free designs, reducing operation and maintenance costs.

▶Adopt front door or side door structure, which is convenient for operation and maintenance.



◆ Standardization and compatibility

Comply with IEC, EN and other international standards, and have strong compatibility with European cable accessories (such as bushings and lightning arresters).



35kV European Cable Branch Box takes modularization, high safety and environmental adaptability as its core advantages, and is especially suitable for power distribution scenes with high requirements on reliability and space. Users need to select specific models according to actual requirements (such as voltage level, number of branches and intelligent requirements).

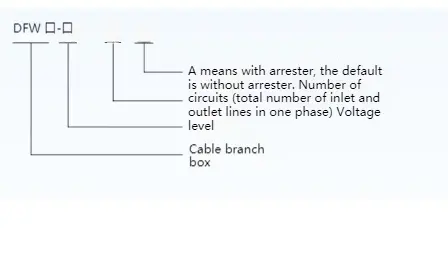

● Model description

35kv European Cable Branch Box

● Technical parameter

Rated Voltage

12KV,14KV

Rated current

630A

Dynamic stable current

50KA/0.3s

Heat stable current

20KA/0.3s

1min working frequency withstand voltage

42KV

15 mins DC Withstand voltage

52KV

Lighting impulse withstand voltage

105KV

Shell IP degree

IP33

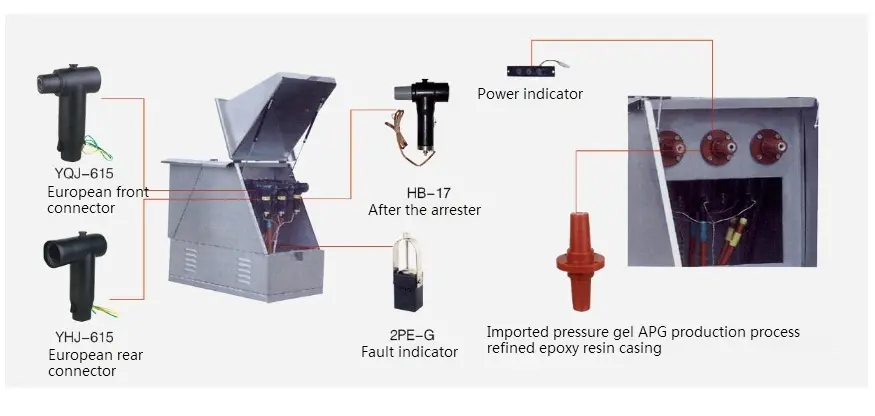

● Example diagram of 35kV European Cable Branch Box

35kv European Cable Branch Box

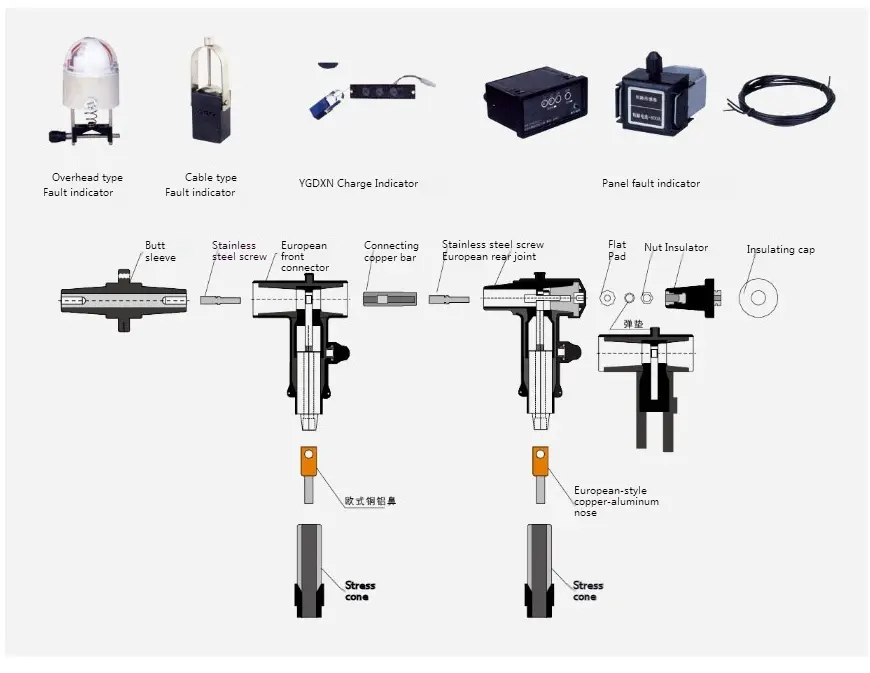

● Schematic diagram of cable plug installation

35kv European Cable Branch Box
