24kV European Cable Branch Box

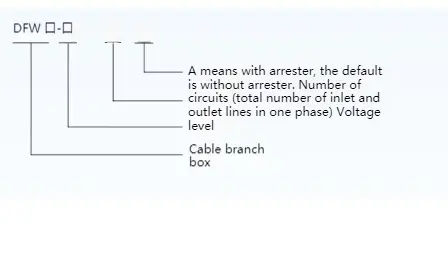

● Model meaning

● Main features

◆ Modular design and flexible expansion

▶24kV European Cable Branch Box adopts Standardized module structure (such as bus module, switch module, cable connector module, etc.) , which can be flexibly combined according to requirements, which is convenient for later expansion or transformation.

▶Support multi-loop branches (such as 4~8 or more) to meet the needs of different distribution networks.

◆ Compact structure, saving space

▶24kV European Cable Branch Box has a small size, suitable for installation in places with limited space (such as urban streets, residential areas, etc.).

◆ High security design

▶Fully insulated and fully enclosed: the live parts are enclosed in the box, avoiding direct contact and having high safety.

▶Protection against electric shock: the grounding design is perfect, equipped with fault indicator or short-circuit protection device (some models are optional).

▶Arc resistance: High-performance insulating materials (such as SMC and epoxy resin) are used to withstand internal arc faults.

◆ Reliable cable connection technology

▶Eurostyle cable connectors (such as T-type and elbow-type plug-in connectors) are adopted, which is convenient for plug-in and good in sealing.

▶Support a variety of cable sections (such as 35 mm ~ 400 mm) and adapt to different specifications of cables.

▶The connector can be plugged and unplugged with electricity (some models), which is convenient for maintenance and overhaul.

● 24kV European Cable Branch Box Comparison with American cable branch box

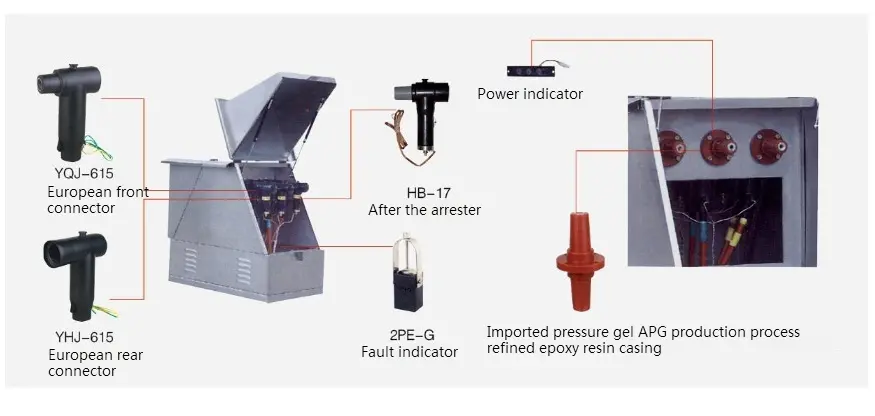

● Example diagram of 24kV European Cable Branch Box

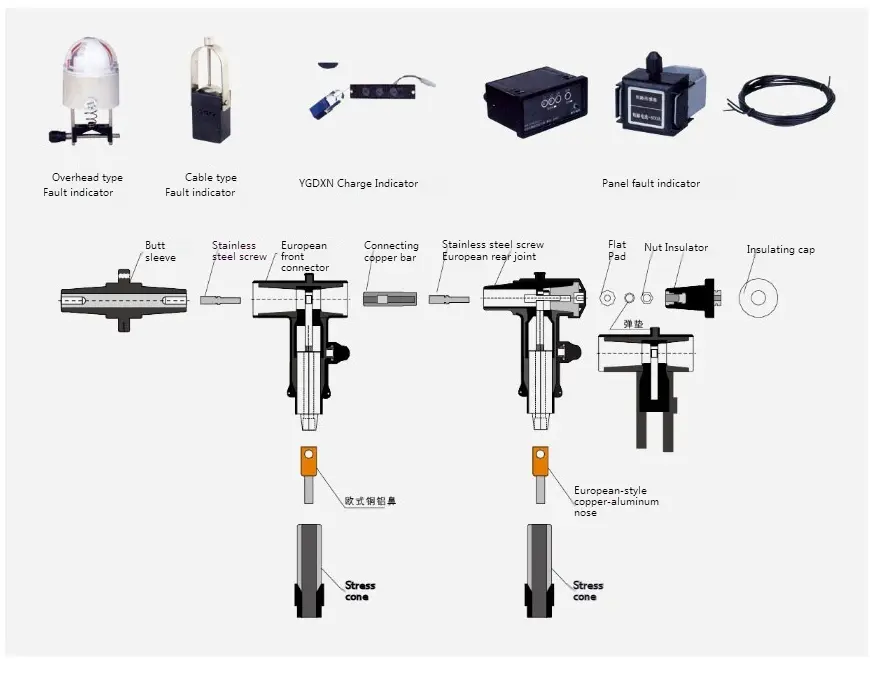

● Schematic diagram of cable plug installation
