Cable Plug

● Product overview

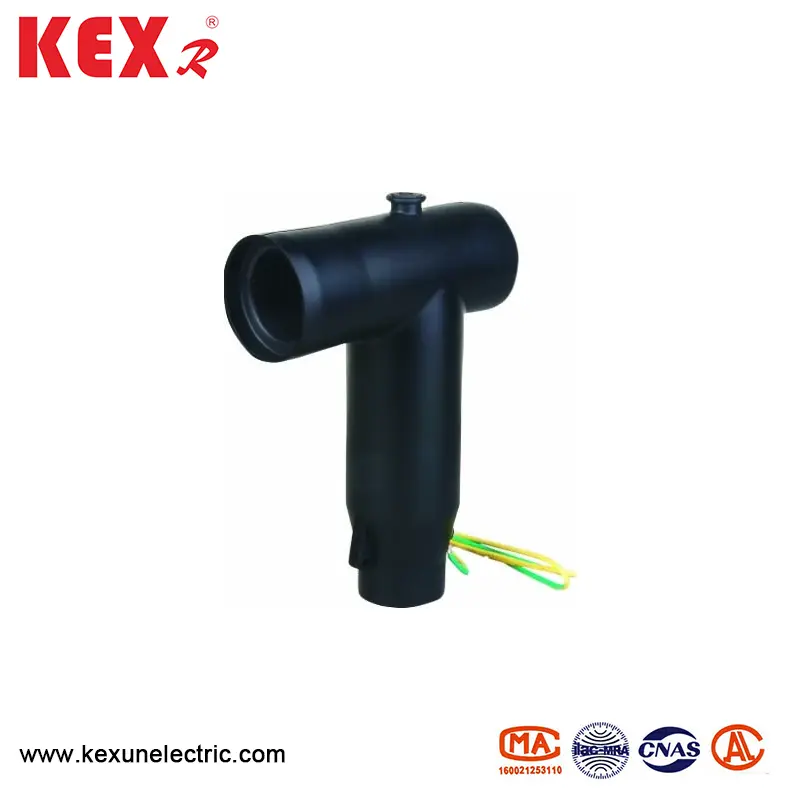

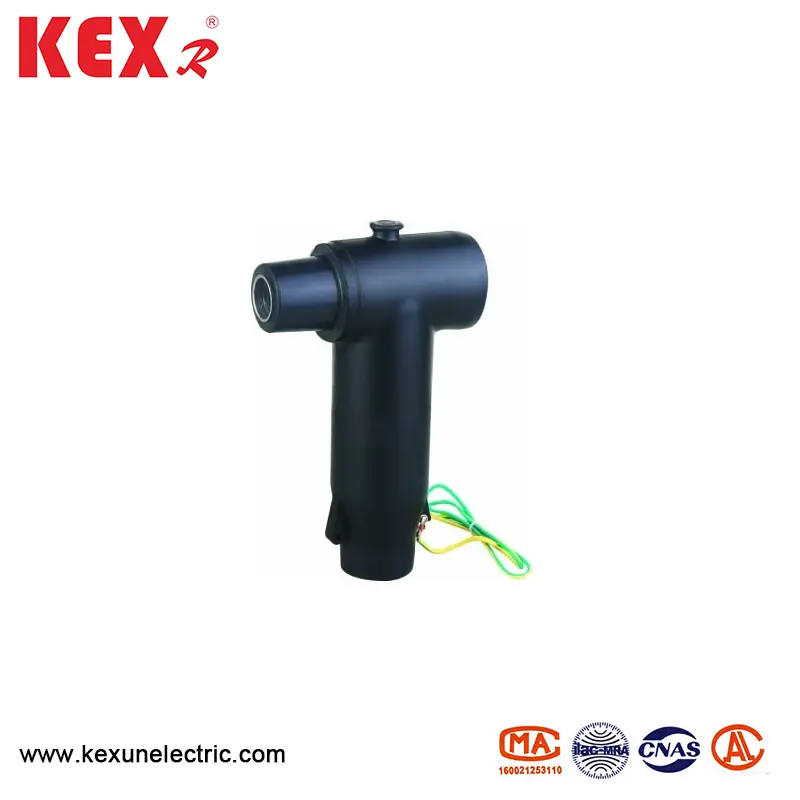

630A Cable Plug, which plays the role of bus in cable branch lines, is characterized by complete insulation and complete sealing. Widely used in European cable branch box and ring network switchgear, the structure

More reasonable and scientific, made of high-quality insulating materials, effectively ensuring the safe and reliable operation of cable head.

630A Cable Plug conforms to EN50181-1997 switchgear bushing standard.

◆ Outline dimensional drawing

● Product pic

◆ Product overview

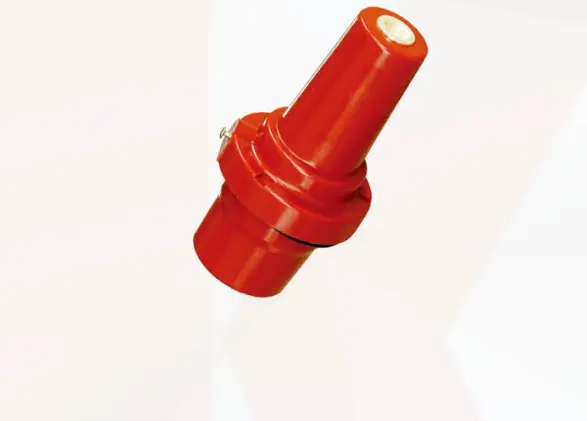

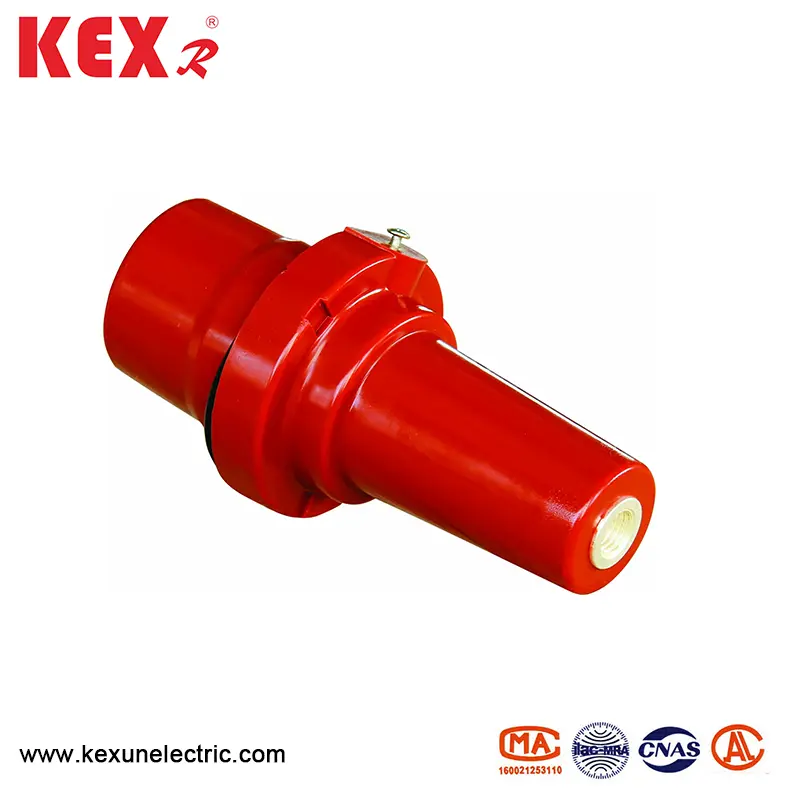

The sleeve seat of 15KV 630A inflatable cabinet provides an interface for 630A Cable Plug., which is mainly used for outdoor ring network switchgear and other equipment. Installed on the inflatable cabinet and connected with the 630A Cable Plug，It is a 630A incoming and outgoing line, which is connected with the shielded bolt Cable Plug. The applicable medium is insulating oil or SF6 gas, and the induction point on the bushing can be directly grounded or connected with a live display. Its material is an epoxy resin and copper rod, which has good mechanical and electrical properties.

◆Model meaning

◆ Standard package

▶Casing seat body

▶Black dust cap

▶Install flange (optional)

▶Product certificate

◆ Purchasing information

● Product pic

◆ Product overview

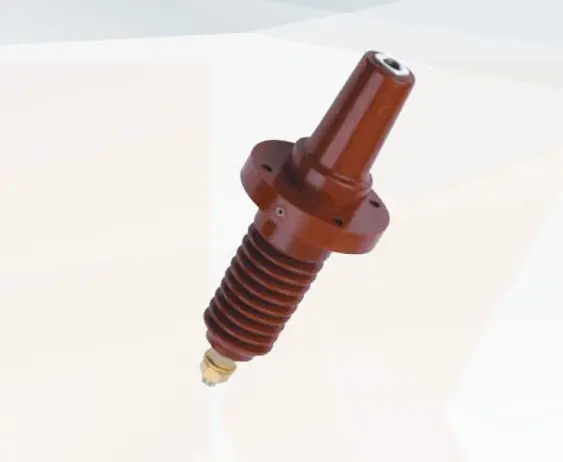

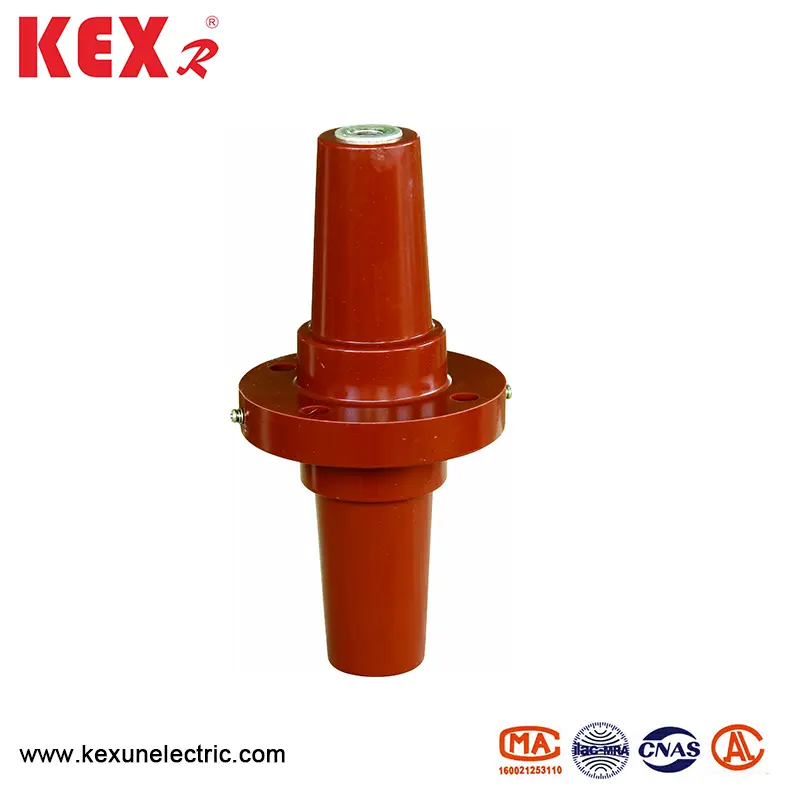

This model 630A integrated two-way bushing seat is insulated, shielded and waterproof, which conforms to the standard of EN50181-1997 and is suitable for the installation of European box transformers, ring network cabinets or other equipment. It provides a 630A standard sleeve interface, which is usually connected to a touchable front connector. The induction point on the bushing can be directly grounded or connected with a live indicator to indicate that the bushing is live, which is suitable for insulating oil and SF6. Insulating medium or air medium.

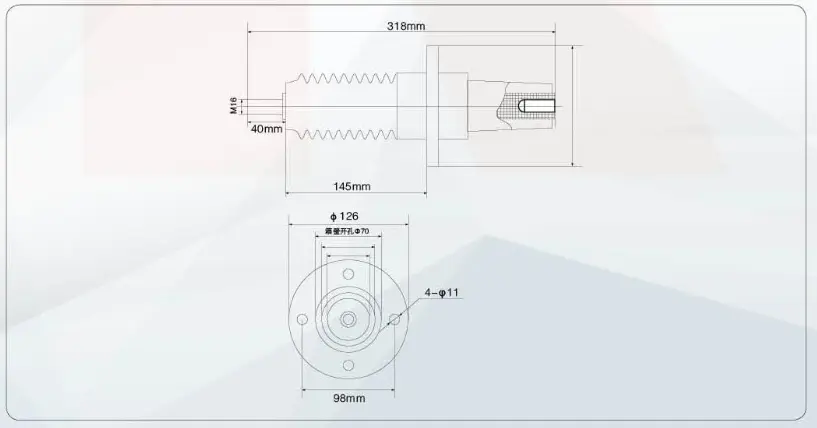

◆ Outline dimensional drawing
