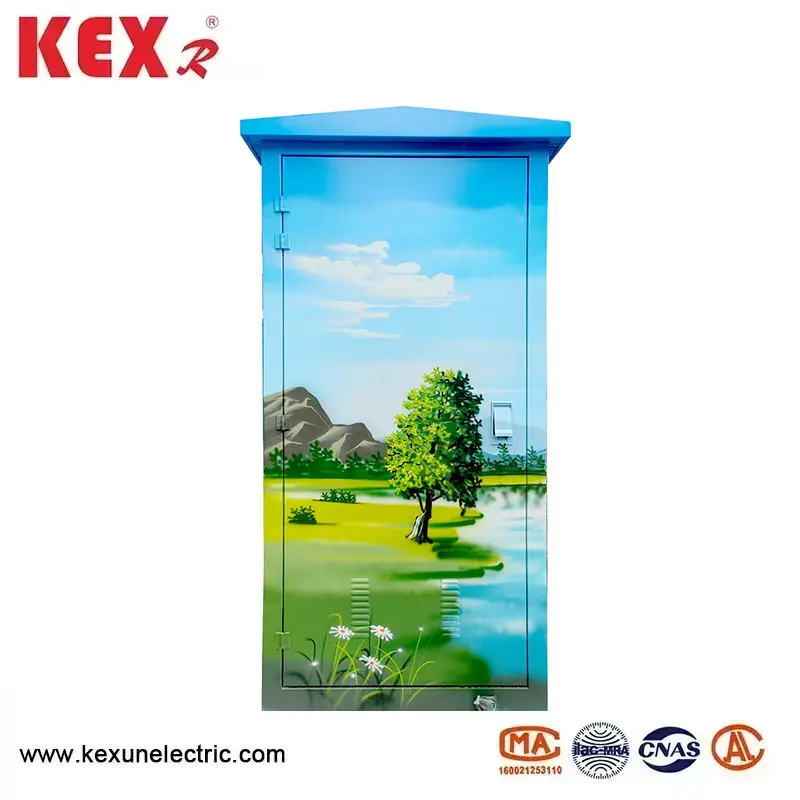

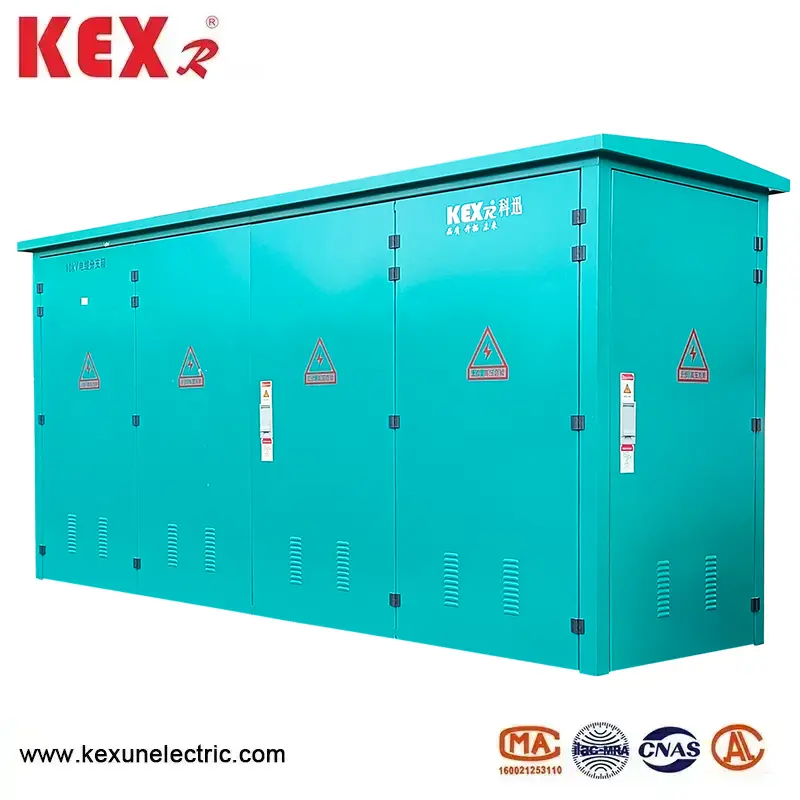

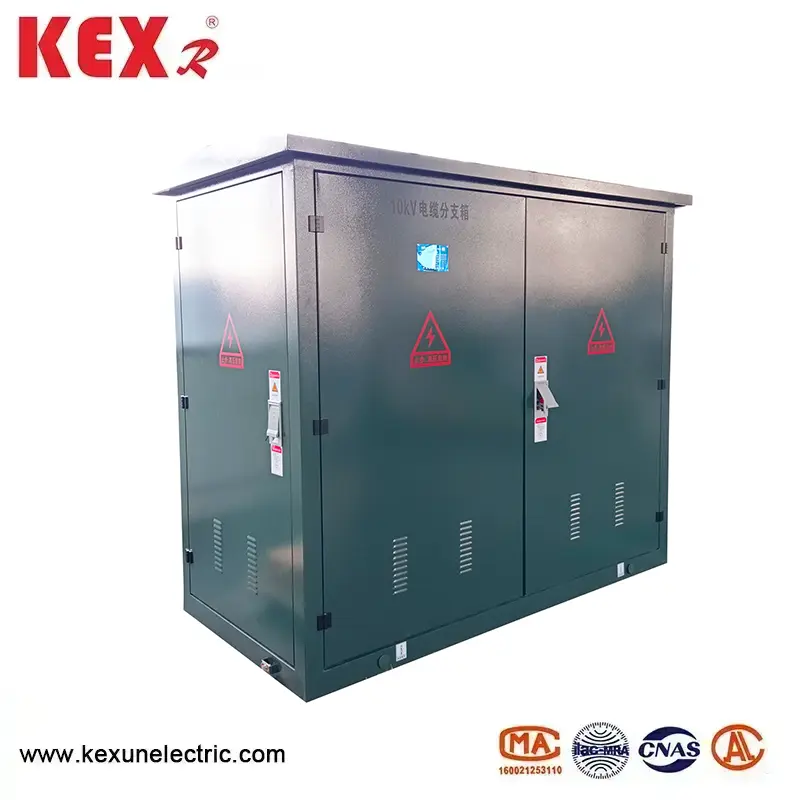

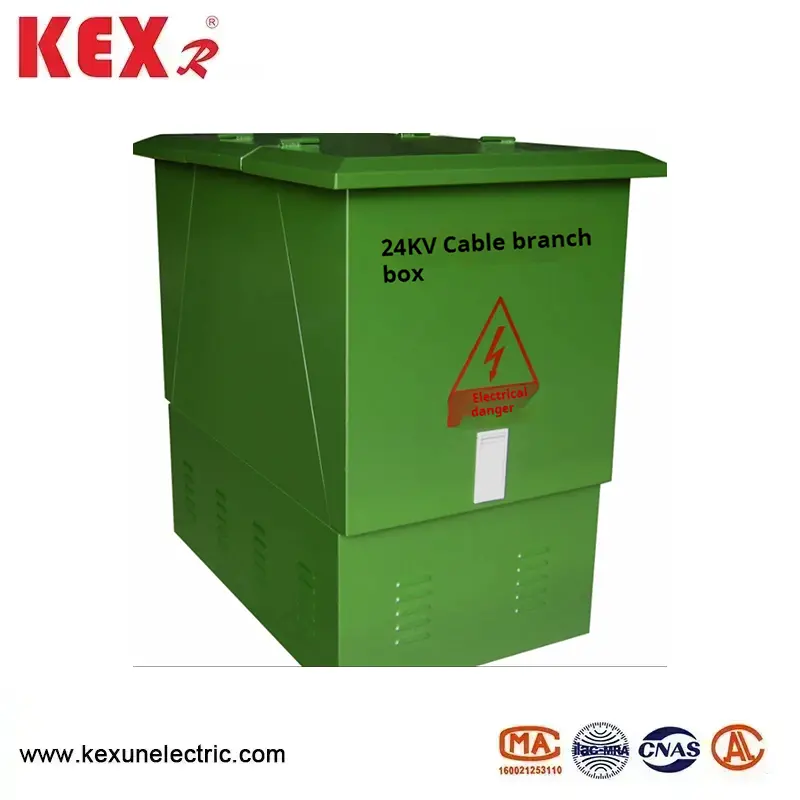

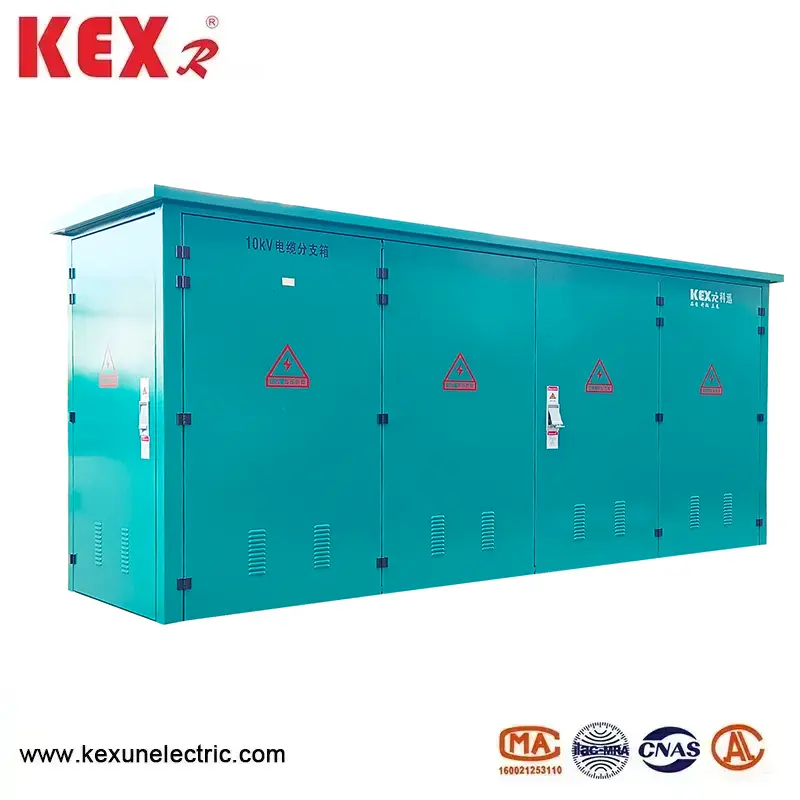

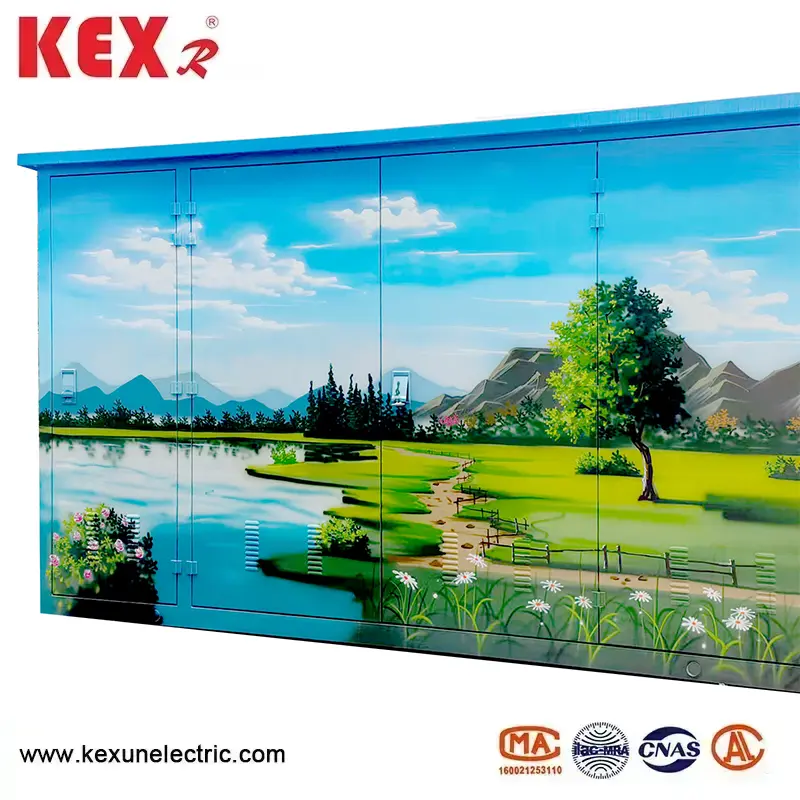

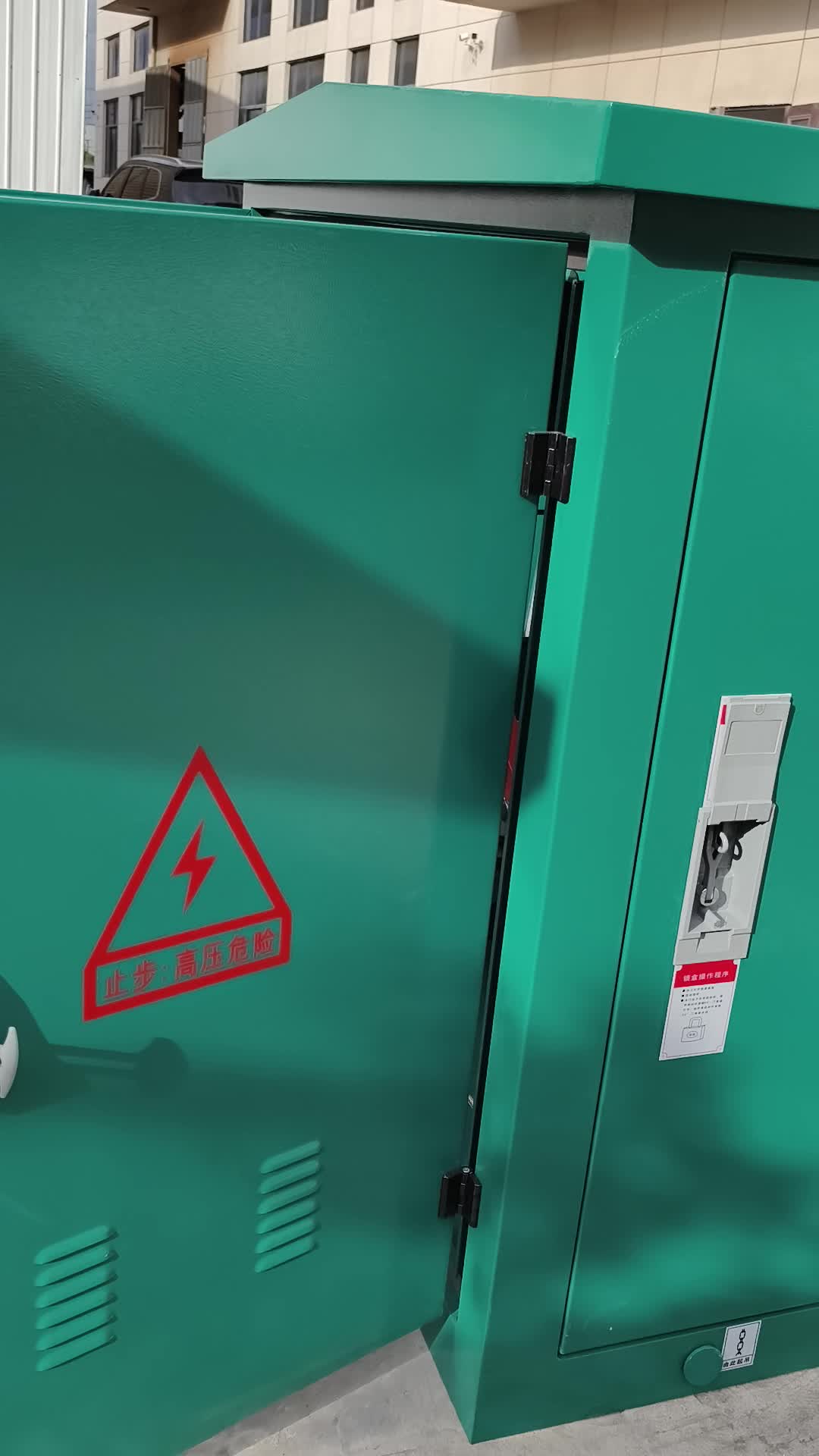

24kV Cable Splitting Box

●Core characteristics of the 24kV Cable Splitting Box

▶Voltage grade:24kV Cable Splitting Box rated voltage is 24kV (conforming to IEC 62271-200 or GB/T 11022 standard).

▶Fully insulated seal: the live parts are insulated by solid insulation or SF6 gas, with no exposed conductor,dust-proof and waterproof (IP65/IP67).

▶European-style plug-in technology: T-type or elbow-type shielded cable connectors are standard, and live plug-in is supported (special tools are required).

▶Modular expansion: standard units (such as 1 in, 4 out, 2 in and 6 out) can be flexibly combined to support later capacity expansion.

●The 24kV Cable Splitting Box Typical structural

▶The box is made of stainless steel /SMC, which is corrosion-resistant and outdoor design (-40℃~+70℃).

▶The insulated bus is made of copper or aluminum, wrapped with silicone rubber /EPDM insulation layer, and the insulation level is ≥50kV (power frequency withstand voltage).

▶Cable connector

24kV shielded plug-in connector (such as RIP type and EPDM insulation) with test point (optional).

▶The protection device can be equipped with short-circuit fault indicator, live display and lightning arrester.

Grounding system box grounding terminal+cable shield grounding, grounding resistance ≤4Ω.

●Typical application scenarios of The 24kV Cable Splitting Box Typical structural

▶New energy power station: offshore wind power 24kV collector line tapping.

▶Industrial Park: Cable branch of high-voltage motor or transformer.

▶Mine/oil field: explosion-proof 24kV branch box (Ex d IIC T4).

▶Urban high-voltage distribution network: an alternative scheme for cable ring network cabinet (saving space)

●Using Conditions of the 24KV European type Cable Splitting Box

Ambient temperature of the10KV European type Cable Distribution Box: -30~40℃

Wind speed: equivalent to 34m/sl and not more than 700Pal

Humidity: the average daily relative humidity is not more than 95%

The average monthly relative humidity is not more than 95%

 Shockproof: the horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s²

Inclination of European type Cable Distribution Box installation site: Less than 3

Installation environment: The surrounding air should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and the installation site should not be violently vibrated.

● Technical parameter of the 24KV European type Cable Splitting Box

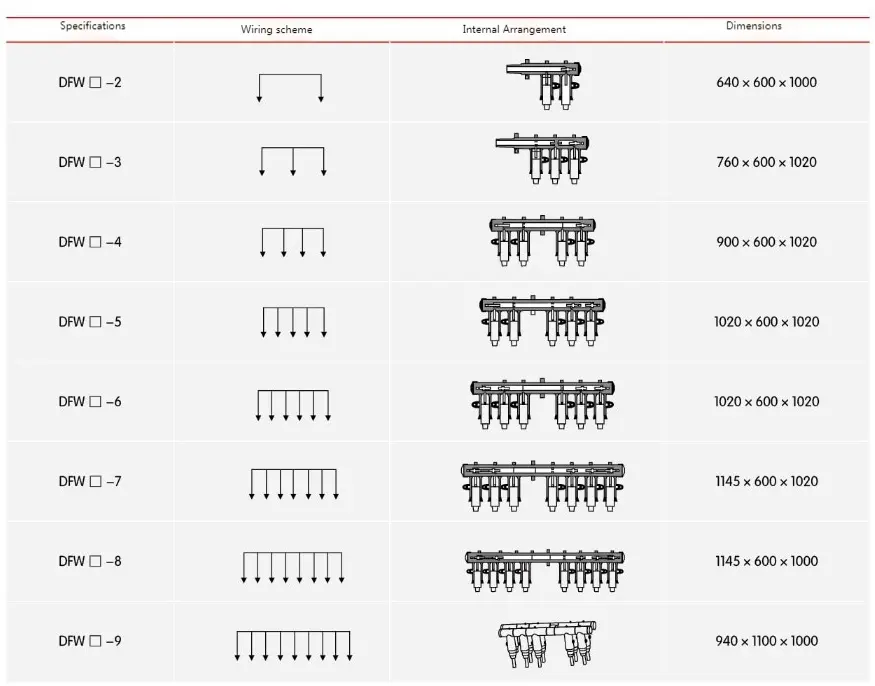

● 24KV European type Cable Splitting Box Order number description
