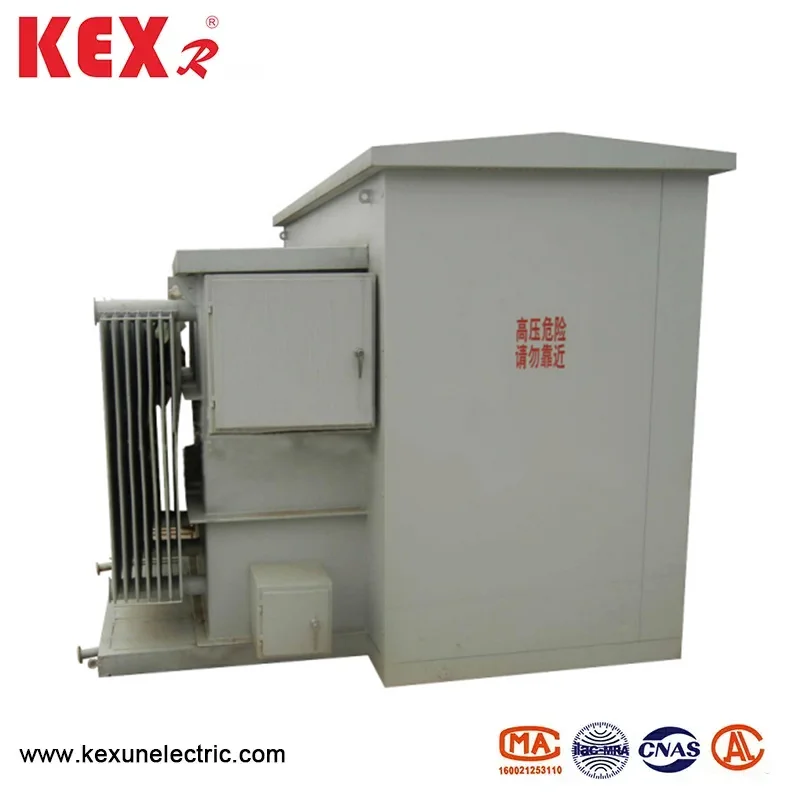

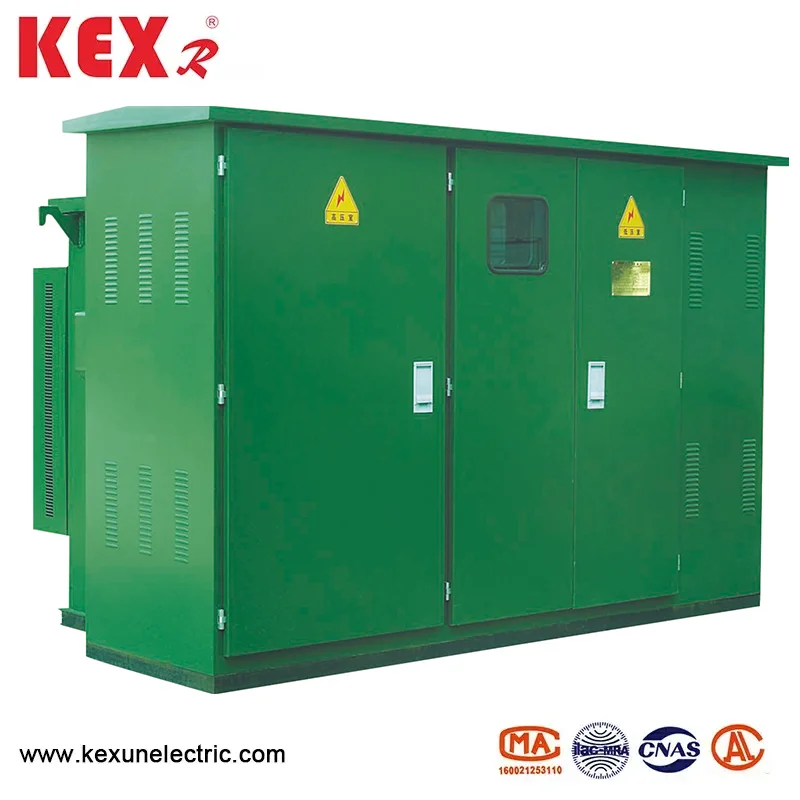

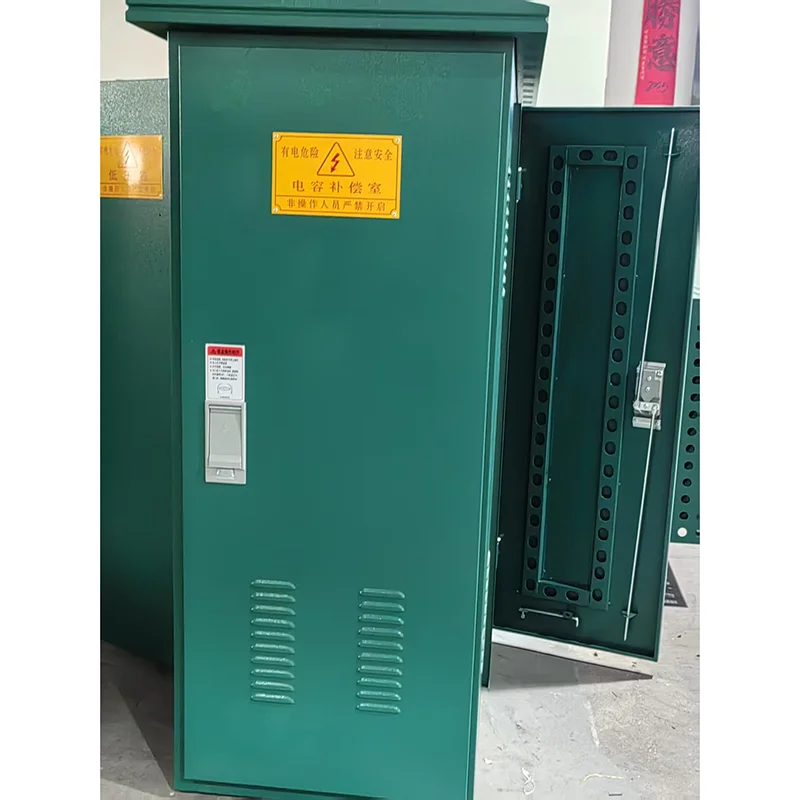

American Type Pad-mounted Transformer
American Type Pad-Mounted Transformer produced by China manufacture Kexun is an integrated and modular small distribution transformer, which has the characteristics of compact structure, convenient installation and good protection, and is widely used in urban distribution networks, residential quarters, commercial areas and industrial power consumption.
Model:ZBW-12
Brand：KEXR
Model:ZBW-12
Brand：KEXR
American typepad-mounted transformer has the following main features.
◆Compact design
Small size, less floor space, suitable for places with limited space.
American box-type transformer structure is adopted, which is usually installed on a concrete Pad-Mounted.
◆Pre-assembled structure

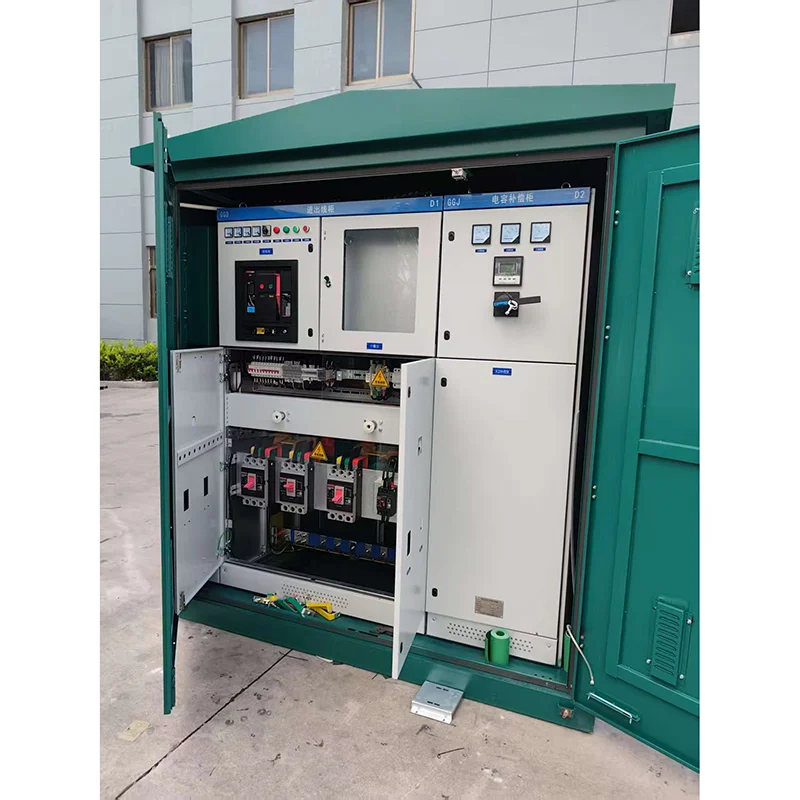

Complete the integration of high and low voltage switches, transformers and protection devices before leaving the factory to reduce the workload of on-site installation.
Adopt fully sealed structure, moisture-proof, dust-proof and corrosion-proof.
◆Safe and reliable
Adopt full insulation design to reduce the risk of electric shock.
It has the functions of overload, short circuit and temperature protection, and runs stably.
◆Easy maintenance
American plug-in cable head (elbow cable head) is adopted, which is convenient for quick installation and replacement. The design of the access door is reasonable and convenient for operation and maintenance.
◆Strong adaptability
American Type Pad-mounted transformer is suitable for outdoor environment, the protection level usually reaches IP67.
Customizable design can meet different voltage levels (such as 10kV/0.4kV) and capacity requirements (such as 50kVA~1600kVA).◆
●Common application scenarios of American type pad-mounted transformer
✅Urban distribution network: it is suitable for power distribution transformation of streets and communities, and reduces the occupied area.
✅Residential area: quiet design, suitable for power supply in residential areas.
✅Commercial center: beautiful and compact, without affecting the city appearance.
✅Industrial Park: Adapted to harsh environment with high reliability.
✅Temporary power consumption: such as construction sites, exhibitions, etc., which is convenient for rapid deployment.
●Transformer technical parameters used by American type pad-mounted transformer
|
Serial Number |
Item |
Unit |
Technical parameters |
|
1 |
Rated voltage |
kV |
10/0.4 |
|
2 |
Max operating voltage |
kV |
12 |
|
3 |
Rated frequency |
Hz |
50 |
|
4 |
Rated capacity |
kVA |
150-1600 |
|
5 |
1min power frequency withstand voltage |
kV |
35 |
|
6 |
Lightning impulse voltage |
kV |
75 |
|
7 |
Cooling method |
|
ONAN |
|
8 |
Breaking current of high voltage backup fuse |
kA |
50 |
|
9 |
Breaking current of plug-in fuse |
kA |
2.5 |
|
10 |
Environment temperature |
℃ |
-35~40 |
|
11 |
Allowable Coil temperature rising |
℃ |
65 |
|
12 |
No-load voltage regulation |
|
±5% or±2*2.5% |
|
13 |
Noise level |
db |
50 |
|
14 |
IP degree |
|
IP43 |
◆Comparison of loss of different types of transformers
|
Capacity (kVA) |
Voltage9(kV) |
Connecting group |
No-load current% |
No load loss % |
Impedance voltage% |
Load loss (W) |
|||||
|
HV |
LV |
S9 |
S10 |
S11 |
S9 |
S10 |
S11 |
||||
|
160 |
10±5 or2*±2.5 |
0.4 |
Dyn11 Yyn0 |
1.4 |
1.4 |
0.2 |
400 |
320 |
255 |
4.0 |
2200 |
|
200 |
1.3 |
1.3 |
0.2 |
480 |
380 |
305 |
2600 |
||||
|
250 |
1.2 |
1.2 |
0.2 |
560 |
450 |
360 |
3050 |
||||
|
315 |
1.1 |
1.1 |
0.2 |
670 |
530 |
425 |
3650 |
||||
|
400 |
1.0 |
1.0 |
0.15 |
800 |
650 |
505 |
4300 |
||||
|
500 |
1.0 |
1.0 |
0.15 |
960 |
750 |
605 |
5100 |
||||
|
630 |
0.9 |
0.9 |
0.15 |
1200 |
910 |
755 |
6200 |
||||
|
800 |
0.8 |
0.8 |
0.15 |
1400 |
1080 |
980 |
4.5 |
7500 |
|||
|
1000 |
0.7 |
0.7 |
— |
1700 |
1260 |
— |
10300 |
||||
|
1250 |
0.6 |
0.6 |
— |
1950 |
— |
— |
12000 |
||||
◆Table of technical parameters of load switch adopted
|
Item |
Name |
Unit |
315A |
630A |
|
Rated voltage |
|
KV |
12 |
12 |
|
Max current |
|
A |
315 |
630 |
|
Rated frequency |
|
Hz |
50 |
50 |
|
Rated short-circuit closing current |
|
KA |
31.5 |
50 |
|
Rated short-term withstand current |
|
KA |
12.5 |
50 |
|
Rated short-term withstand time |
|
S |
2 |
2 |
|
Mechanical life |
|
Time |
2000 |
2000 |
|
Lightning impulse test |
Phase to ground |
KV |
75 |
75 |
|
Isolation fracture |
85 |
85 |
||
|
1min work frequency withstand voltage |
Phase to ground |
42 |
42 |
|
|
Isolation fracture |
48 |
48 |
||
|
Rated peak withstand current |
|
KA |
31.5 |
50 |

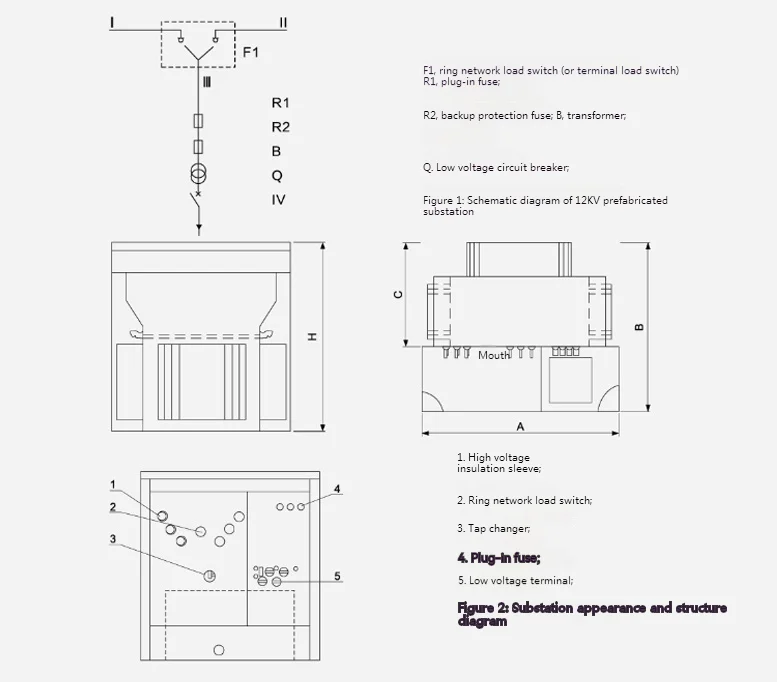

◆Dimensions of the American type pad-mounted transformer
|
ZBW-12 Pre-installed American Box Type Substation standard dimensions |
|||||||
|
Capacity(kVA) |
A |
B |
C |
D |
E |
F |
H |
|
100~250 |
1900 |
1650 |
1250 |
650/800 |
600 |
1410/1560 |
1450 |
|
315 |
1900 |
1650 |
1350 |
650/800 |
650 |
1460/1610 |
1450 |
|
400~500 |
1900 |
1750 |
1450 |
650/800 |
650 |
1490/1640 |
1550 |
|
630 |
1900 |
1750 |
1550 |
650/800 |
700 |
1580/1730 |
1550 |
|
800 |
1900 |
1850 |
1550 |
650/800 |
700 |
1640/1790 |
1650 |
|
1000 |
1900 |
1850 |
1650 |
650/800 |
700 |
1640/1790 |
1650 |
