Gas Filled Cabinet Instruments Transformer

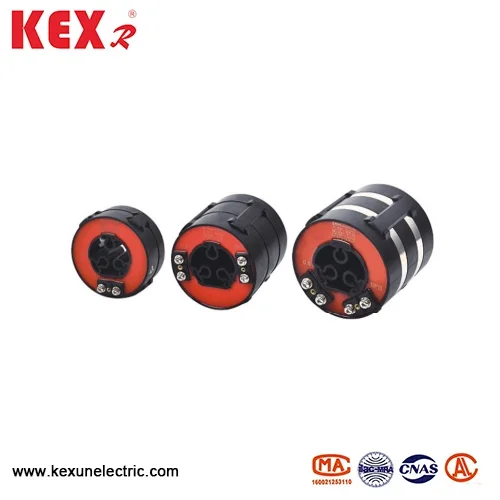

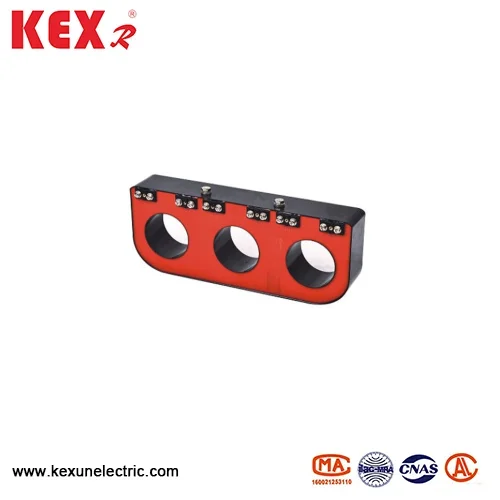

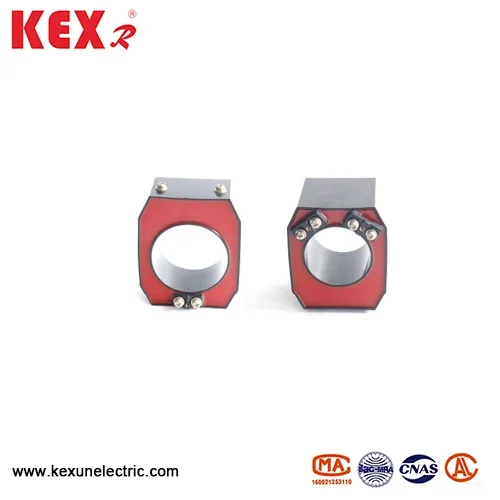

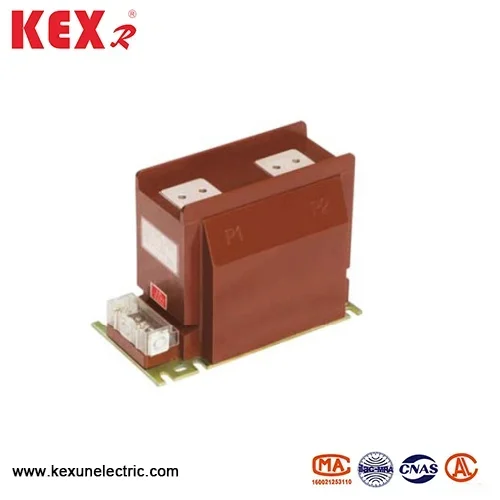

LMZT-10 Gas Filled Cabinet Instruments Transformer is a common 10kV bus-type current transformer produced by Kexun in China factory. The actual parameters shall be subject to the technical data of the manufacturer. Special attention should be paid to the matching of accurate grade and rated load when selecting type.
Model: LMZT-10
Brand：KEXR
Model: LMZT-10
Brand：KEXR
● Model meaning of the Gas filled cabinet instruments transformer
L －Current transformer
M －Through the heart
Z －Pouring type
T －Closed type
10 －Voltage class（KV）
● Design feature of LMZT-10 Type Gas filled cabinet instruments transformer
◆Insulation type: Epoxy Resin Casting and Totally Enclosed structure
◆Installation method: Busbar Through Type and Fixed Mounting
◆Winding configuration: Dual Winding design and Toroidal Core
●Typical application scenarios of LMZT-10 Type Gas filled cabinet instruments transformer
▶ Switch cabinet (10kV Switchgear)
▶ Compact Substation
▶ Industrial Power Distribution
● LMZT-10 Gas Filled Cabinet Instruments Transformer technical parameter table
The rated current ratio, accuracy level and rated load of Gas filled cabinet instruments transformer are shown in the following table. The rated secondary current is 5A or 1A.
|
Purpose |
Measuring CT |
Protection CT |
Double winding CT |
|||||||
|
Rated primary current |
Accuracy rated load(VA) |
Accuracy rated load(VA) |
Composite accuracy rated load (VA) |
|||||||
|
0.2S |
0.2 |
0.5 |
10P15 |
10P10 |
10P5 |
0.2S |
0.5 |
10P10 |
10P5 |
|
|
75 |
|
|
1 |
|
1 |
1 |
|
1 |
1 |
1 |
|
100 |
|
|
1 |
|
1 |
1 |
|
1 |
1 |
1 |
|
150 |
|
|
1 |
|
1 |
1 |
|
2.5 |
1 |
1 |
|
200 |
|
1 |
2.5 |
|
2.5 |
3.75 |
|
2.5 |
1 |
1 |
|
300 |
1 |
2.5 |
3.75 |
1 |
3.75 |
5 |
1 |
3.75 |
2.5 |
3.75 |
|
400 |
2.5 |
3.75 |
5 |
1.5 |
5 |
7.5 |
1.5 |
3.75 |
5 |
7.5 |
|
500 |
3.75 |
3.75 |
5 |
2.5 |
5 |
7.5 |
2.5 |
3.75 |
5 |
7.5 |
|
600 |
5 |
5 |
7.5 |
3.75 |
7.5 |
10 |
3.75 |
7.5 |
7.5 |
10 |

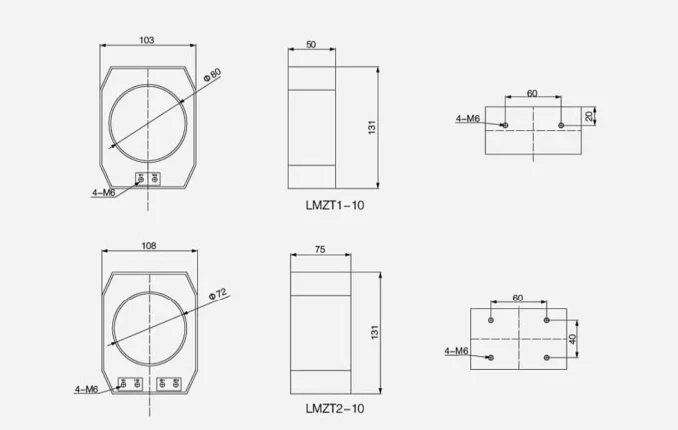

● Dimensions of the LMZT-10 Gas Filled Cabinet Instruments Transformer
Hot Tags: Gas Filled Cabinet Instruments Transformer
Send Inquiry
