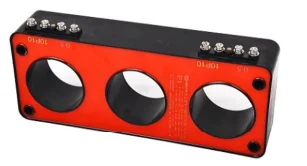

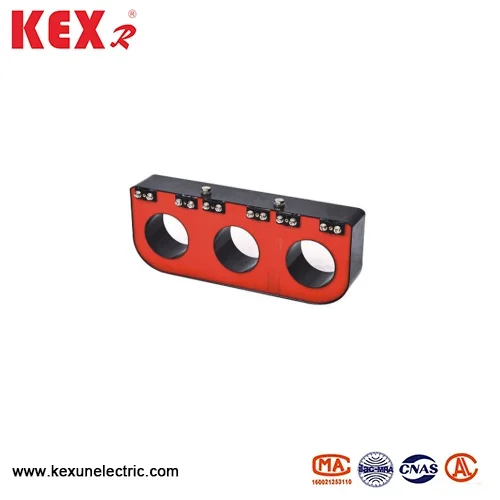

Gas Filled Cabinet Current Transformer
LSY-10 gas filled cabinet current transformer produced by Kexun in China factory is a key measuring and protecting element used in gas insulated switchgear, which is mainly used for current monitoring, energy metering, relay protection and so on. It can meet the special requirements of high insulation, compactness and long-term stability.
Model: LSY-10
Brand：KEXR
Model: LSY-10
Brand：KEXR
● Model meaning
L-Current transformer
S-Three phase
Y-All in one
10-Voltage class
● Product overview of Gas filled cabinet current transformer
Gas filled cabinet current transformer is the core component of GIS switchgear. Its high insulation, compactness and long service life make it an ideal choice for medium and high voltage distribution systems. Attention should be paid to accuracy, installation mode, environmental protection and compatibility with switchgear when selecting the type. With the development of smart grid in the future, digital and environmentally friendly current transformers will become the mainstream.
● Gas filled cabinet current transformer technical parameter table
|
Purpose |
Measuring CT |
Protection CT |
Double winding CT |
|||||||
|
Rated primary current |
Accuracy rated load(VA) |
Accuracy rated load(VA) |
Composite accuracy rated load (VA) |
|||||||
|
0.2 |
0.2 |
0.5 |
10P20 |
10P15 |
10P10 |
0.2S |
0.5 |
10P15 |
10P10 |
|
|
50 |
|
|
1 |
|
|
1 |
|
1 |
|
|
|
75 |
|
|
1 |
|
|
1 |
|
1 |
|
1 |
|
100 |
|
|
2.5 |
|
|
1 |
|
1 |
|
1 |
|
150 |
|
|
2.5 |
|
|
2.5 |
|
1.5 |
|
|
|
200 |
|
2.5 |
2.5 |
|
|
5 |
|
2.5 |
|
5 |
|
300 |
2.5 |
2.5 |
5 |
|
|
5 |
|
2.5 |
|
5 |
|
400 |
5 |
5 |
5 |
|
|
7.5 |
|
5 |
|
7.5 |
|
500 |
5 |
5 |
10 |
|
|
10 |
|
5 |
|
10 |
|
600 |
5 |
10 |
10 |
|
|
10 |
|
5 |
|
10 |
|
800 |
10 |
10 |
10 |
|
|
10 |
|
5 |
|
10 |
|
1000 |
10 |
10 |
10 |
|
|
10 |
|
5 |
|
10 |
|
1200 |
10 |
10 |
10 |
|
|
10 |
|
5 |
|
10 |
