Gas Filled Cabinet Ct Meter

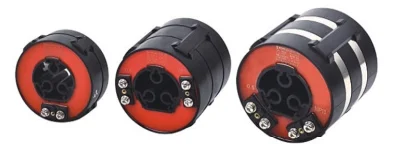

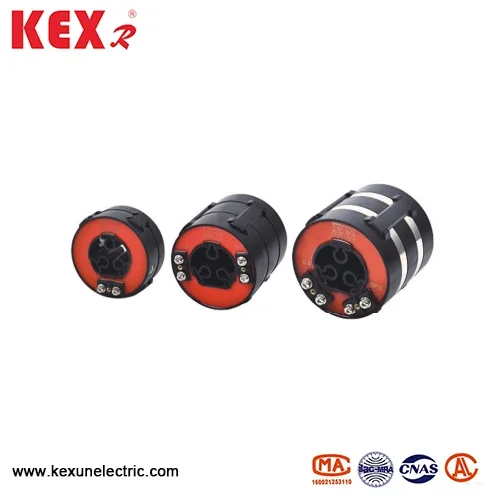

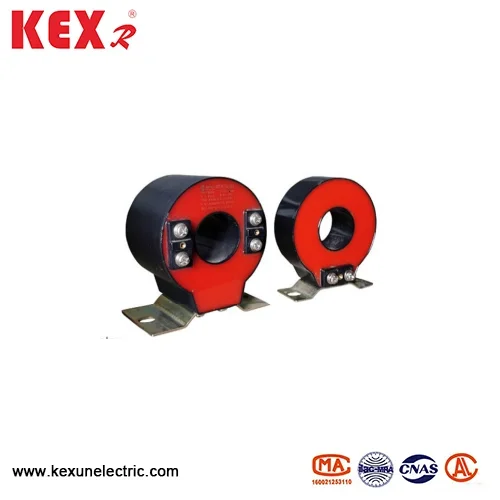

LMZK-10 Type Gas Filled Cabinet CT Meter is a current transformer specially used in inflatable cabinets, which is produced and developed by China supplier Kexun. It needs to be maintained with special inflatable equipment, and the air chamber pressure must be confirmed to be normal (≥0.4MPa) before operation.
Model: LMZK-10
Brand：KEXR
Model: LMZK-10
Brand：KEXR
● Model meaning of the Gas filled cabinet ct meter
L －Current transformer
M －Through the heart
Z －Pouring type
K －Open close type
10 －Voltage class（KV）
● Main functions of the LMZK-10 type Gas filled cabinet ct meter
▶ Metering
▶ Fault Detection
▶ Relay protection
● Gas filled cabinet ct meter technical parameter table
The rated current ratio, accuracy level and rated load of Gas filled cabinet ct meter are shown in the following table. The rated secondary current is 5A or 1A.
|
Purpose |
Measuring CT |
Protection CT |
Double winding CT |
|||||||
|
Rated primary current |
Accuracy rated load(VA) |
Accuracy rated load(VA) |
Composite accuracy rated load (VA) |
|||||||
|
0.2 |
0.5 |
1 |
10P15 |
10P10 |
10P5 |
0.5 |
1 |
10P10 |
10P5 |
|
|
50 |
|
2.5 |
1 |
|
1 |
1 |
1 |
1 |
1 |
1 |
|
75 |
2.5 |
2.5 |
3.75 |
|
1 |
2.5 |
1 |
1 |
1 |
1 |
|
100 |
2.5 |
2.5 |
3.75 |
|
1 |
3.75 |
1 |
2.5 |
1 |
2.5 |
|
150 |
3.75 |
3.75 |
5 |
|
1 |
3.75 |
1 |
2.5 |
1 |
2.5 |
|
200 |
3.75 |
3.75 |
5 |
|
1 |
3.75 |
3.75 |
5 |
1 |
2.5 |
|
300 |
5 |
5 |
7.5 |
|
2.5 |
5 |
5 |
7.5 |
2.5 |
3.75 |
|
400 |
7.5 |
7.5 |
10 |
1 |
5 |
7.5 |
5 |
7.5 |
3.75 |
5 |
|
500 |
10 |
10 |
10 |
1.5 |
5 |
7.5 |
5 |
10 |
3.75 |
5 |
|
600 |
10 |
10 |
10 |
2.5 |
5 |
10 |
7.5 |
10 |
5 |
7.5 |
|
800 |
15 |
15 |
20 |
3.75 |
10 |
15 |
7.5 |
15 |
7.5 |
10 |
|
1000 |
15 |
15 |
20 |
5 |
10 |
15 |
7.5 |
15 |
7.5 |
10 |
|
1200 |
15 |
15 |
20 |
7.5 |
10 |
15 |
7.5 |
15 |
7.5 |
10 |

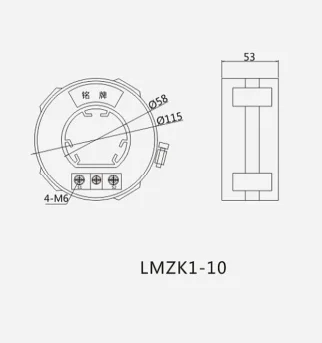

● Dimensions of the Gas filled cabinet ct meter
