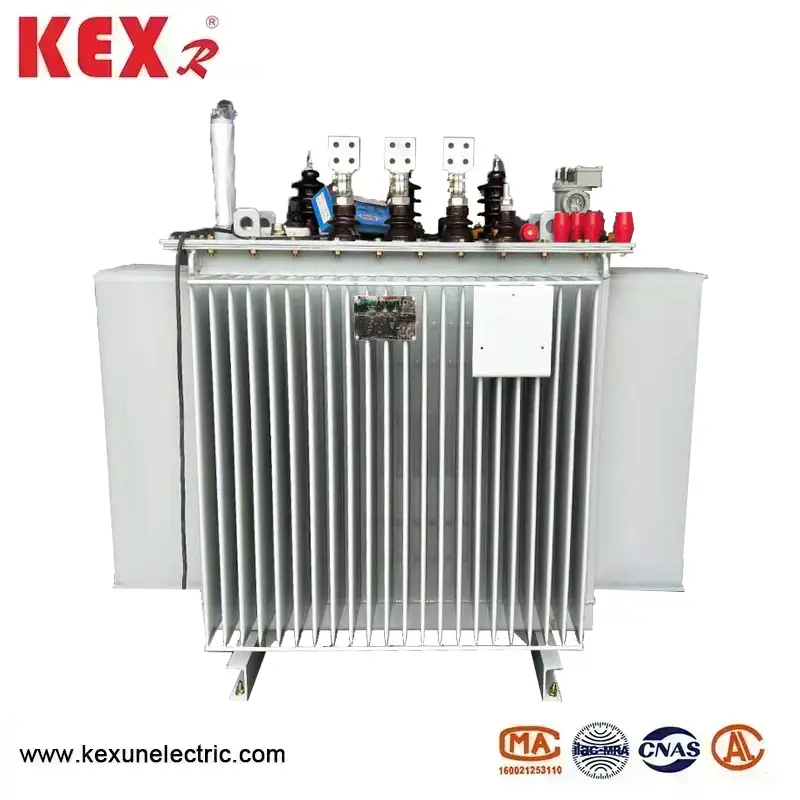

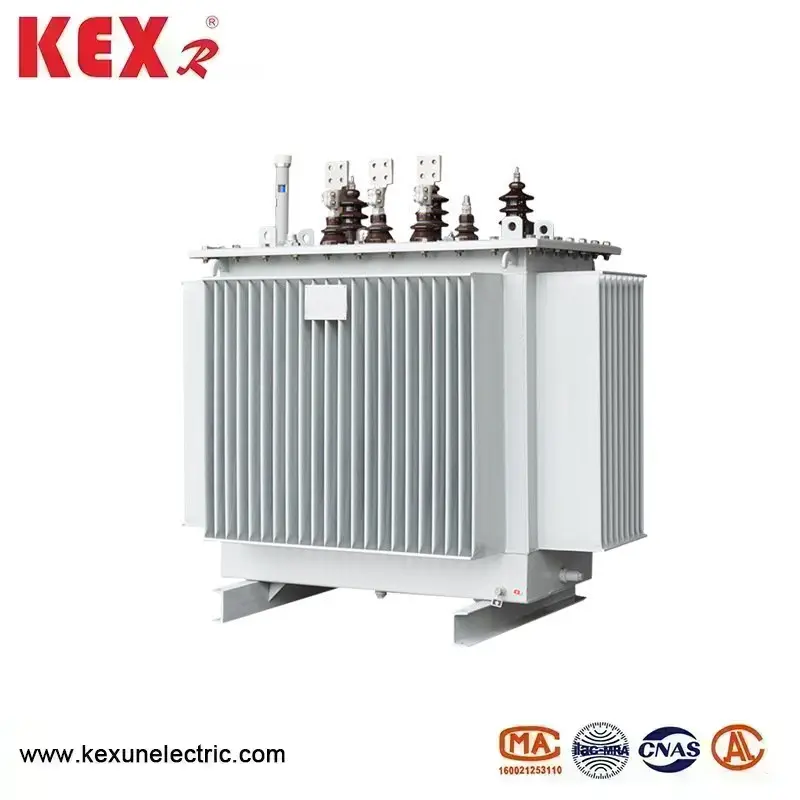

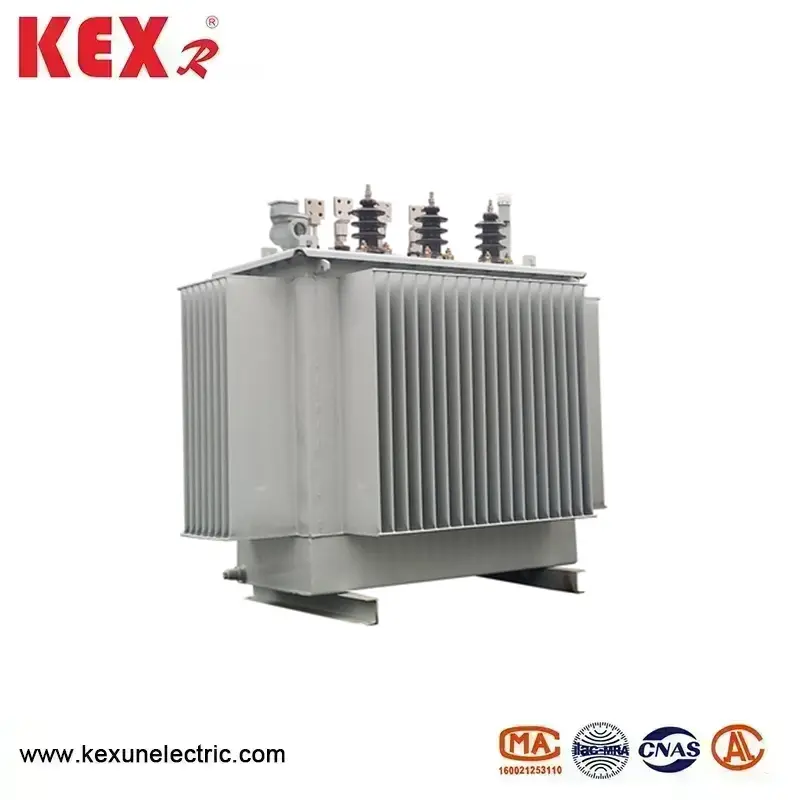

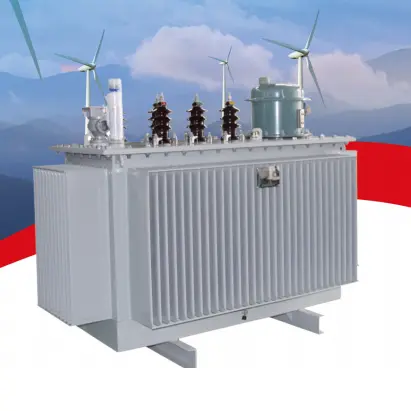

High Voltage Regulating Transformer

● High Voltage Regulating Transformer Main features

▶The overall device has a large capacity, low loss, small size, and is easy to install and maintain;

▶Automatically adjust the gear of the three-phase on load tap changer by tracking voltage changes, with reliable operation and high voltage adjustment accuracy

▶The voltage reference, action delay, allowable range, and frequency limit can be adjusted as needed, and the parameter settings are flexible and convenient;

▶Display the number of gear actions and current gear of the SVR on load tap changer, with indications for the highest and lowest gear

▶Equipped with gear upper and lower limit protection, action time limit function, effectively improving the reliability of the product

▶The controller has over voltage and under voltage protection functions. When the line is in an over voltage or under voltage state.the controller automatically locks; Ensure safe operation of on load tap changers

▶The controller adopts industrial grade control chips, which have high reliability, strong anti-interference ability, and can adapt to harsh outdoor environments;

▶The  High Voltage Regulating Transformer Main features Equipped with RS485 communication interface, the controller's parameters can be viewed and modified within 30 meters from the installation point through wireless communication module.

▶Cloud or SM card remote control can also be added.

● Using conditions of High Voltage Regulating Transformer

▶Altitude:≤ 2000m

▶Environmental temperature: -25 °C ~+45 °C

▶Relative humidity: less than 90%

▶Pollution prevention capability: Level lll

▶Installation inclination:<2%

 There is no pollution or corrosive medium around the device that seriously affects its insulation performance, and there is no fire or explosion hazard in the workplace, and no severe vibration.Attention: When the working environment exceeds the above conditions, users need to provide special instructions when placing orders.

● High Voltage Regulating Transformer  meet the Standards

◆Production design standards

▶JB8749-1998 General Technical Requirements for Voltage Regulators

▶GB1094-2013 Power Transformers

▶GB/T6451-2008 Technical Parameters and Requirements for Three phase Oi immersed Power Transformers

▶Guidelines for the Selection of Power Transformers (GB/T17468-1998)GB10230-2007 On load tap changer

▶Guidelines for the application of on load tap changers (GB/T1058-1989)o DL/T572-2010 0perating ▶Regulations for Power Transformers

◆Basic standards for use

The installation point voltage of the SVR line automatic voltage regulator meets the requirements of the national standard GB/T12325-2008 for power supply voltage deviation: the sum of the absolute values of the positive and negative deviations of the power supply voltage of 35kV and above shall not exceed 10% of the rated voltage; The allowable deviation of three-phase power supply voltage of 20kV and below is + 7% of the rated voltage; The allowable deviation of 220V single-phase power supply voltage is+7%and -10% of the rated voltage.

◆Technical Parameters of  SVR Type High Voltage Regulating Transformer

● SVR type  High Voltage Regulating Transformer installation instructions

1. The installation of the product is the responsibility of the user and the supplier can send after-sales service personnel to the Site for guidance.

2. After the equipment is in place, a grounding wire should be used for multi-point grounding. The grounding resistance should not exceed 4 ohms, and the depth of the grounding body buried underground should comply with the grounding requirements of the power regulations.

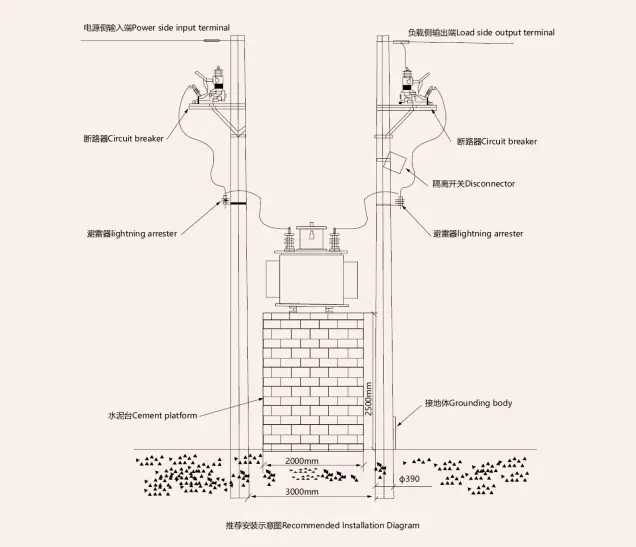

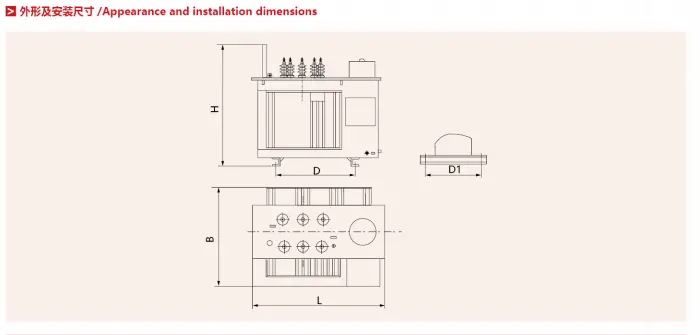

The installation reference diagram is as follows:
