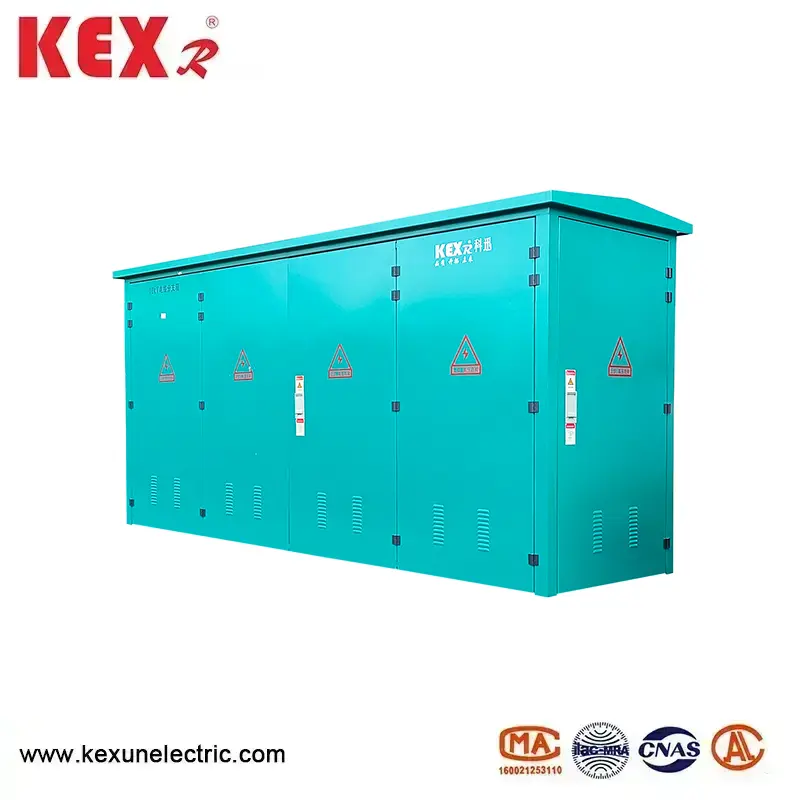

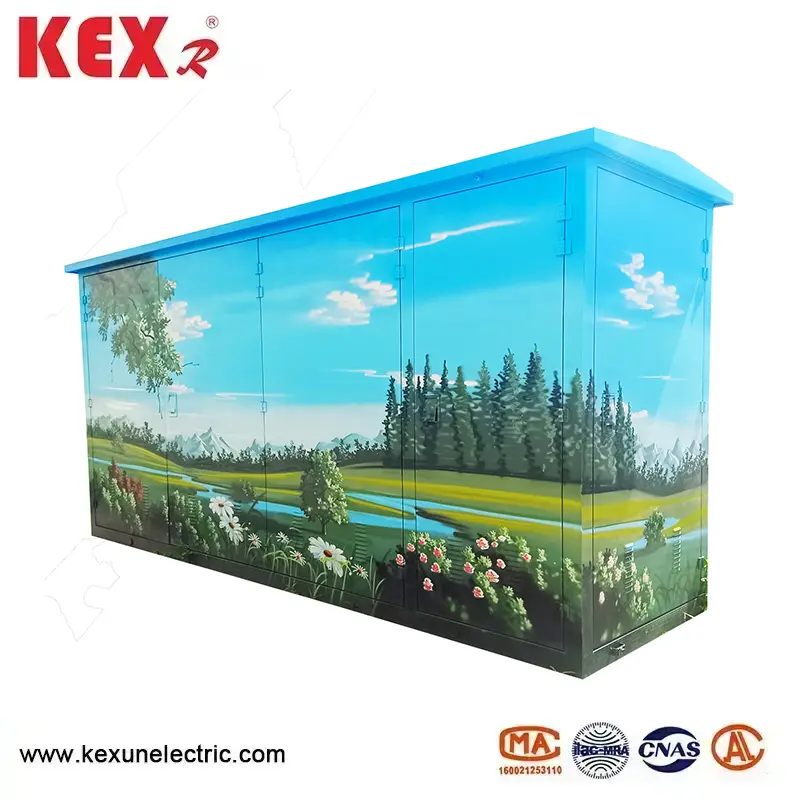

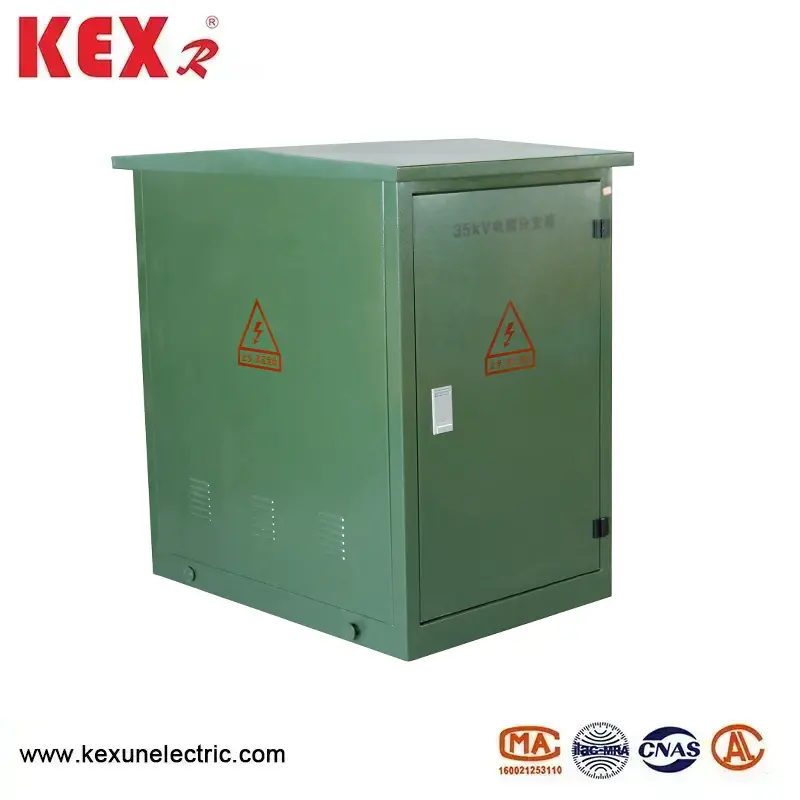

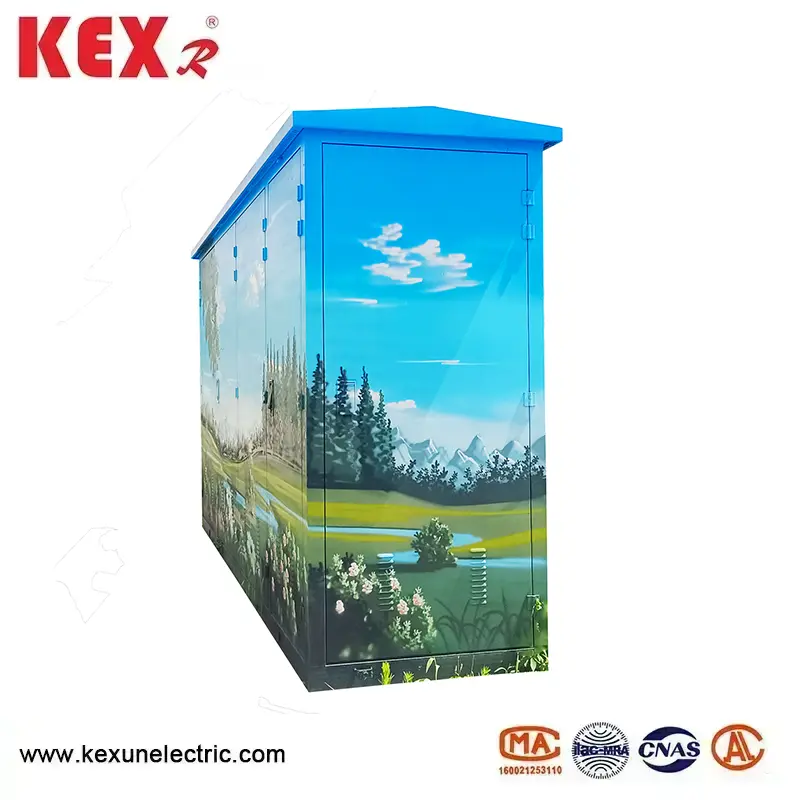

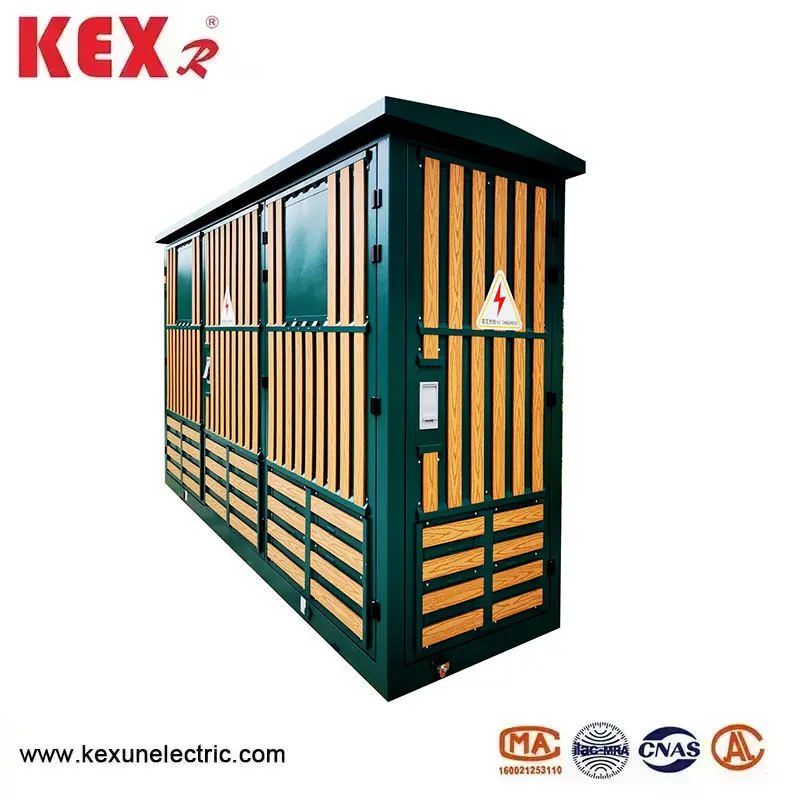

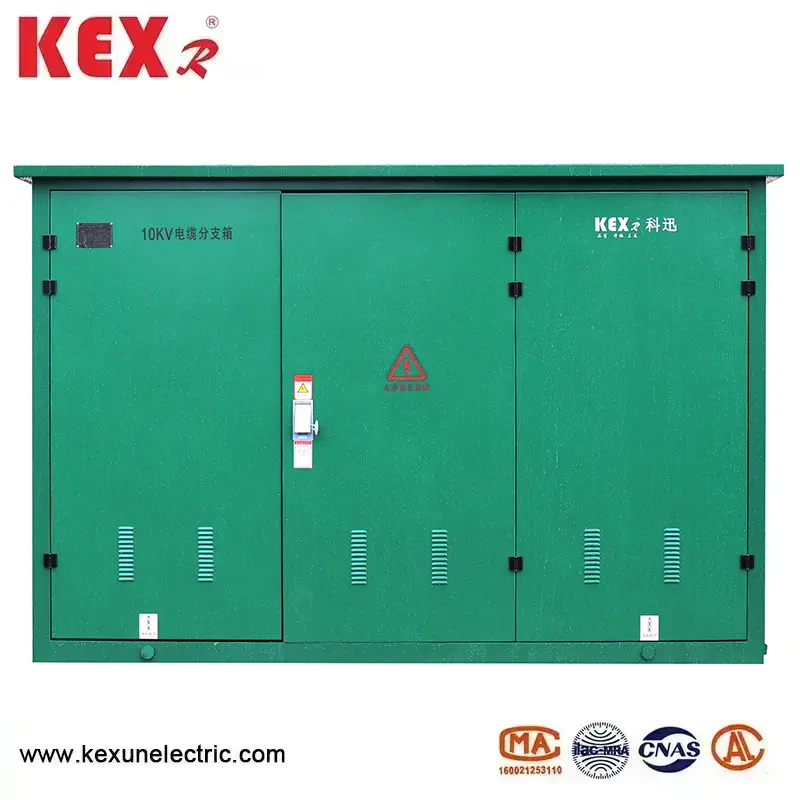

Insulated Cable Distribution Box
In recent years, the 24 kV Insulated Cable Distribution Box specially produced by Kexun factory in China has been widely used in power distribution system, which is characterized by two-way door opening, using wall bushing as the connecting bus bar, short length, clear cable arrangement, and no need for large-span crossing of three-core cables. The cable connector used conforms to DIN47636 standard.
Model: 35KV
Brand：KEXR
Model: 35KV
Brand：KEXR
● Technical parameter of 24KV Insulated Cable Distribution Box
|
Rated Voltage |
24KV |
|
Rated current |
630A |
|
Dynamic stable current |
50KA/0.3s |
|
Heat stable current |
20KA/0.3s |
|
1min working frequency withstand voltage |
42KV |
|
15 mins DC Withstand voltage |
52KV |
|
Lighting impulse withstand voltage |
105KV |
|
Shell IP degree |
IP33 |
● Using Conditions of the 24KV Insulated Cable Distribution Box
Ambient temperature of the 24KV Cable Termination Box: -30~40℃
Wind speed: equivalent to 34m/s and less than 700Pa
Humidity: the average daily relative humidity is not more than 95%
The average monthly relative humidity is not more than 95%
Shockproof: the horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s²
Inclination of 24KV Insulated Cable Distribution Box installation site: Less than 3
Installation environment: The surrounding air should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and the installation site should not be violently vibrated.

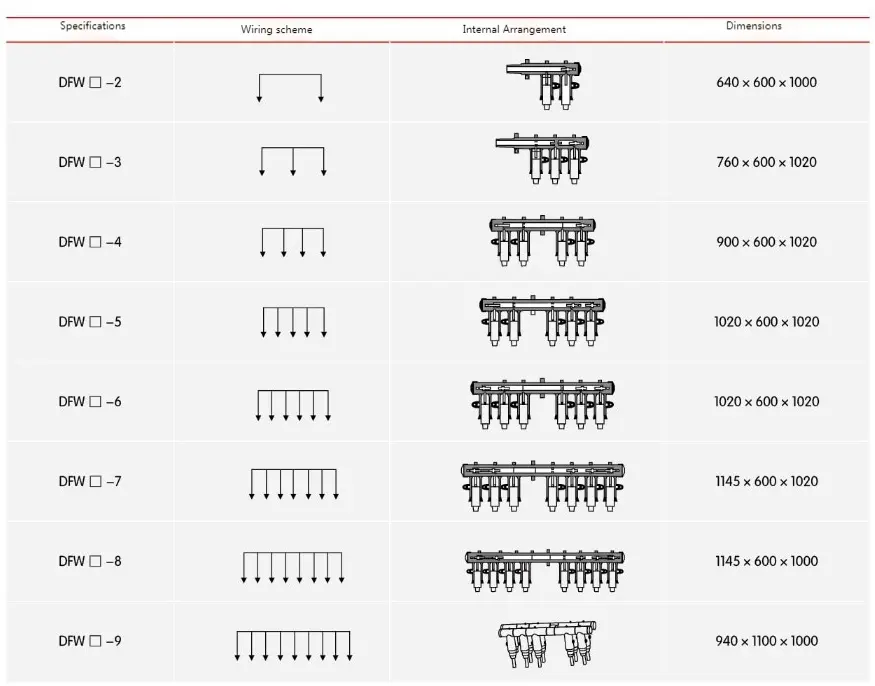

● Order number description of the 24KV Insulated Cable Distribution Box
