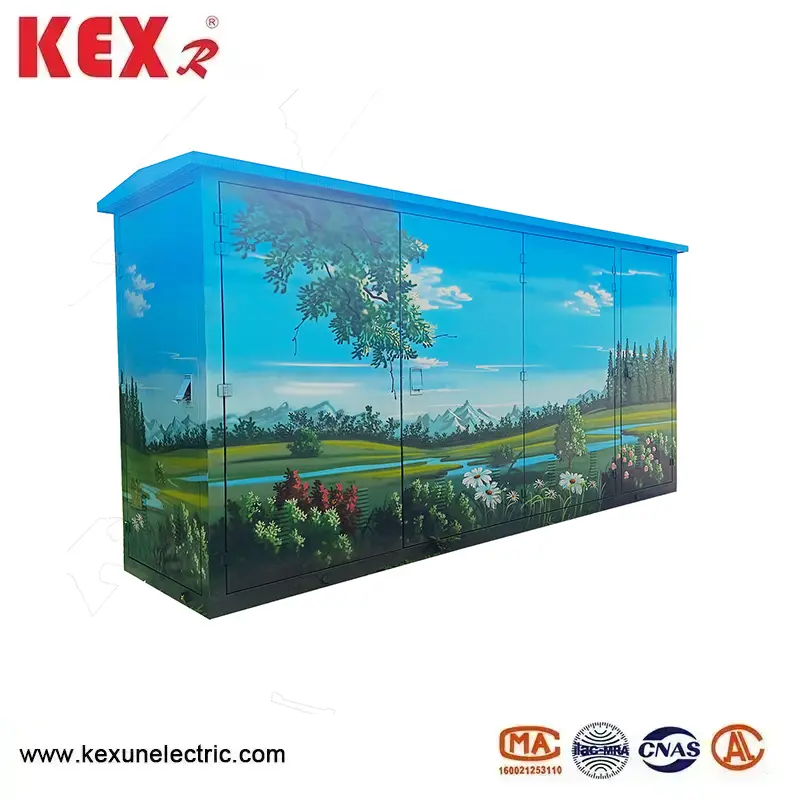

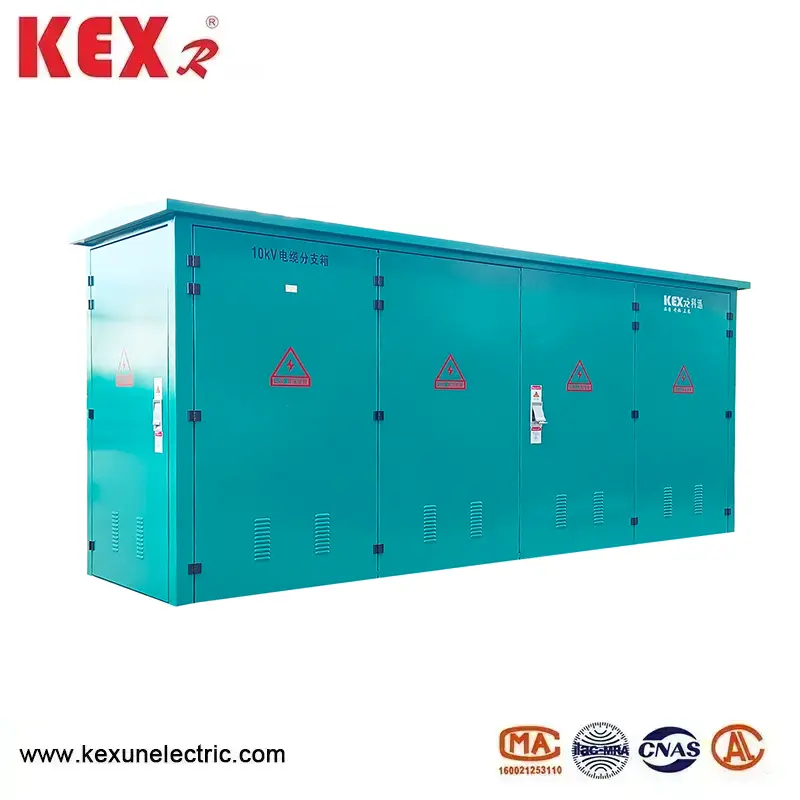

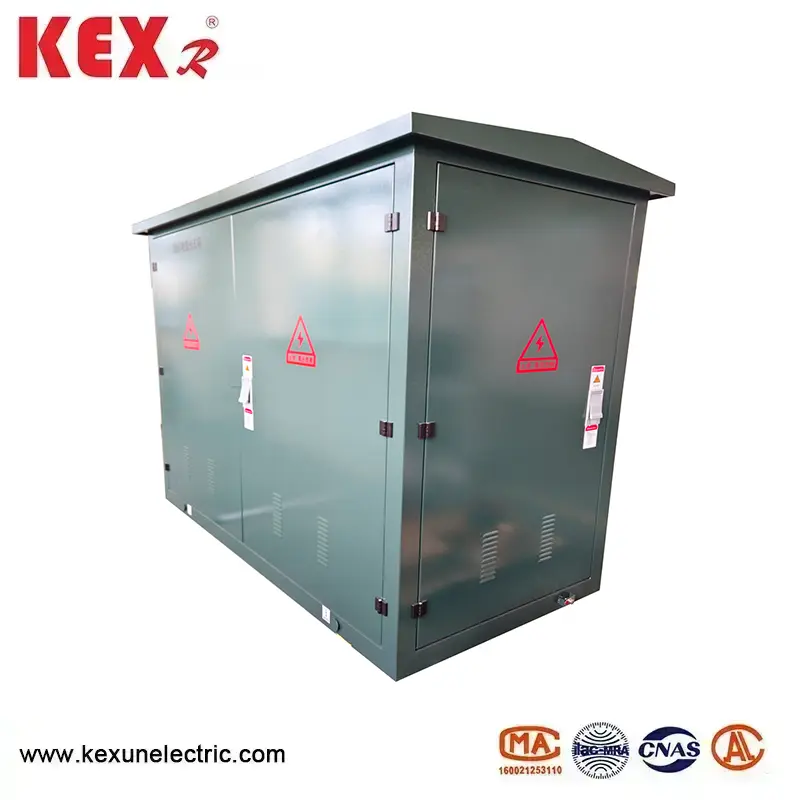

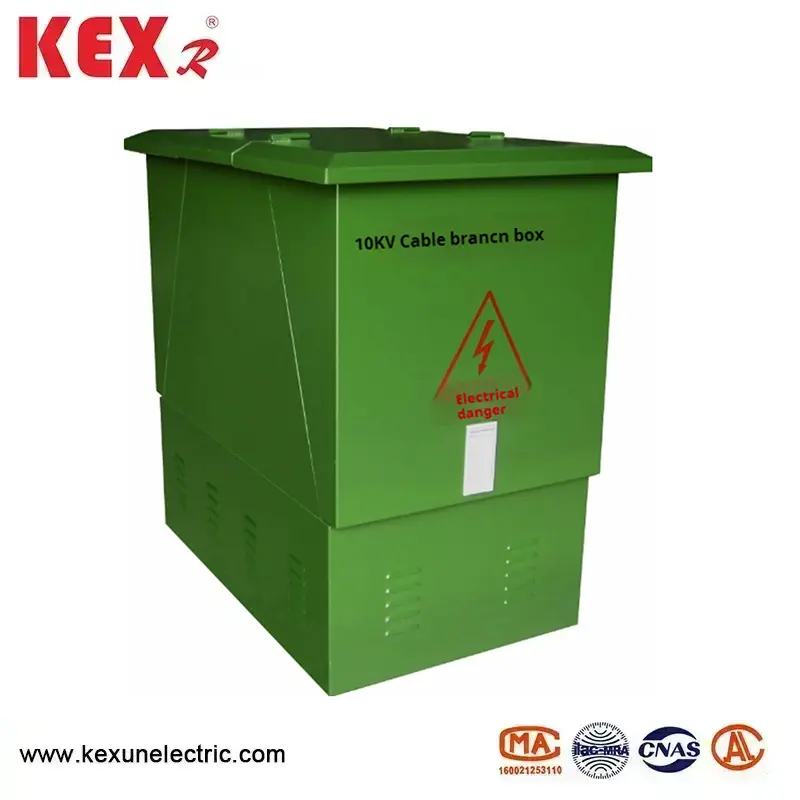

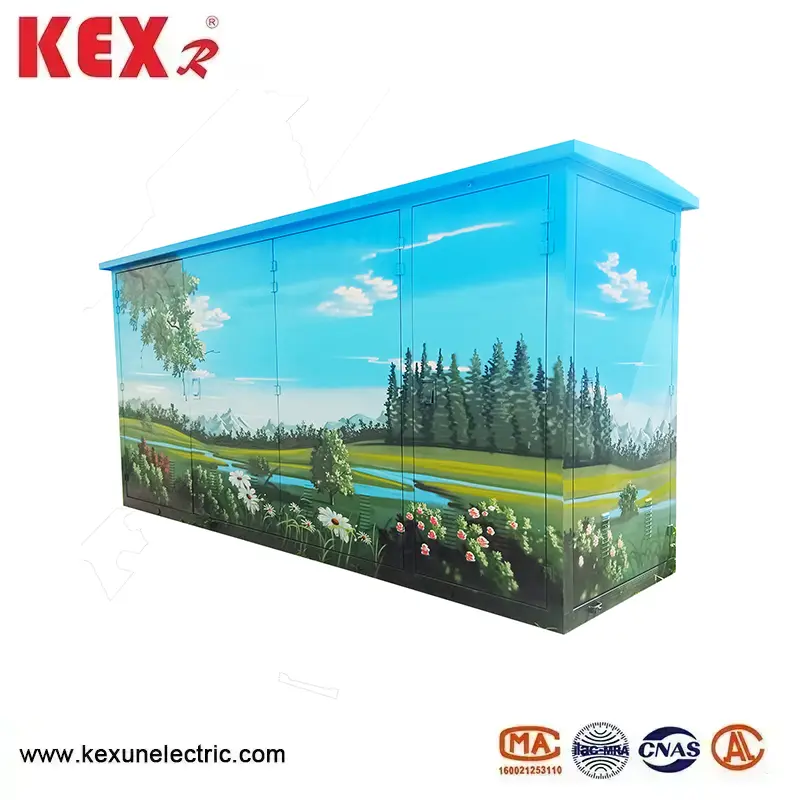

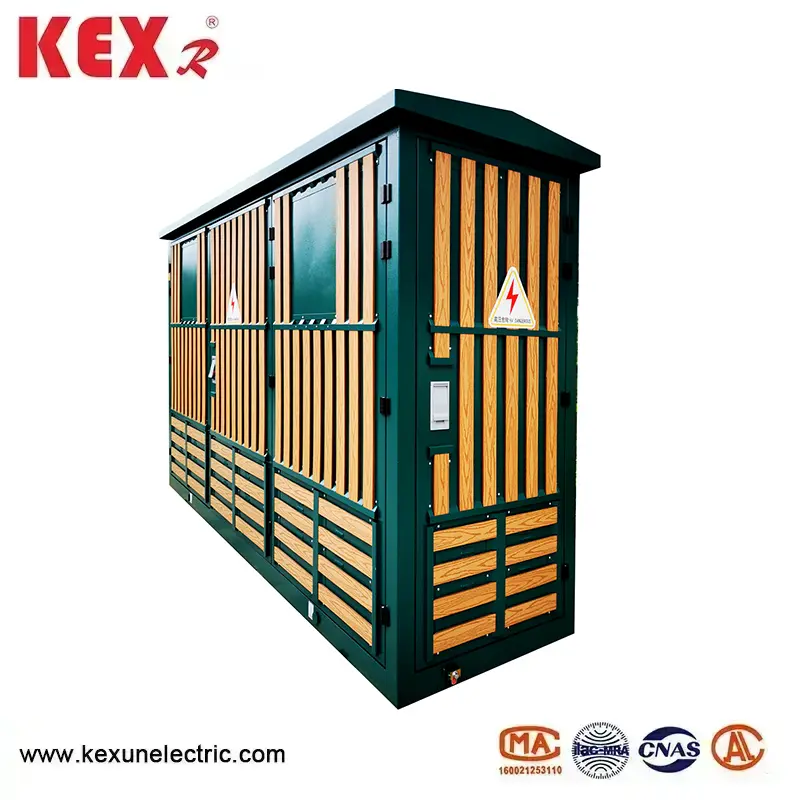

Cable Termination Box
The 10KV Cable Termination Box, which is specially produced by China power transmission and distribution supplier Kexun, is a cable engineering equipment widely used in power distribution system in recent years. Its main features are bidirectional door opening and the use of wall bushing as the connecting bus bar, and it has obvious advantages such as short length, clear cable arrangement, and three-core cables without long-span crossing.
Model: 10KV
Brand：KEXR
Model: 10KV
Brand：KEXR
● Using Conditions of The 10KV Cable Termination Box
Ambient temperature of the10KV Cable Termination Box: -30~40℃
Wind speed: equivalent to 34m/s and not more than 700Pa
Humidity: the average daily relative humidity is not more than 95%
The average monthly relative humidity is not more than 95%
Shockproof: the horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s²
Inclination of 10KV Cable Termination Box installation site: Less than 3
Installation environment: The surrounding air should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and the installation site should not be violently vibrated.

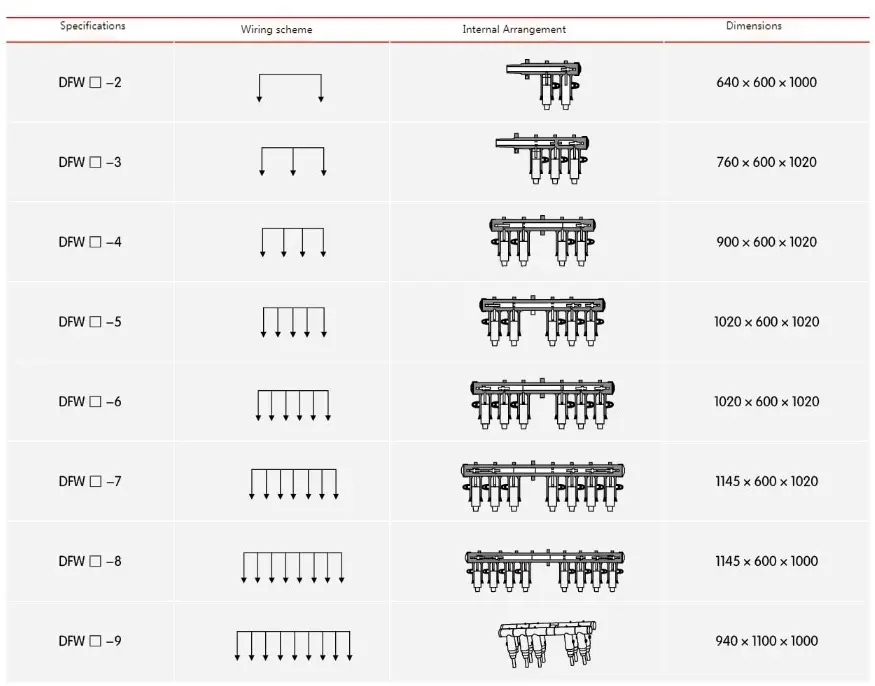

● Order number description of the 10KV Cable Termination Box
● Technical parameter of the 10KV Cable Termination Box
|
Rated Voltage |
10KV |
|
Rated current |
630A |
|
Dynamic stable current |
50KA/0.3s |
|
Heat stable current |
20KA/0.3s |
|
1min working frequency withstand voltage |
42KV |
|
15 mins DC Withstand voltage |
52KV |
|
Lighting impulse withstand voltage |
105KV |
|
Shell IP degree |
IP33 |
