How Does Photovoltaic Step-Up Box Transformer Improve The Grid-Connected Efficiency Of Your Photovoltaic Power Station?

In a photovoltaic power generation system, how to efficiently, safely and stably transmit direct current to the grid? This is where the Photovoltaic Step-up Box Transformer plays a key role. As the core equipment connecting photovoltaic power generation and the grid, it not only improves the system operation efficiency, but also ensures the grid-connected safety of the entire project.

What Is Photovoltaic Step-up Box Transformer?

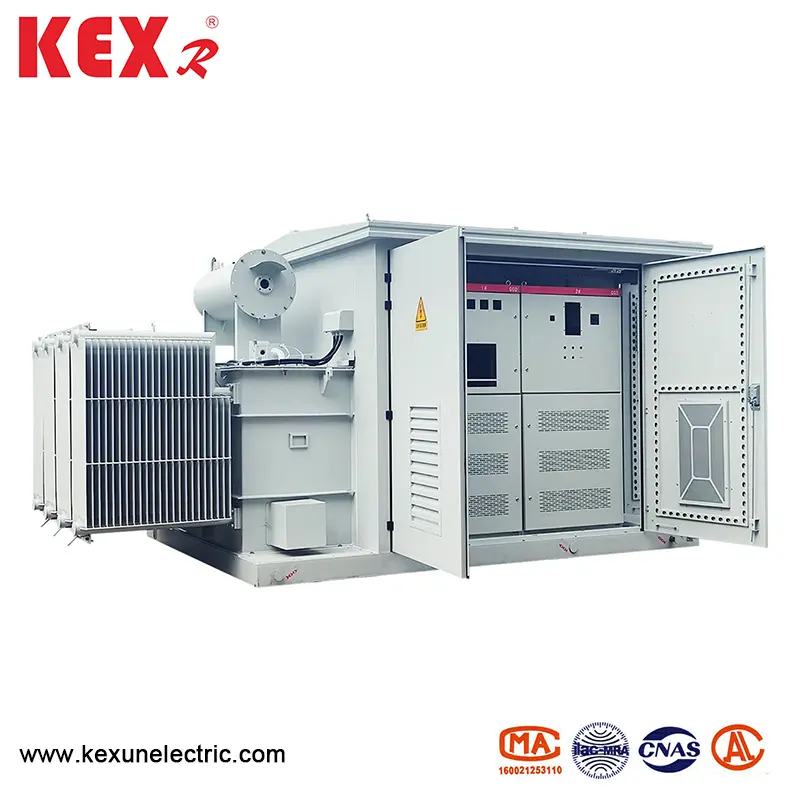

Photovoltaic Step-up Box Transformer, is an integrated electrical device, usually composed of three parts:

1. Photovoltaic inverter (optional): converts the direct current generated by photovoltaic modules into alternating current, and outputs common voltages such as 270V, 315V, and 400V.

2. Step-up transformer: further boosts low-voltage alternating current to 10kV or 35kV to meet the national grid access standards.

3. High-voltage switchgear: including circuit breakers, disconnectors, protection devices, etc., responsible for grid-connected control and system protection.

Some projects will also use "pure step-up box transformers" without inverters, which can be flexibly configured according to project requirements.

What Significant Changes Can The Photovoltaic Step-Up Box Transformer Bring?

1. Improve power transmission efficiency

Through efficient step-up, the system can significantly reduce line losses and improve long-distance power transmission capabilities. It is particularly suitable for large ground power stations or distributed projects.

2. Enhance system safety

The box transformer has multiple protection mechanisms such as overcurrent, overvoltage, short circuit, and islanding effect, which can effectively prevent sudden electrical failures and ensure the stable operation of the entire photovoltaic system.

3. Realize intelligent remote monitoring

Support real-time collection of data such as voltage, current, and power, and can be connected to the remote monitoring platform to realize fault warning, operation status monitoring, and maintenance management automation.

4. Improve project benefits

With low-loss materials such as amorphous alloy cores or energy-saving silicon steel sheets, the box transformer has lower operating energy consumption, effectively reduces power generation losses, and brings customers a higher return on investment.

What Application Scenarios Is the Photovoltaic Step-Up Box Transformer Suitable For?

· Ground-based centralized photovoltaic power station

· Distributed industrial and commercial rooftop photovoltaic system

· Various new energy projects such as agricultural photovoltaic complementation and fishery photovoltaic complementation

· Areas with complex environment and changeable climate such as seaside and plateau

With its excellent sealing (the protection level is generally IP54 or above), it can still operate stably and perform well even in harsh environments such as humidity, dust and heavy salt fog.

Why Is Photovoltaic Step-Up Box Transformer A Key Device For The New Generation Of Smart Grid Connection?

In the context of the growing development of smart grids, Photovoltaic Step-up Box Transformer not only completes the basic tasks of boosting and protection, but also has:

· Reactive power compensation (SVG) function to stabilize grid voltage

· Harmonic suppression function to optimize power quality

· Modular design for rapid deployment and installation

These features make it indispensable in modern new energy projects, especially in areas with strict requirements on grid connection quality.

Why Choose Us?

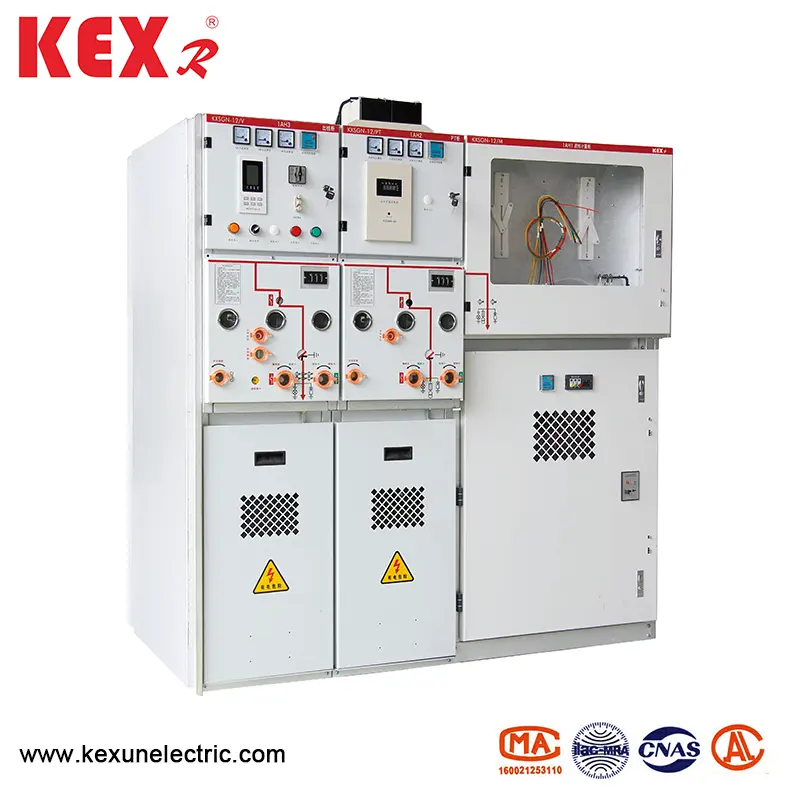

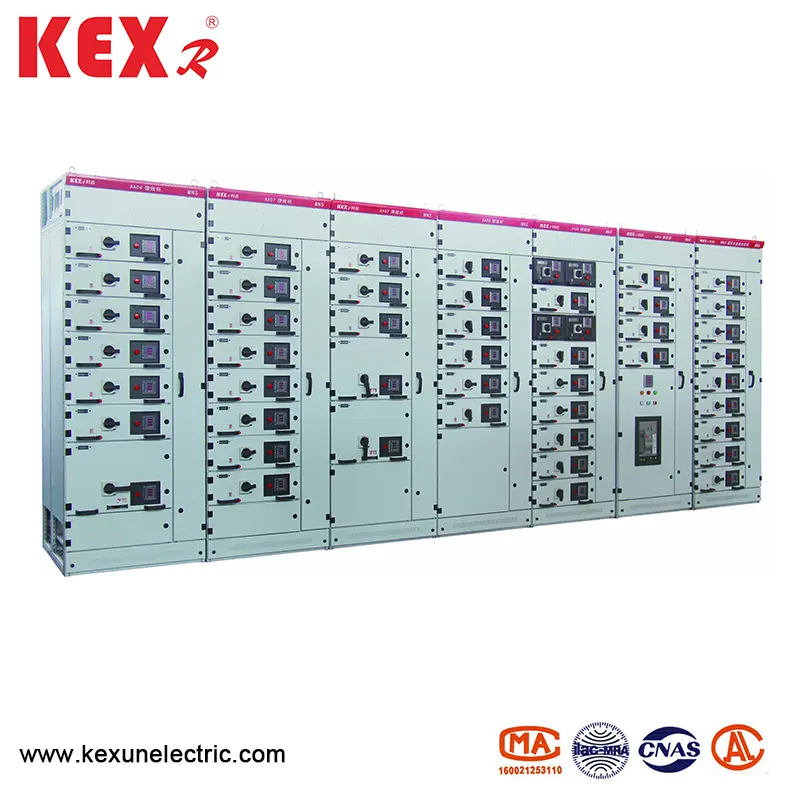

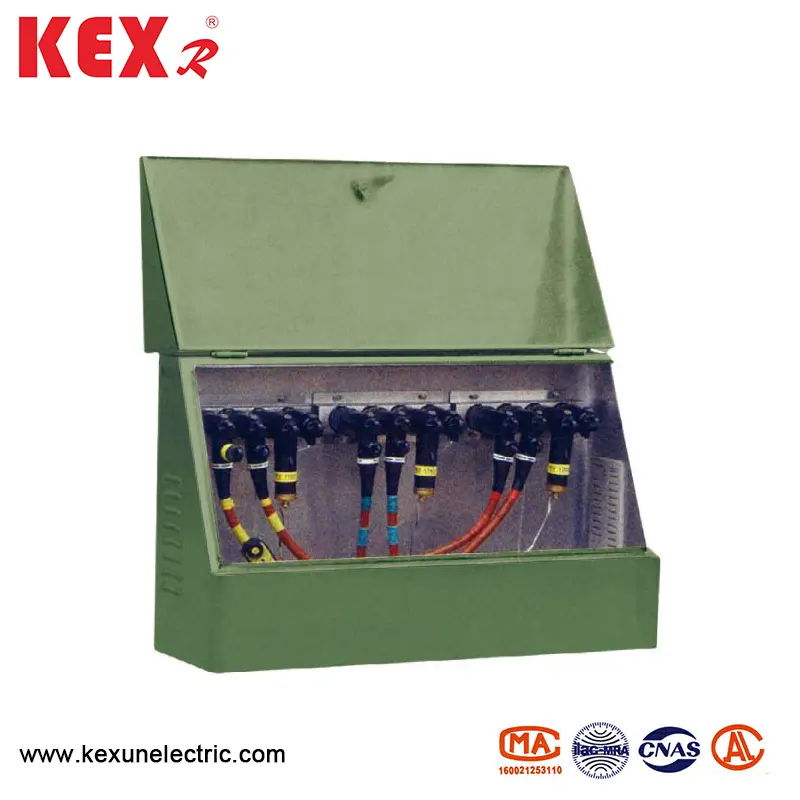

Kexun Electric Co., Ltd. was founded in 2010, which is a scientific and technological enterprise specializing in the research, production, sales and service of power transmission and transformation equipment of 35KV and below. The main products are: high-voltage inflatable cabinets, high voltage ring main unit, cable branch box, cable distribution boxes, box-type substations, power transformers and so on. Learn more about what we offer by visiting our website at https://www.kexunelectric.com/. For questions or support, contact us at sales01@kexunelectric.com.
