LV Switchgear

● Regular using conditions

◆ The altitude of the GCK LV switchgear less than 2000m

◆ The ambient air temperature is not higher than +40℃, and the average temperature within 24h is not higher than +35℃, and the ambient air temperature is not lower than-50℃

◆ Atmospheric conditions: the air is clean, and the relative humidity is not more than 50% when the temperature is +40℃, and higher relative humidity is allowed when the temperature is low, for example, 90% when the temperature is +20℃

◆ The GCK LV switchgear shall be installed in places free from fire, dry explosion, serious pollution, chemical corrosion and violent vibration

◆ The inclination with the vertical plane shall not exceed 5; This product is suitable for transportation and storage at the following temperatures: -25℃~+55℃, and it will not exceed+70℃ in a short time (no more than 24h); If the above conditions of use cannot be met, the user shall raise it with the manufacturer when ordering and settle it through consultation.

● Main technical parameters of the GCK LV switchgear

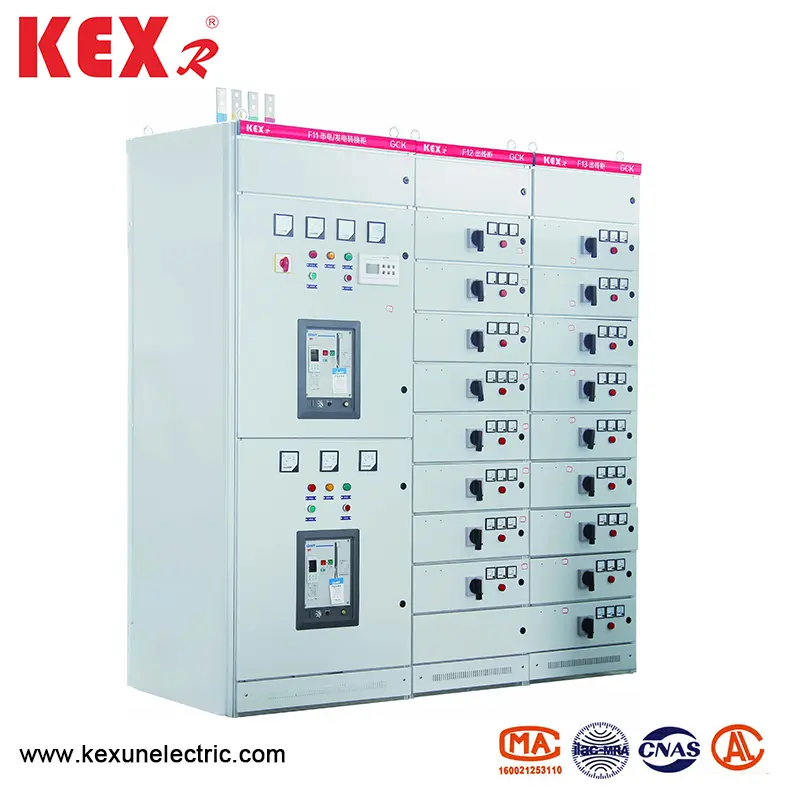

● Architectural feature

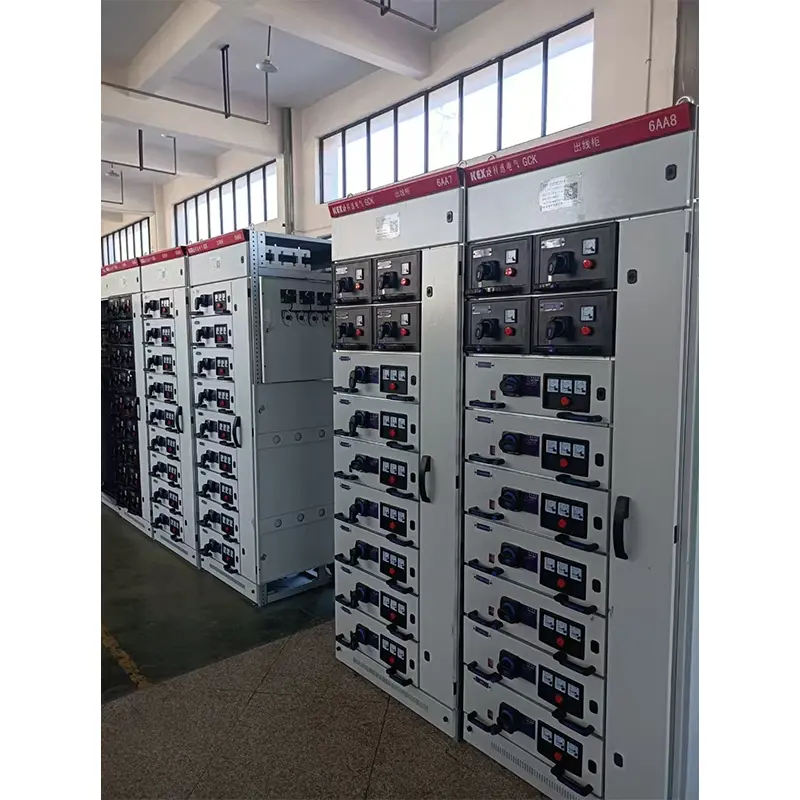

The drawer function unit and the door are mechanically interlocked by the operating mechanism of the main switch. When the main switch is in the closing position, the door cannot be opened, and the operating mechanism can be locked in the closing or opening position with an additional padlock. The compartments of functional units are separated by metal plates, and the drawers have good interchangeability, and have working position, test position and separation position. When the drawer is pushed to a certain position, the drawer will be automatically positioned. At this time, the drawer on the left side of the drawer can be pulled to release the positioning and enter the next position. When the drawer is pulled out of the cabinet, it also has the function of preventing falling off.

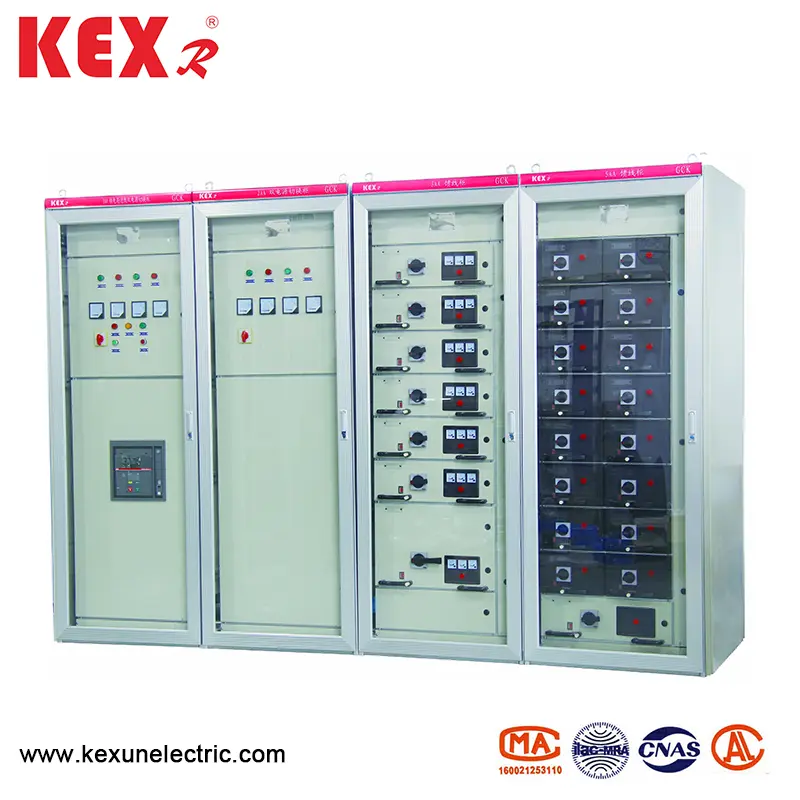

▶The cabinet with fixed schemes such as capacitance compensation and metering has the same appearance and the same horizontal bus position as the drawer cabinet. Thereby ensuring that the drawer-type cabinet and the fixed cabinet can be used side by side.

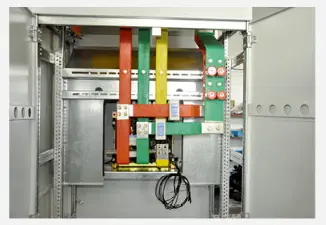

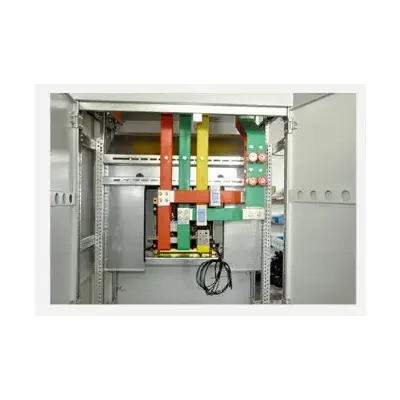

▶Busbar system: The busbar of cabinet adopts three-phase five-wire system, single busbar is used when the rated current of horizontal busbar is below 1250A, and double busbar is used when the rated current of horizontal busbar is above 1250A. The horizontal busbar between cabinets is overlapped by connecting blocks, and the vertical busbar is enclosed by polycarbonate engineering plastic shell. The internal baffle is used to limit arc diffusion. The neutral busbar is set at the front of the cabinet top, and the protective busbar (PE) is set at the bottom of the cabinet and is connected with the baffle of the cabinet.

▶Under the condition of not reducing the protection level of the shell, the bottom and top of the switch cabinet are provided with natural ventilation windows.

▶The protection grade of cabinet shell is IP40.

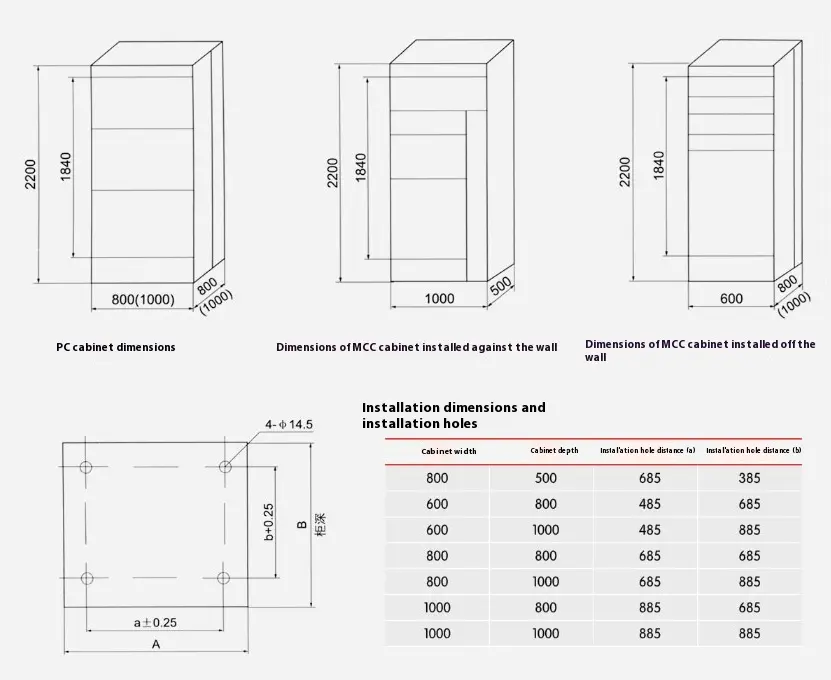

● LV Switchgear Overall dimensions, installation dimensions

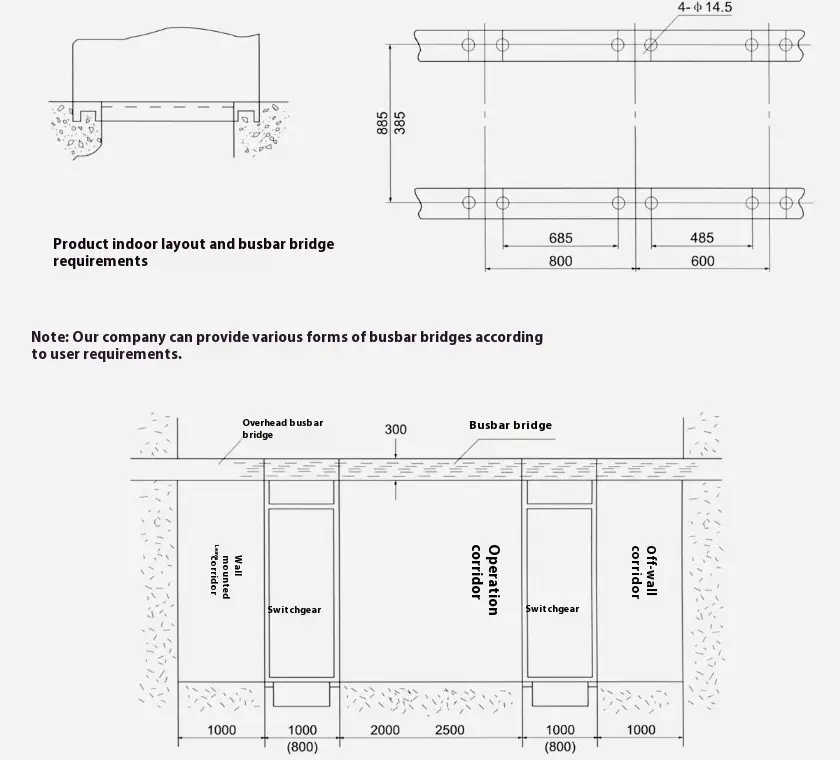

●Schematic diagram of GCK type LV switchgear installation foundation
