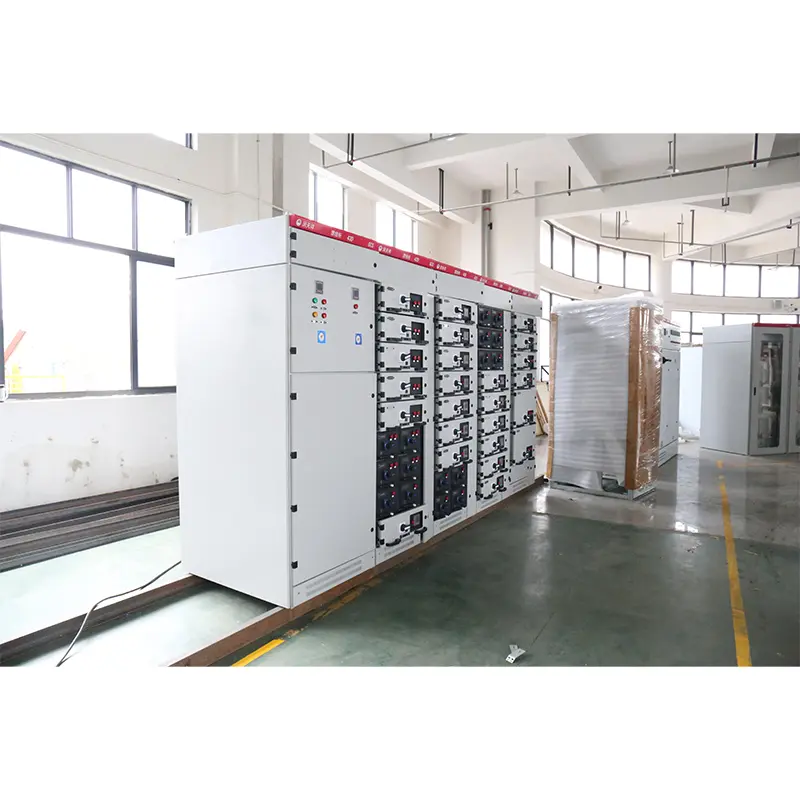

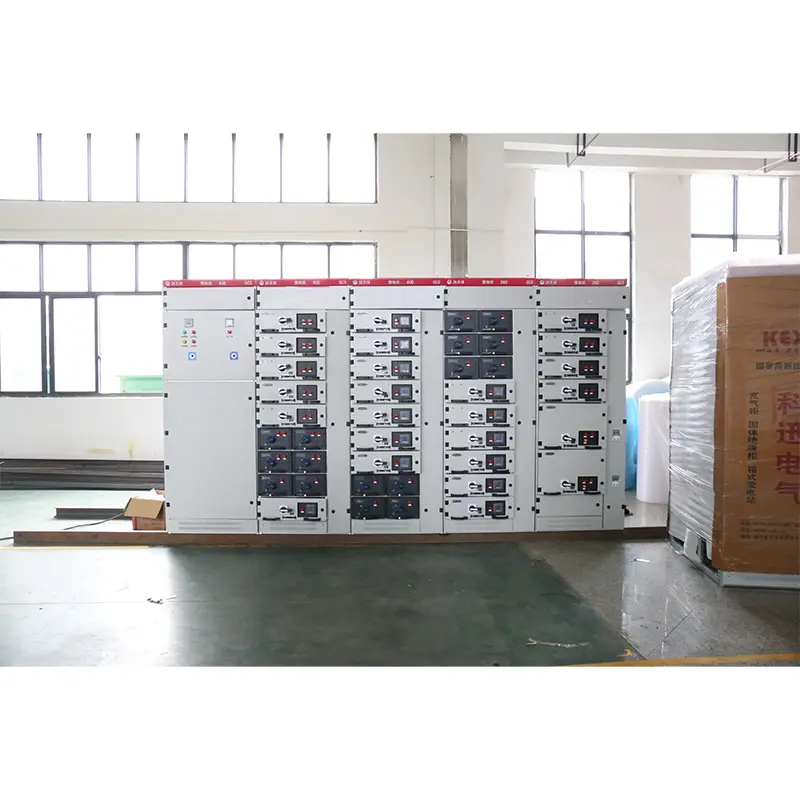

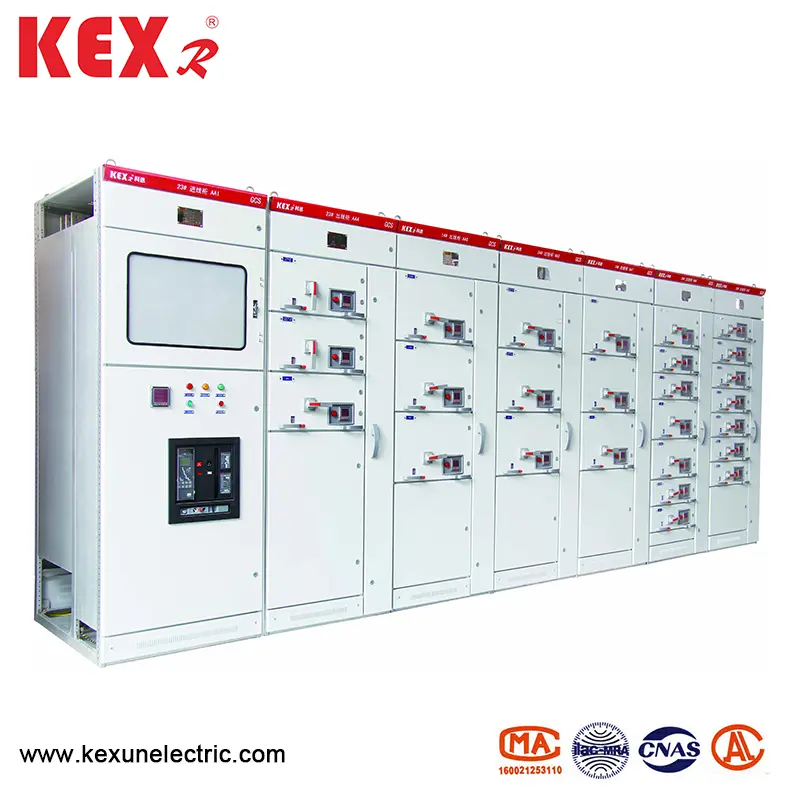

Low Voltage Complete Set

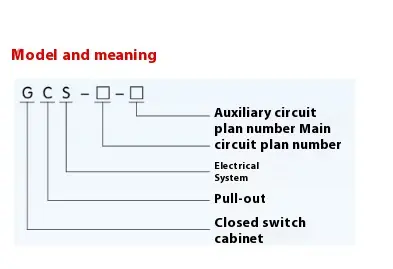

● Model meaning

● Basic parameters

● Main structure

▶The main frame of GCS type Low Voltage Complete Set adopts 8MF type open section steel, and the two sides of the section steel have installation holes with the modulus of 20mm and 100mm and ①9.2mm respectively, so the internal installation is flexible and convenient.

▶The main frame is designed in two assembly forms, namely, fully assembled structure and partially welded structure (side frame and cross beam) for users to choose.

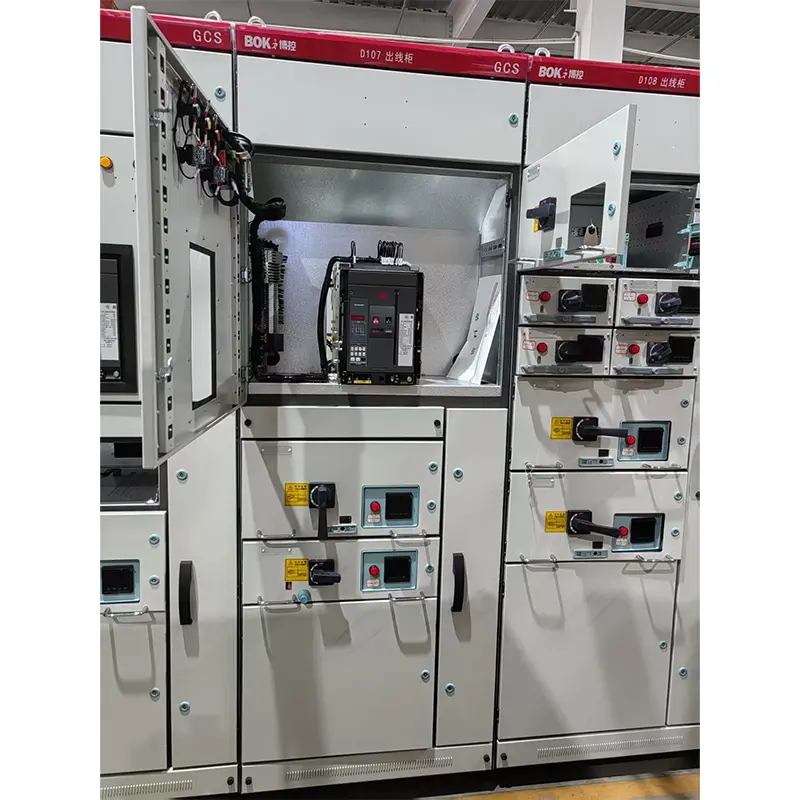

▶Each functional room of the device is isolated from each other, and its compartments are divided into functional unit room, bus room and cable room. The functions of each chamber are relatively independent.

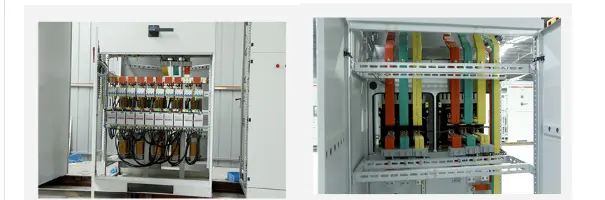

▶The horizontal main bus is arranged horizontally behind the cabinet, which is the basic measure to make the main circuit of the device have high short-circuit strength.

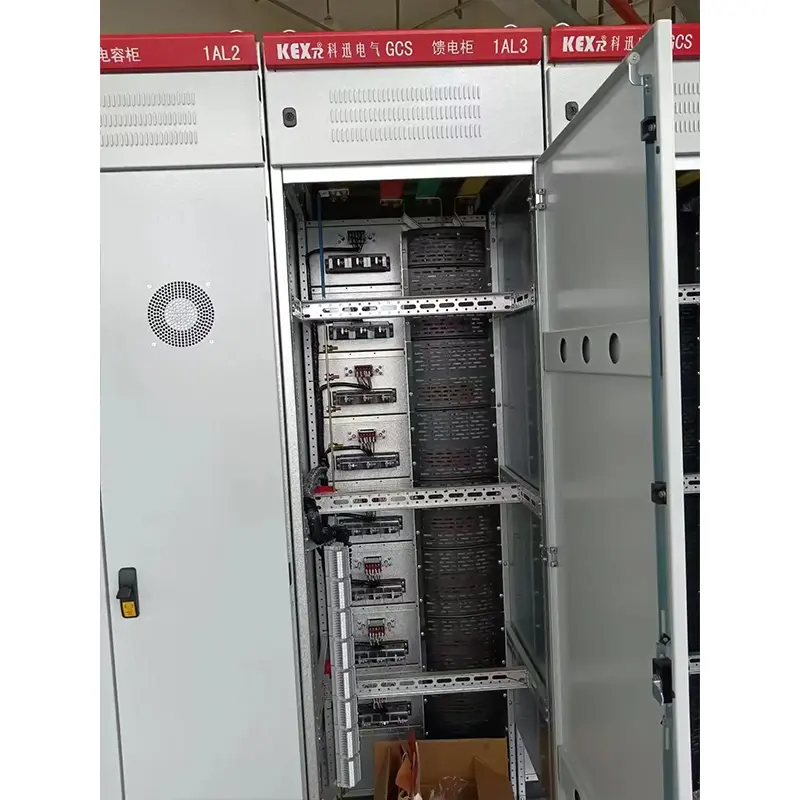

▶The design of the cable compartment makes it very convenient for cables to go up and down.

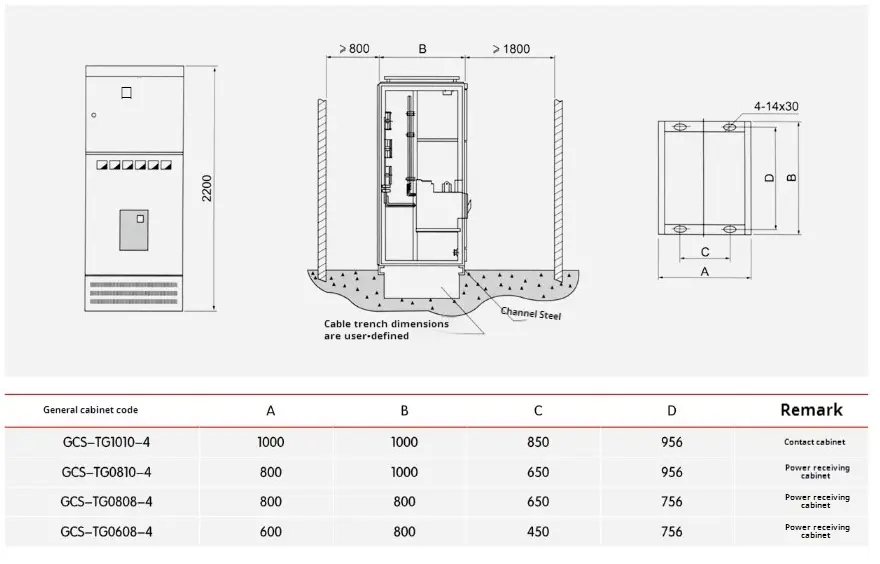

▶Size series of general cabinet of the device (see the table below):

● Installation and use of GCS type Low Voltage Complete Set

◆After the products arrive at the receiving place, they should first check whether the packaging is intact. If problems are found, they should promptly notify the relevant departments of the contract to make business records, analyze the reasons together, make visas and deal with the aftermath. For products that are not installed immediately, they should be placed in an appropriate place and properly kept according to the normal use conditions and the requirements of temporary storage regulations for electrical equipment. 1. The product shall be installed according to the installation schematic diagram (see attached figure). The foundation channel steel and the bolts when the bolt fixing method is adopted shall be provided by the user. When the main bus is connected, if the surface is uneven due to transportation, storage and other reasons, it should be leveled before connection and fastening.

◆When the devices are installed separately or in columns, their verticality, unevenness of cabinet surface and deviation of gaps between cabinets shall meet the requirements in the table below.

◆Inspection and inspection after the GCS type Low Voltage Complete Set

installation and before putting into operation

(1) Check whether the top paint or other covering materials (such as plastic spraying) of the cabinet are damaged, and whether the cabinet is dry and clean.

(2) Whether the operating mechanism of electrical components is flexible, and there should be no jamming or excessive operating force.

(3) Whether the on-off of the main and auxiliary contacts of main electrical appliances is reliable and accurate.

(4) The drawer or drawout mechanism should be flexible and light, without jamming and collision.

(5) The center lines of the movable and static contacts of the drawer or drawout structure should be consistent, and the contacts should be in close contact. The insertion depth of main and auxiliary contacts should meet the requirements. Mechanical interlocking or electrical: the response action is correct, and the locking or release should be reliable.

(6) Drawers of the same size shall be interchangeable conveniently without jamming and collision.

(7) The grounding contact between the drawer and the cabinet should be in close contact. When the drawer is pushed in, the grounding contact of the drawer is contacted before the main contact, and when it is pulled out, the grounding contact is disconnected after the main contact.

(8) The calibration of the instrument, the transformation ratio and polarity of the transformer shall be correct.

(9) The fuse core specification should meet the requirements of engineering design.

(10) The rating and setting of protection shall be correct and reliable.

(11) Use a 1000V megohmmeter to measure the insulation resistance value not less than 1MΩ.

(12) The connection of each busbar shall be good, and the installation of insulation supports, installation parts and other accessories shall be firm and reliable.

◆ Use precautions of the GCS type Low Voltage Complete Set

▶The device is a Low Voltage Complete Set which is not installed against the wall, operated from the front and maintained on both sides. Only qualified professionals can enter or open the maintenance channel and cabinet door for operation, inspection and maintenance.

▶air switch and molded case circuit breakers have been separated and closed for many times, especially after short circuit separation and closing, which will cause local contact burns and produce carbon substances, which will increase the contact resistance. Therefore, they should be maintained and overhauled in the instruction manual of the circuit breaker.

▶After installation and maintenance, the isolation between compartments and functional units must be strictly checked to ensure the good functional separation of the device and prevent the fault from expanding.

● Product package

The manufacturer shall provide the following documents and accessories when supplying:

▶Device list

▶Product certificate

▶Instructions for use

▶Factory test report

▶Relevant electrical drawings

▶Cabinet door keys, operating handles and spare parts specified in the contract.

▶Installation instructions of main components

● Ordering instructions

The order contract of GCS Type Low Voltage Complete Set contains the following contents:

▶The full model of the product includes the main circuit scheme number and the auxiliary circuit scheme number.

▶Main circuit system combination sequence diagram

▶Electrical schematic diagram of auxiliary circuit

▶List of components in the cabinet

▶Setting parameters such as voltage, current and time in the circuit.

▶Other special tables inconsistent with the normal use of the product.
