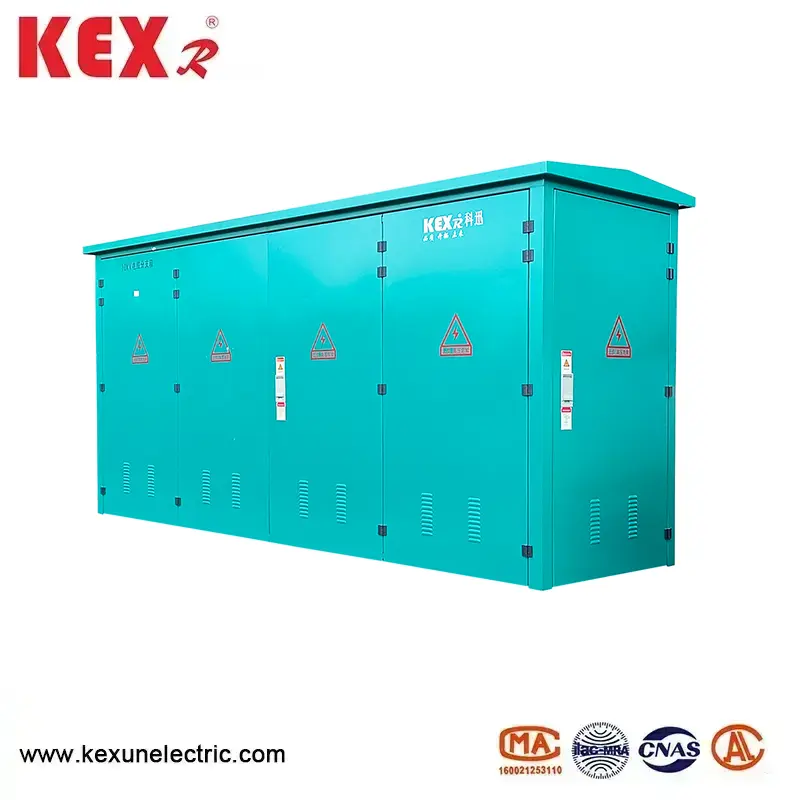

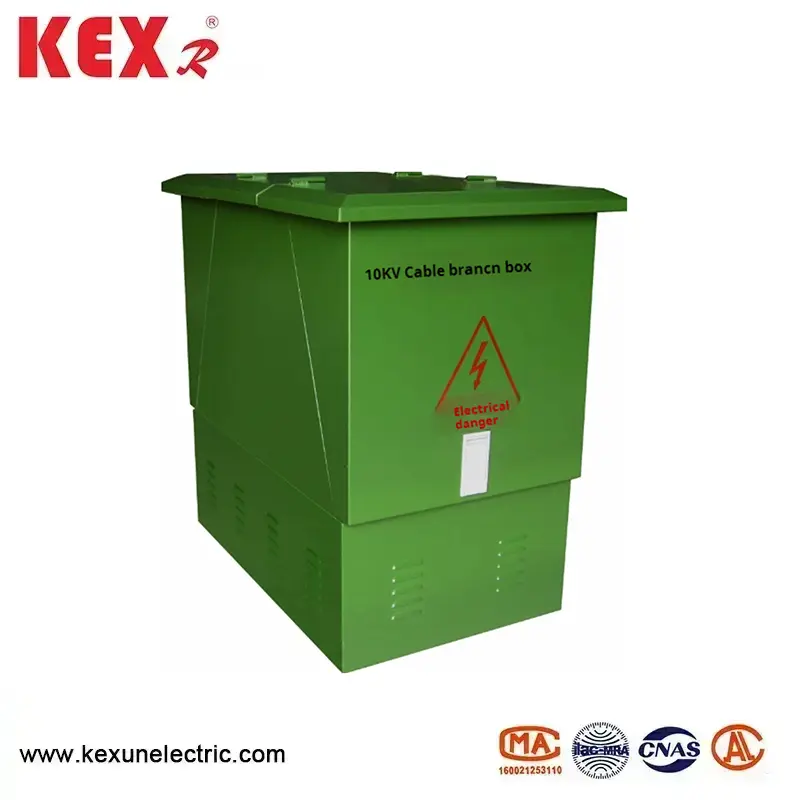

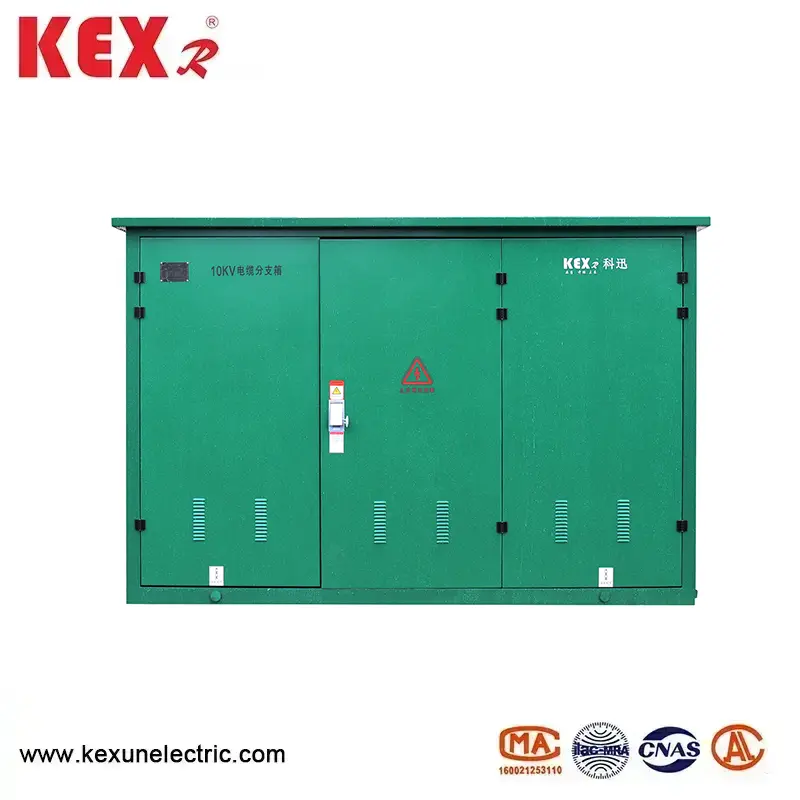

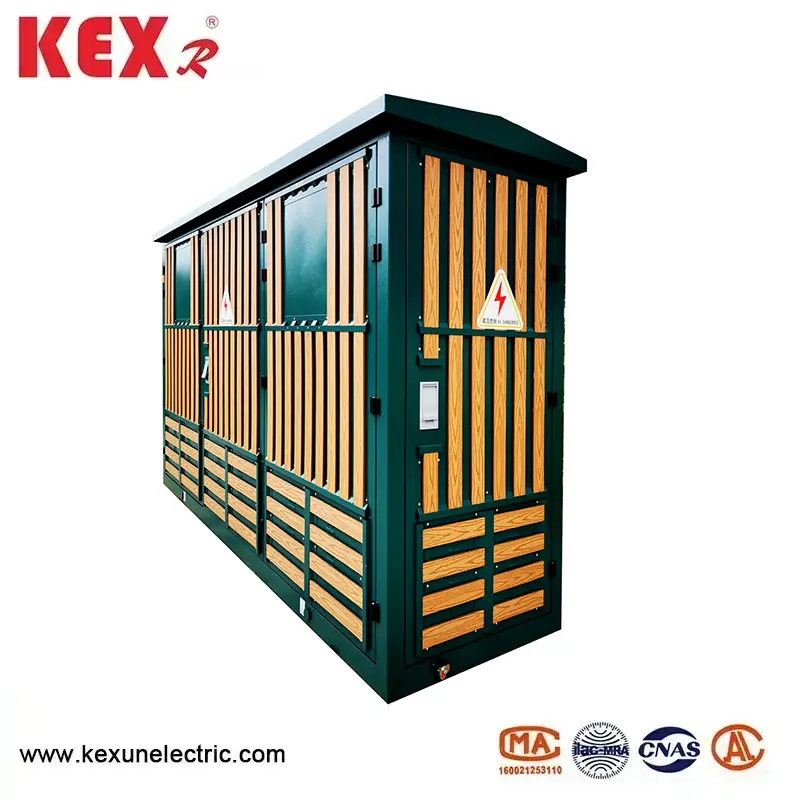

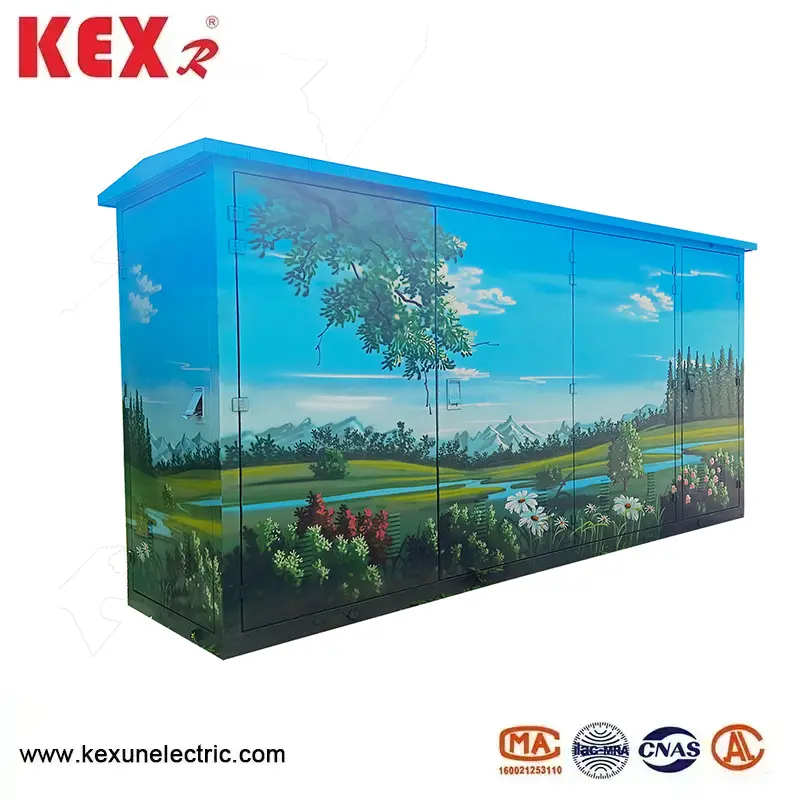

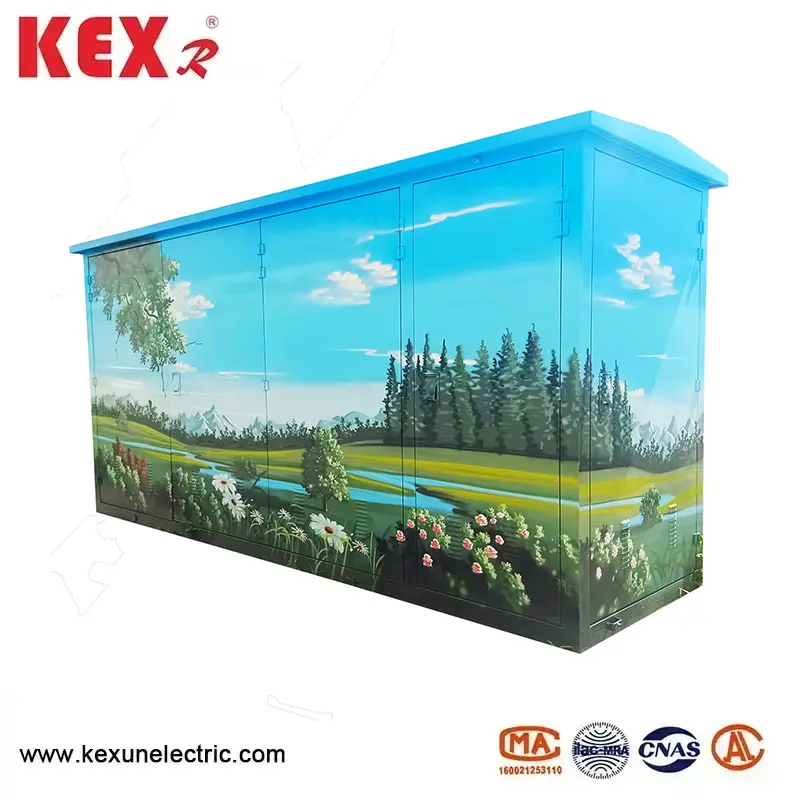

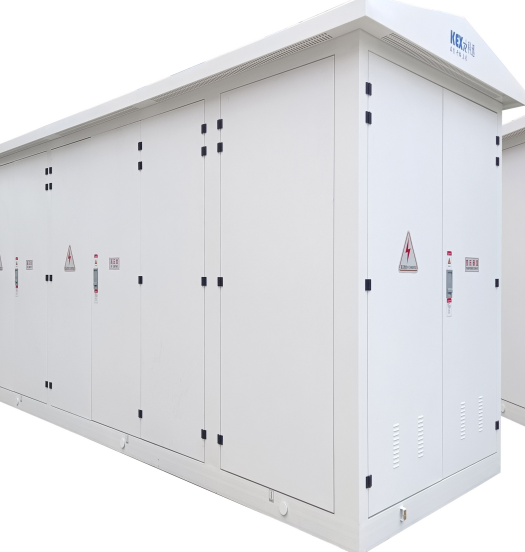

10kV European Cable Distribution Box

●Main functions of 10kV European Cable Distribution Box

▶Cable branch: divide one incoming cable into multiple outgoing cables to realize flexible power distribution.

▶Cable transfer: extend the cable line or change the cable direction.

▶Insulation and protection: All-insulated and all-sealed design ensures safe operation and avoids environmental impact (such as humidity and pollution).

▶Monitoring and expansion: some models can integrate fault indicators, live displays, etc., and support later expansion.

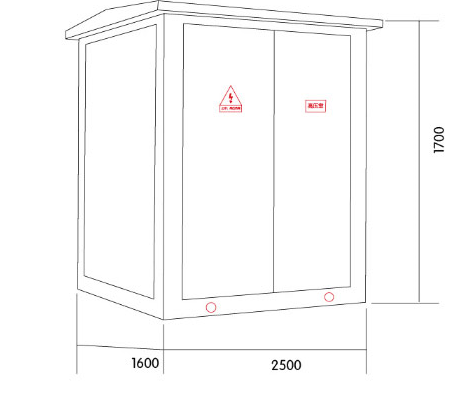

●Typical structural characteristics of 10kV European Cable Distribution Box

▶Shell material: 10KV European Cable Distribution Box usually use stainless steel, aluminum alloy or environment-friendly non-metallic materials (such as SMC fiber reinforced composite material), which is corrosion-resistant and aging-resistant.

▶Insulation mode: Fully insulated type: All live parts are sealed in insulating medium (such as SF6 gas and solid insulation) without bare conductor.

▶Semi-insulated type: some live parts need external insulation protection.

▶Connection technology: European-style connector: T-shaped or elbow-shaped cable connector, plug-in design, convenient installation.

▶Bolt fixation: some models press the cable terminal through bolts.

▶Modular design: standard unit modules (such as 2 in, 4 out and 1 in, 6 out) can be flexibly combined to meet different loop requirements.

●Using Conditions of the 10KV European type Cable Distribution Box

Ambient temperature of the10KV European type Cable Distribution Box: -30~40℃

Wind speed: equivalent to 34m/sl and not more than 700Pal

Humidity: the average daily relative humidity is not more than 95%

The average monthly relative humidity is not more than 95%

 Shockproof: the horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s²

Inclination of European type Cable Distribution Box installation site: Less than 3

Installation environment: The surrounding air should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and the installation site should not be violently vibrated.

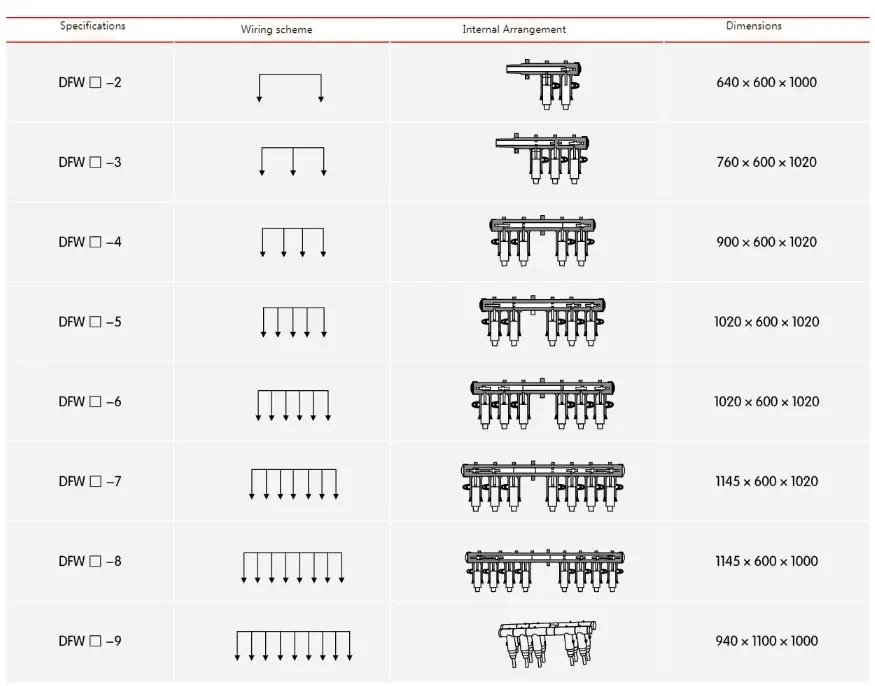

● Technical parameter of the 10KV European type Cable Distribution Box

● 10KV European type Cable Distribution Box Order number description
