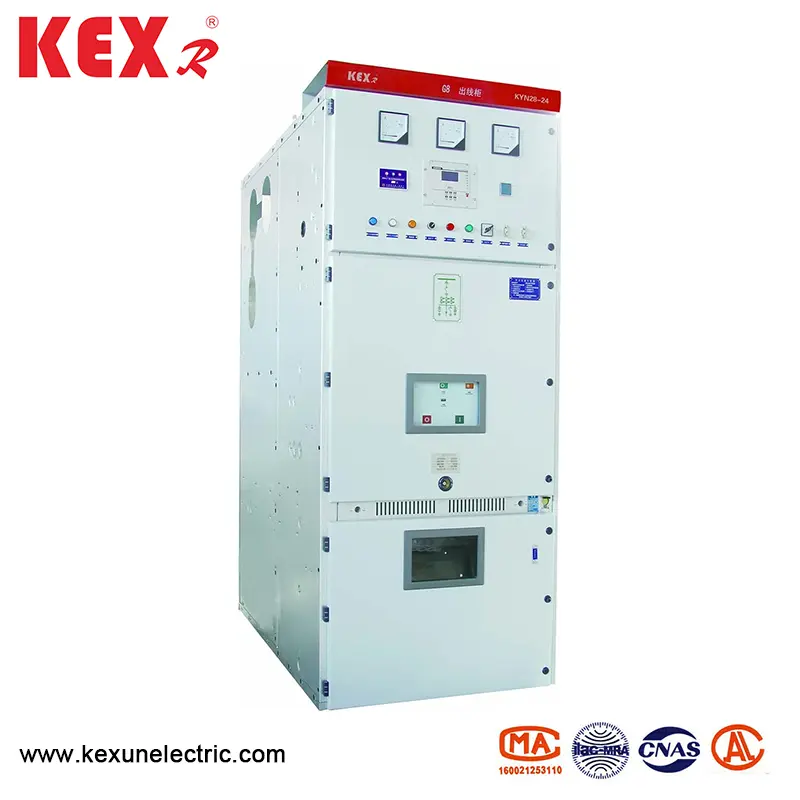

KYN28-24 Armor-clad Shifting Metal Closed Switchgear specially produced by China supplier Kexun is suitable for indoor three-phase 50/60Hz power system with rated voltage of 24kV, and is mainly used in power plants, substations, industrial and mining enterprises and high-rise buildings to receive and distribute electric energy and control, protect and monitor circuits.
Model:KYN28-24
Brand:KEXR

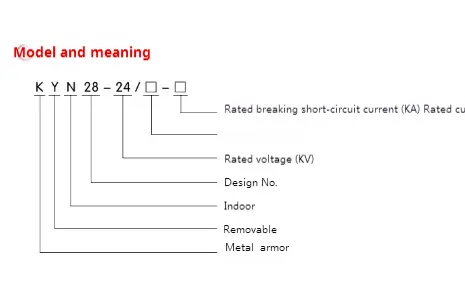

● Model meaning

Armor Clad Shifting Metal Closed Switchgear

● Conditions of use

◆ Normal use conditions

▶Ambient temperature: -15~40℃, and the average within 24 hours less than 35℃.

▶Humidity: The average daily humidity less than 95%; The average monthly humidity less than 90%;

▶steam pressure:The average steam pressure per day is not more than 2.2kPa;The average monthly water vapor pressure shall not exceed 1.8kPa;;

▶Altitude:The altitude of Armor-clad Shifting Metal Closed Switchgear should be less than 1000 m

▶The surrounding air is not obviously polluted by dust, salt, corrosive and/or combustible gas, steam or salt spray;

▶Vibration or ground motion from the outside of switching equipment and control equipment can be ignored

▶The amplitude of electromagnetic interference induced in the secondary system does not exceed 1.6kV.

◆ Special conditions of use

When it is used under normal environmental conditions beyond those specified in GB/T1022, the company and users can negotiate and reach an agreement on special operating conditions.

In order to prevent condensation, the Armor-clad Shifting Metal Closed Switchgear

is equipped with a heater, which should be put into use when the switchgear is in standby state. Attention should also be paid to putting the heater into operation when the switchgear is in normal operation.


● Technical parameter of The Armor-clad Shifting Metal Closed Switchgear

Number

Item

Unit

Data

1

Rated voltage

KV

24

2

Rated frequency

Hz

50/60

3




Rated insulate level

1Min working frequency withstand voltage(virtual value)

KV

Phase to phase

Ground

65

Isolate

break

79

Lighting impulse withstand voltage(peak)

125

145

Auxiliary control working frequency withstand voltage

V

2000

4

Rated current

A

630,1250,1600,2000,2500,3150

5

Rated short-circuit break current



KA

20

25

31.5

6

Rated short-circuit closing current(peak)

50

63

80

7

Rated short-term withstand current(4s)

20

25

31.5

8

Rated peak withstand current

50

63

80

9

Auxiliary control rated voltage

V

DC/AC 110/220

10

IP degree


IP4X

11

Dimensions (width*depth*height)

mm

800*1810*2430 1000*1810*2430

12

Weight

kg

840~1440


● Brief description of structure

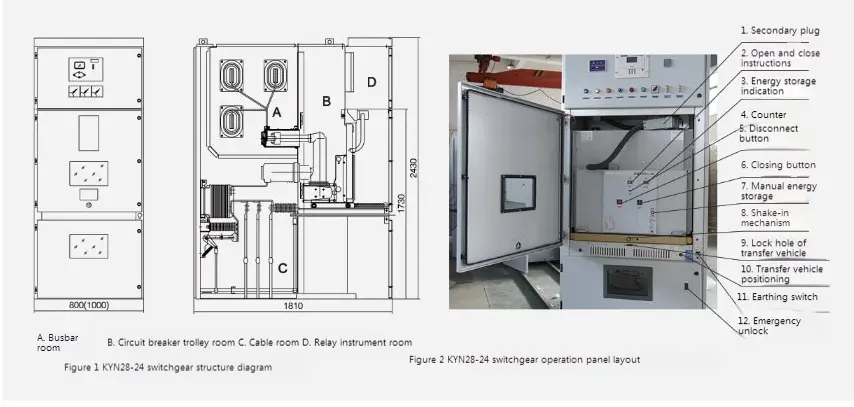

The KYN28-24 Type Armor-Clad Shifting Metal Closed Switch Switchgear consists of cabinet and removable parts (commonly known as handcart). The switchgear is divided into several functional compartments by metal partitions, such as bus room, circuit breaker room, cable room and relay instrument room. Removable parts of switchgear can be equipped with vacuum circuit breaker handcart, voltage transformer handcart, lightning arrester handcart, isolation handcart and fuse handcart.

Armor Clad Shifting Metal Closed Switchgear

● Characteristics of main components

◆The shell

The shell of KYN28-24 Type Armor-Clad Shifting Metal Closed Switch Equipment is made of imported aluminum-zinc coated steel plate, which is processed by CNC machine tool and made by multiple folding process. The whole cabinet has high precision and strong corrosion resistance and oxidation resistance, and because of the adoption of multiple folding technology, the cabinet is lighter in overall weight, higher in mechanical strength and beautiful in appearance than other similar equipment cabinets. The cabinet adopts an assembled structure, which is connected by a willow nut and a high-strength bolt, so that the processing and production cycle is shortened, the parts are universal, the floor space is small, and the organization of production is convenient.

◆The handcart

The handcart skeleton is made of thin steel plate and assembled by CNC machine tool. The handcart and the cabinet have high matching precision, and the mechanical interlock is safe, reliable and flexible. Handcart can be divided into circuit breaker handcart, voltage transformer handcart, metering handcart, isolation handcart, etc. Handcarts with the same specifications can be freely interchanged. The handcart has a disconnection/test position and a working position in the cabinet, and each position has a positioning device. To ensure reliable interlocking. All kinds of handcarts are propelled and withdrawn by screw rods, which are light and flexible to operate and suitable for the personnel on duty. When the handcart needs to be removed from the cabinet, it can be conveniently taken out with a special transfer truck for various inspections and maintenance. When the handcart running car is transported into the cabinet circuit breaker room, it can be reliably locked in the off/test position, and the cabinet position indicator light shows its position. Only after the handcart is completely locked can the lead screw propulsion mechanism be shaken to push the handcart to the working position. When the handcart reaches the working position, the operating force of the propulsion handle suddenly increases and cannot be rotated, and its corresponding position indicator light shows its position. The mechanical interlock of handcart can reliably ensure that the circuit breaker can be closed only when the handcart is in the working position or test position; Moreover, the handcart can only move when the circuit breaker is in the opening state.

◆ Compartment

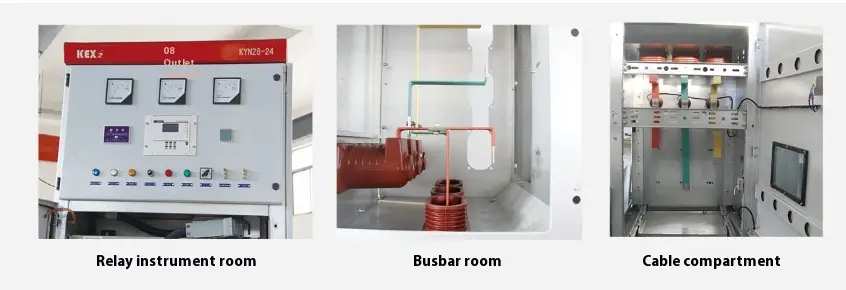

The main electrical components of switchgear are in their independent compartments, namely: breaker handcart room, bus room, cable room, relay instrument room, etc. The protection level of each compartment reaches IP2X. Except for the relay instrument room, the other three compartments have pressure relief channels respectively. Because of the middle type, the space of cable room is greatly increased, so the equipment can connect multiple cables in parallel.

▶ Bus compartment A: The main bus is connected by single splicing, which is fixed by branch bus (static contact box) and main bus insulation sleeve. The main bus and tie bus are copper bars with rectangular cross section, and double bus bars are used for heavy current load. For special needs, the bus can be covered with heat shrinkable sleeve and customized insulating cover box. Insulating bushings are installed between buses of adjacent cabinets, which can effectively limit the accident in the compartment without spreading to other cabinets in case of internal fault arc.

▶ Circuit breaker compartment B: Rails are installed on both sides of the compartment for handcart to move from the off/test position to the working position in the cabinet. The partition (valve) of the static contact box is installed at the back wall of the handcart room. When the handcart moves from the off/test position to the working position, the upper and lower valves on the mouth of the static contact box are automatically opened in conjunction with the handcart. When moving in the opposite direction, the valve will automatically close until the handcart retreats to a certain position and safely covers the static contact box, thus forming effective isolation. Because there is no linkage between the upper valve and the lower valve, the valve on the live side can be locked during maintenance, thus ensuring that the maintenance personnel do not touch the live body. The handcart can also be operated when the door of the circuit breaker room is closed. Through the observation window on the door, you can observe the position of the handcart in the compartment, the opening and closing instructions and the energy storage situation.

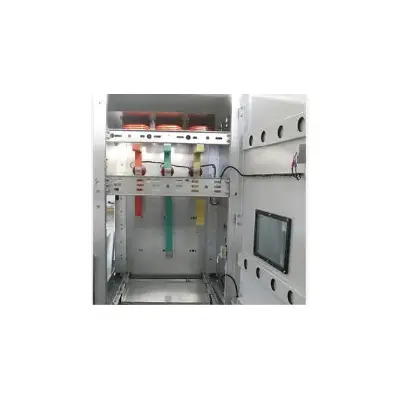

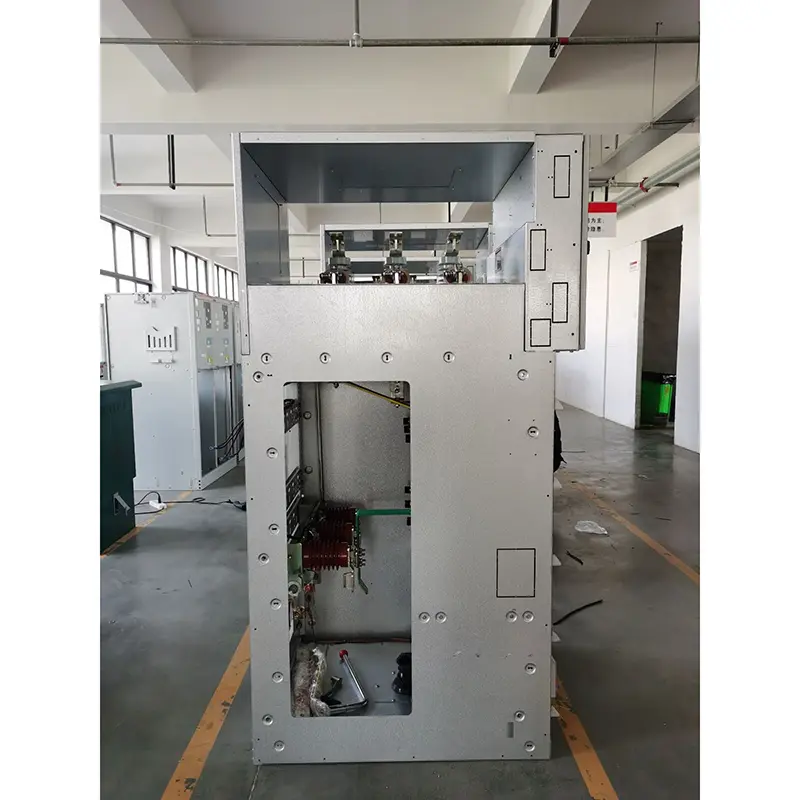

▶ Cable compartment C: The KYN28-24 type Armor-clad Shifting Metal Closed Switchgear is built in the middle, so the cable compartment has a large space. The current transformer and grounding switch are installed on the back wall of the compartment (the grounding switch can also be installed in the middle of the switch cabinet according to the customer's needs), and the lightning arrester is installed in the lower part of the compartment. After the handcart and the extractable horizontal partition are removed, the constructors can enter the cabinet from the front for installation and maintenance. The cable connecting conductors in the cable room can be connected in parallel with 1-3 cables per phase, and 6 cables can be connected in parallel with each phase when necessary. The detachable slotted metal sealing plate or non-magnetic metal sealing plate is prepared at the bottom of the cable compartment to ensure convenient construction.

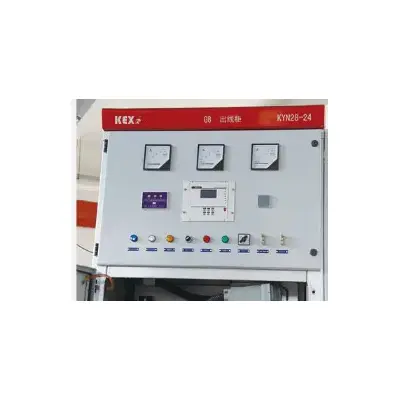

▶ Relay instrument room D: Relay protection components, instruments, live display indicators and secondary equipment with special requirements can be installed in the relay instrument room. The control line is laid in the trunking, and the trunking has a metal cover plate, which can isolate the secondary line from the high-voltage components. The left front trunking is reserved for the lead-in and lead-out of control cables, and the corresponding parts of the bottom plate are provided with secondary wires and cable threading holes. On the top plate of the relay instrument room, there is also a small bus crossing hole which is convenient for construction. When wiring, the top cover plate of the instrument room can be opened to facilitate the installation of the small bus.
