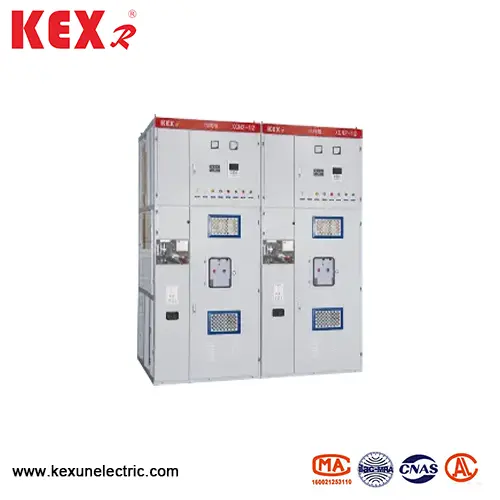

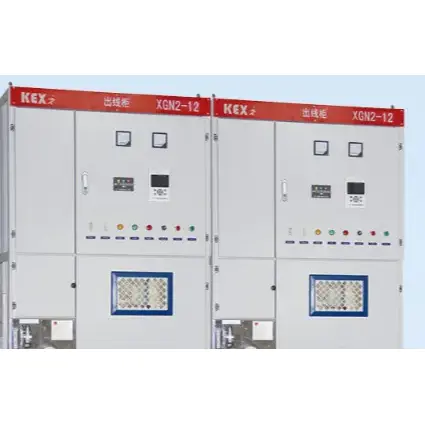

Box Type Fixed Metal Closed Switch Equipment

The main primary components of XGN2-12 Box Type Fixed Metal Closed Switch Equipment specially produced by Kexun in China Factory are all redesigned. Compared with the handcart equipment and GG-1(A)F equipment which are mainly used at present, XGN2-12 Box Type Fixed Metal Closed Switch Equipment has higher insulation level and protection level, and no phase-to-phase and phase-to-ground clapboards and insulating gas are used inside, and no secondary plug is used in the secondary circuit.
Model:XGN2-12
Brand:KEXR

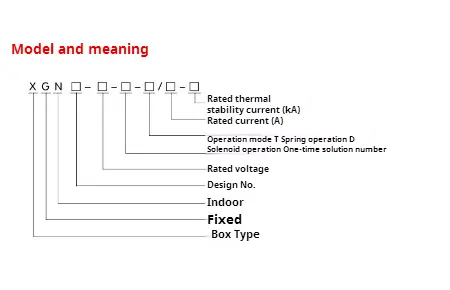

● Model meaning

Box Type Fixed Metal Closed Switch Equipment

● Mainly technical parameters of the XGN2-12 Box Type Fixed Metal Closed Switch Equipment

Number

Item

Unit

Data

1

Rated voltage

KV

3,6,10

2

Max operating work voltage

KV

3.5,8.9,11.5

3

Rated current

A

5~3000

4

Rated break current

KA

16,20,31.5,40

5

Rated short-circuit closing current

KA

40,50,80,100

6

Rated short-circuit dynamic stable current

KA

40,50,80,100

7

Rated heat stable current

KA

16,20,31.5,40

8

Rated heat stable time

S

4

9

IP degree


IP2X

10

Bus system


Single bus or with bypass

11

Operating method


Electromagnetic or spring energy storage type

12

Dimensions (width*depth*height)

mm

1100*1200*2650(below 1000A)

13

Weight

Kg

1000


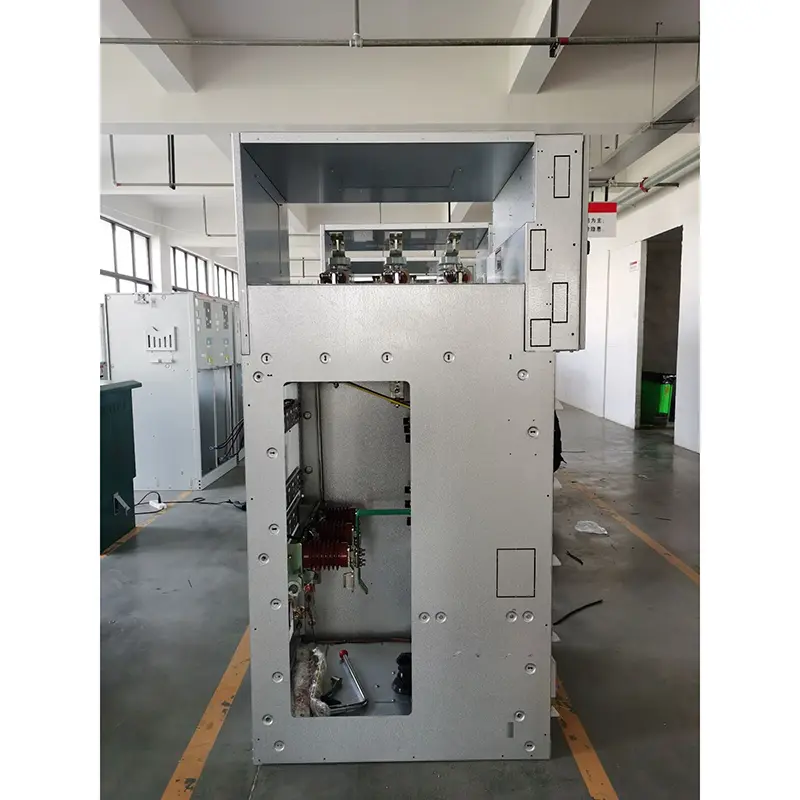

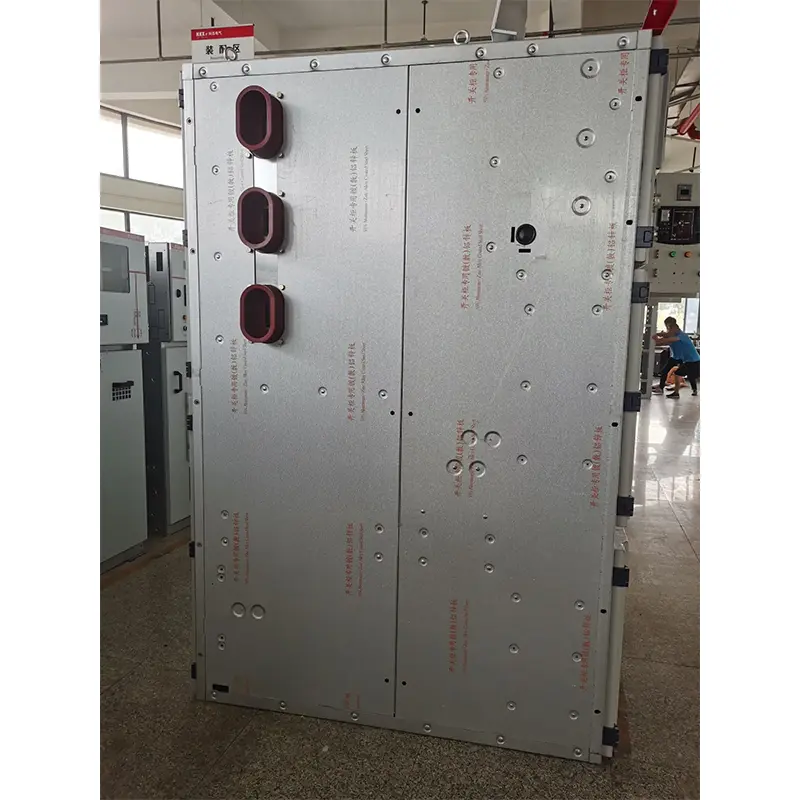

◆ structure

This XGN2-12 Box Type Fixed Metal Closed Switch Equipment is a metal closed box structure, and the equipment frame is welded by angle steel. The equipment is divided into a circuit breaker room, a bus room, a cable room and a relay room by steel plates, and the operation of the main components in the equipment can be observed through the observation window and the lighting lamp on the facade. In order to improve the technical performance of the equipment, the main components (such as circuit breakers and rotary disconnectors) have been redesigned. According to the layout of the XGN2-12 Box Type Fixed Metal Closed Switch Equipment, relays can be installed in the relay room, signal relays, indicating instruments, signal lights can be installed on the door, and the installation and operation room of the transfer switch, with the bus room at the back and the cable room at the lower part, so that users can connect wires conveniently. The front is the circuit breaker room, which is convenient for the maintenance of equipment. Refer to Figure 1 and Figure 2 and the product manual for the internal mechanism of the equipment.

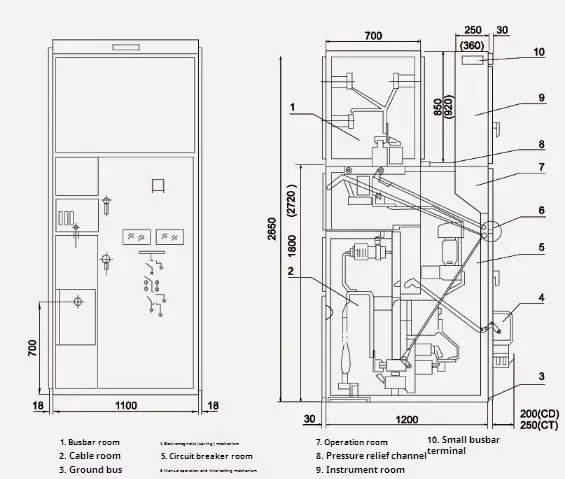

● XGN□-12/07D Outline Drawing

Box Type Fixed Metal Closed Switch Equipment

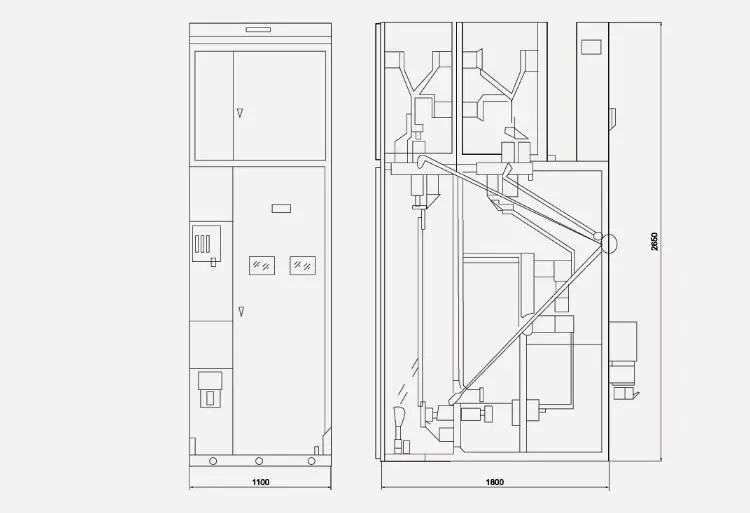

● XGN□-12 (outlet of Bypass Cable) Outline Drawing

Box Type Fixed Metal Closed Switch Equipment

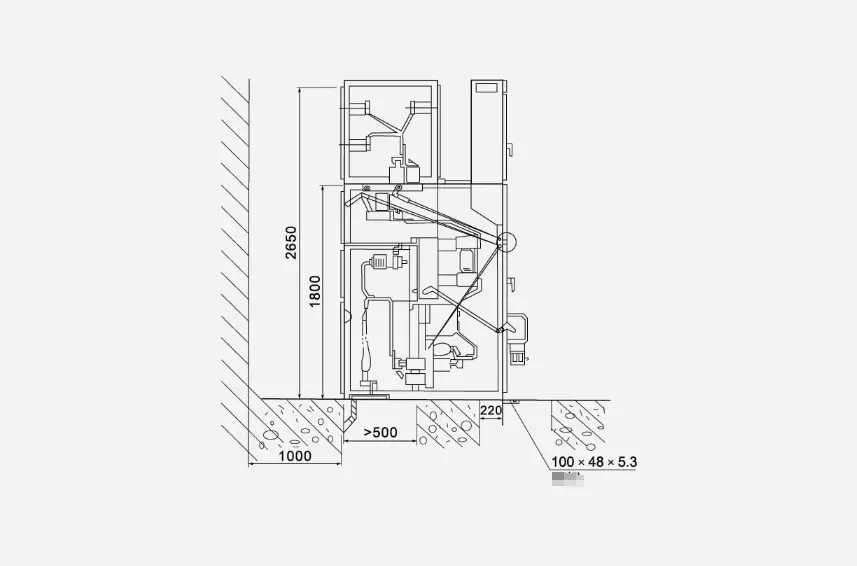

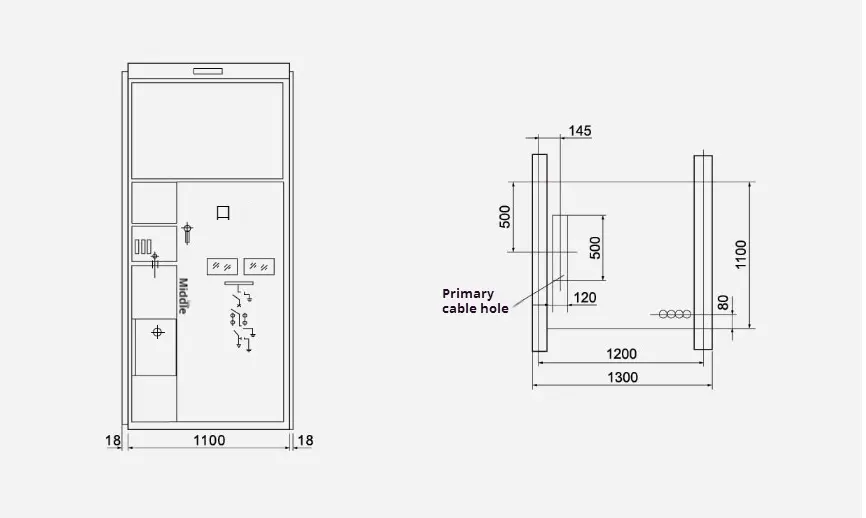

● Overall dimension installation drawing

Box Type Fixed Metal Closed Switch EquipmentBox Type Fixed Metal Closed Switch Equipment
