Cable Connector
As a well-known supplier of power transmission and transformation equipment in China, the Cable Connector produced by Kexun has the characteristics of firm connection, good conductivity, good insulation and good protective performance, and is often used to connect high-current (630A) cables, especially in power systems, industrial distribution, transformers and other scenes.

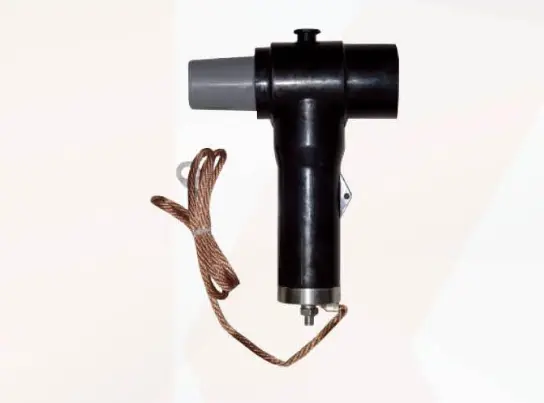

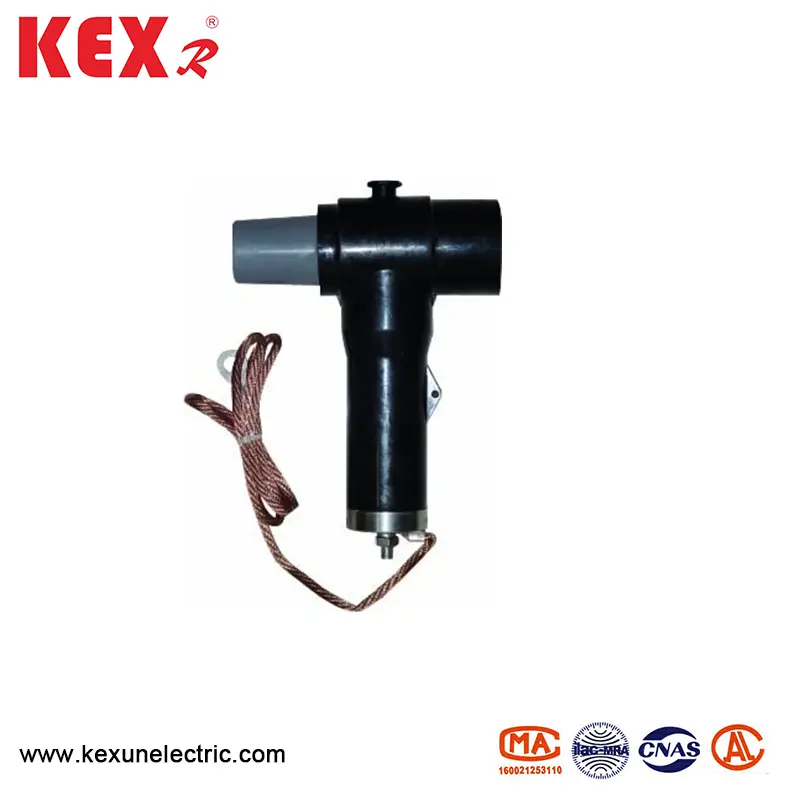

● Product picture
◆ Product overview
As a common Cable Connector, the rear arrester is directly installed on the 10KV touchable front/rear connector to provide overvoltage protection for electrical equipment. The rear lightning arrester is fully insulated and sealed.

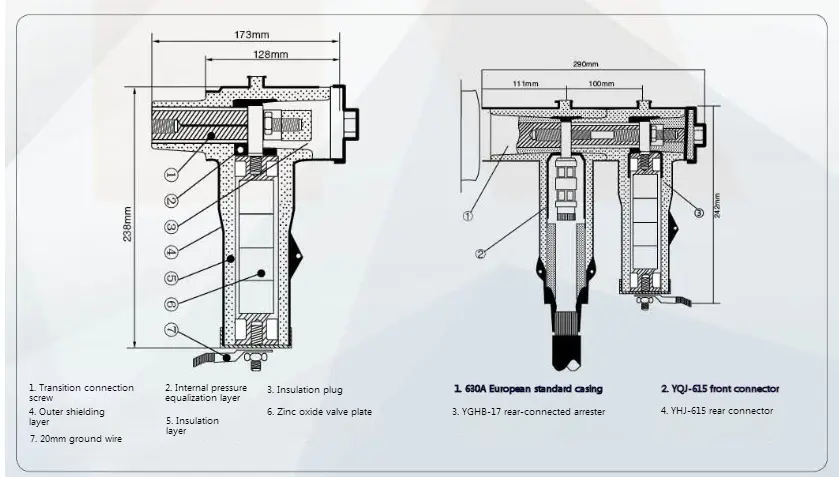

◆Outline dimensional drawing

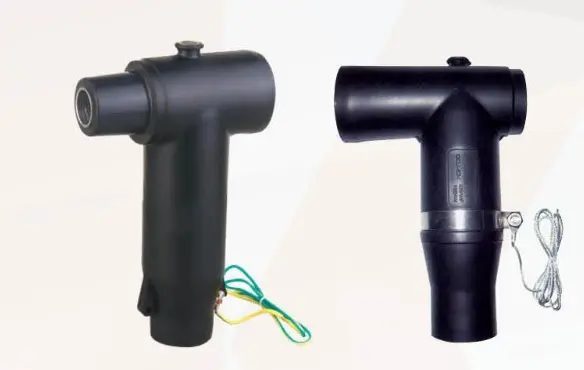

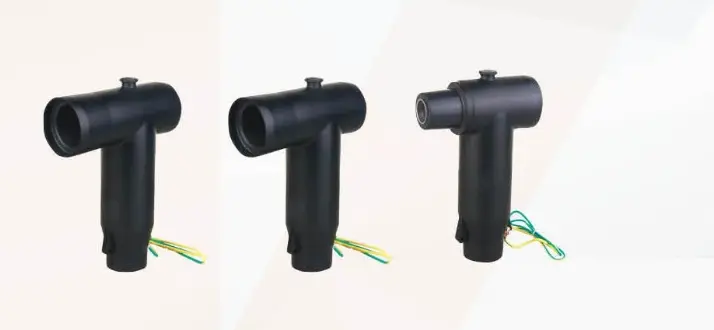

● Product picture
◆ Product overview
The 15KV touchable Cable Connector is designed according to the standard of EN50181-1997, with exquisite appearance, and can be applied to 10KV ring network cabinet, main network system of cable branch box or ring network system of box transformer as incoming and outgoing cables. By connecting YHJ-615 touchable rear connector or BL-17 arrester, multi-channel expansion or overvoltage protection can be realized. The rated current of 15KV touchable Cable Connector is 630A. It is suitable for XLPE power cables with a cross section of 35-400mm².

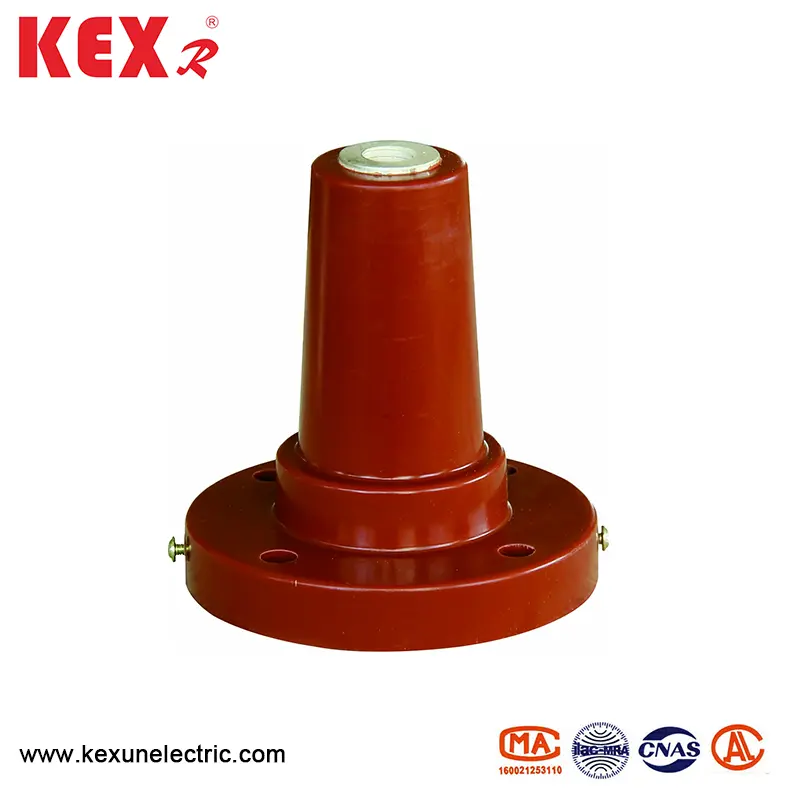

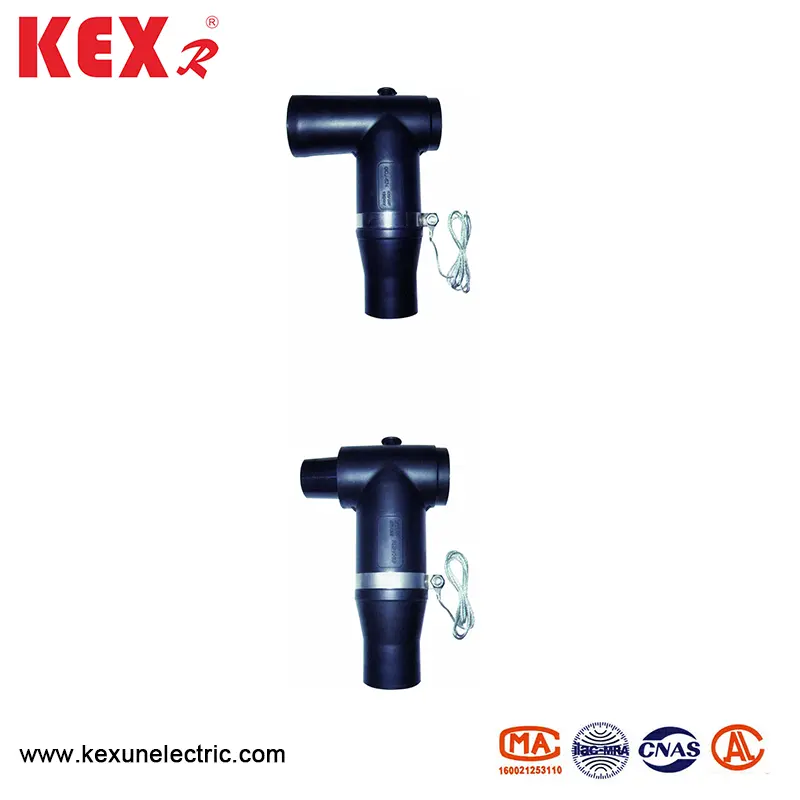

● Product picture
◆ Product overview
The touchable 24KV Cable Connector is designed according to the standard of EN50181-1997, with exquisite appearance, and can be applied to the 24KV ring network cabinet, the main network system of cable branch box or the ring network system of box transformer as an access. Wire and cable connection. By connecting YHJ-625 touchable rear connector or BL-30 arrester, multi-channel expansion or overvoltage protection can be realized. The rated current of touchable connector is 630A, which is suitable for XLPE power cable with 35~400mm² cross section.

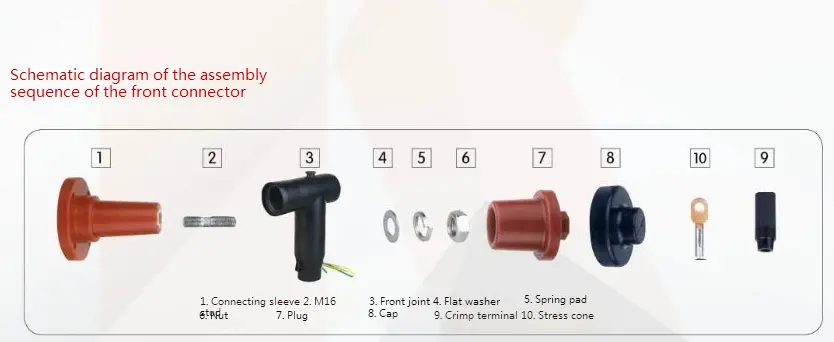

◆ Schematic diagram of front joint assembly sequence

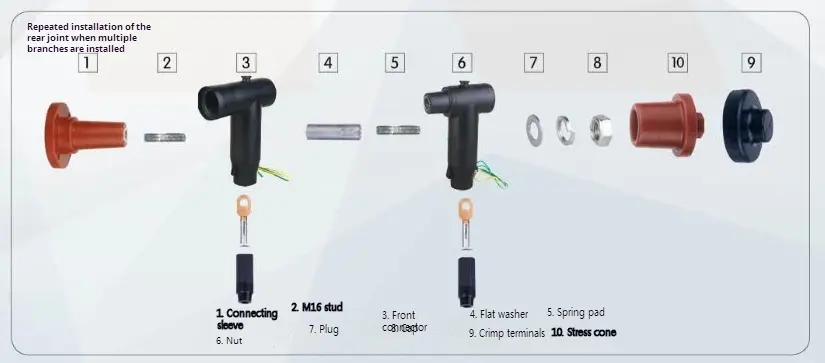

◆ Schematic diagram of assembly sequence of front joint and rear joint
