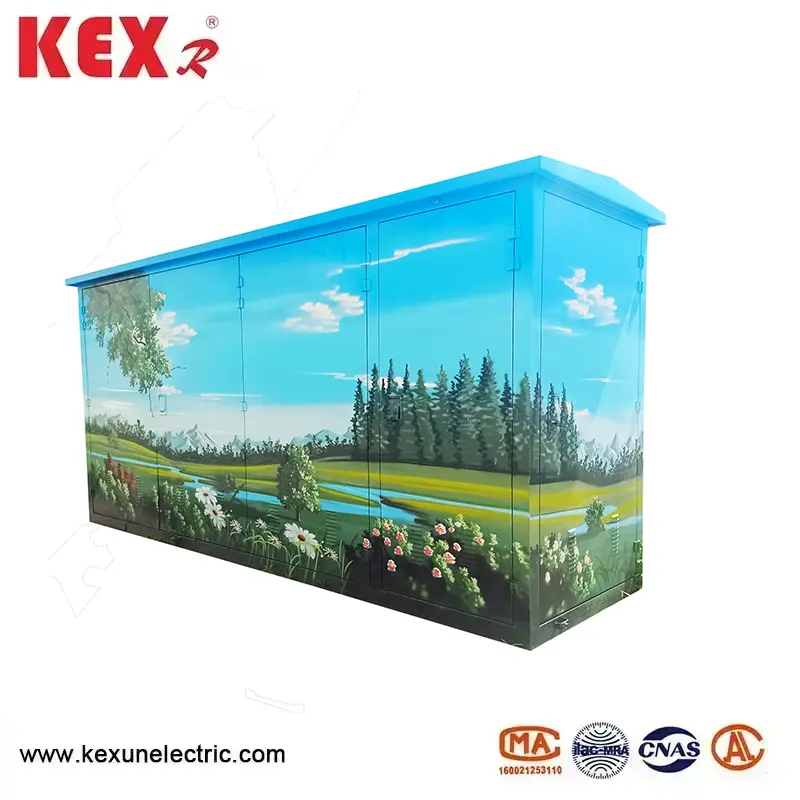

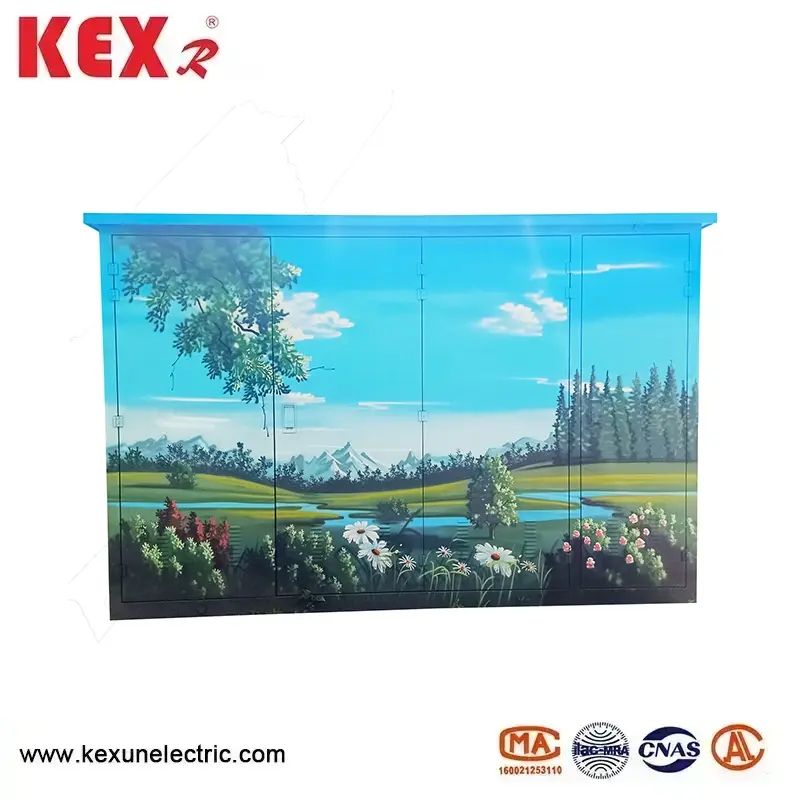

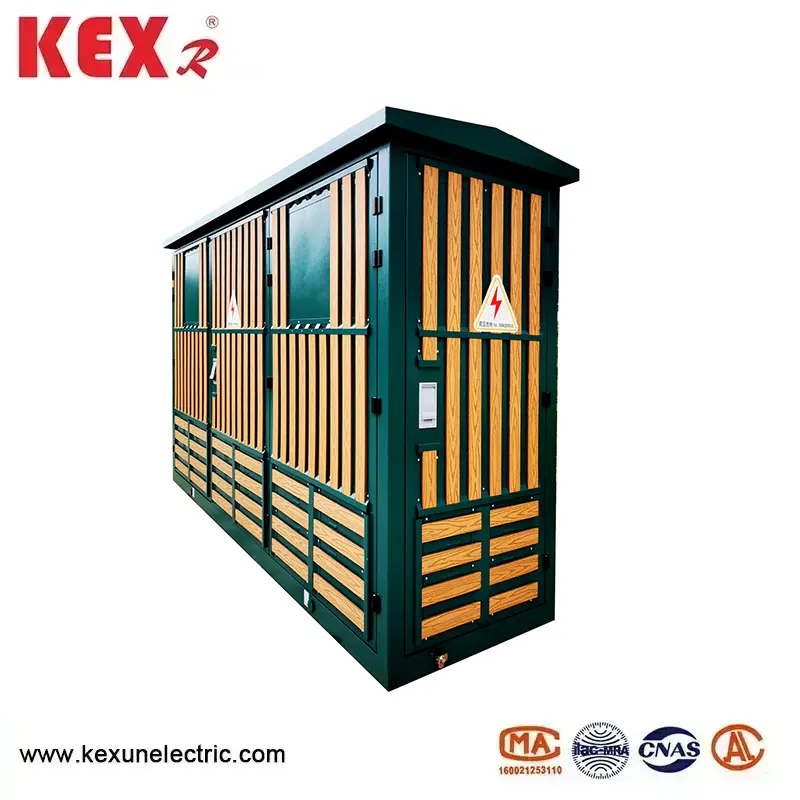

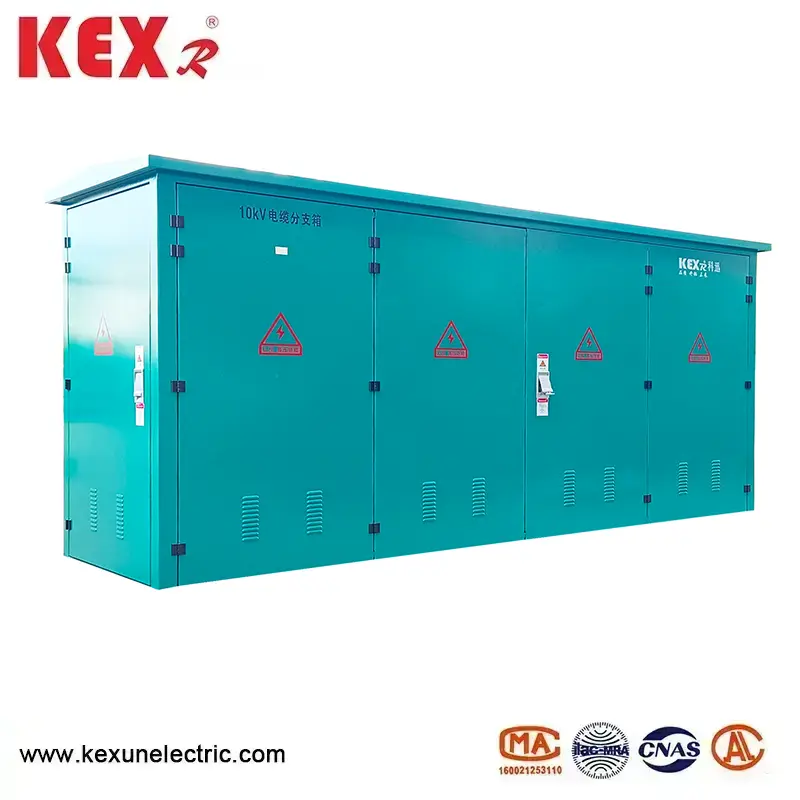

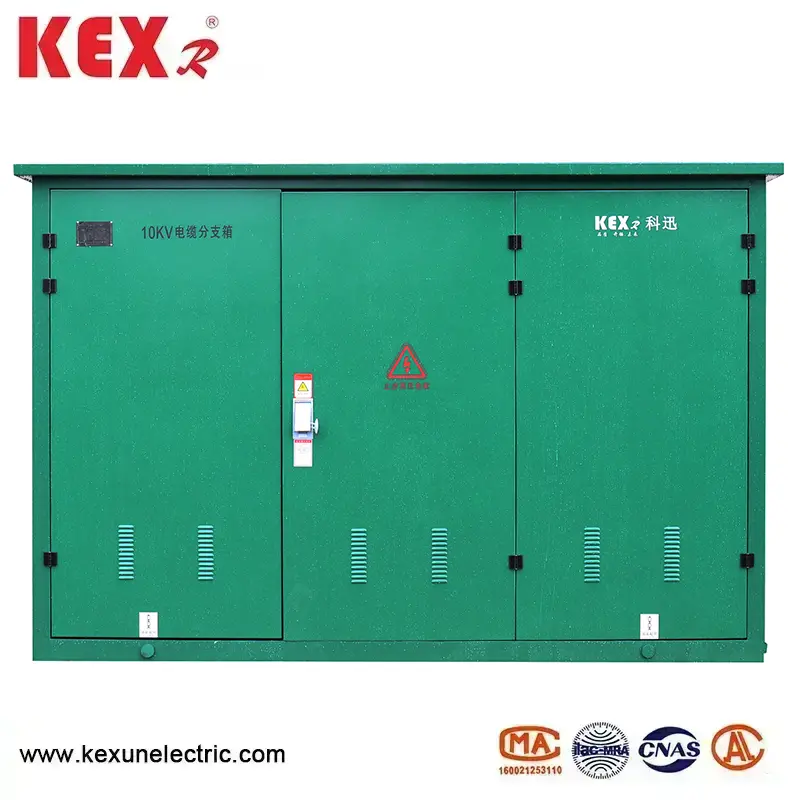

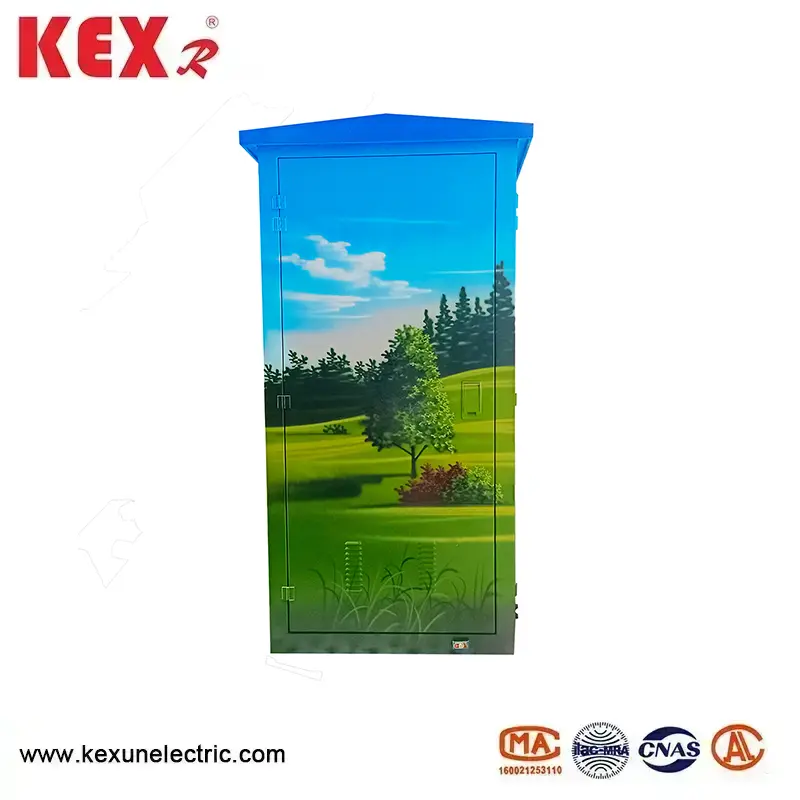

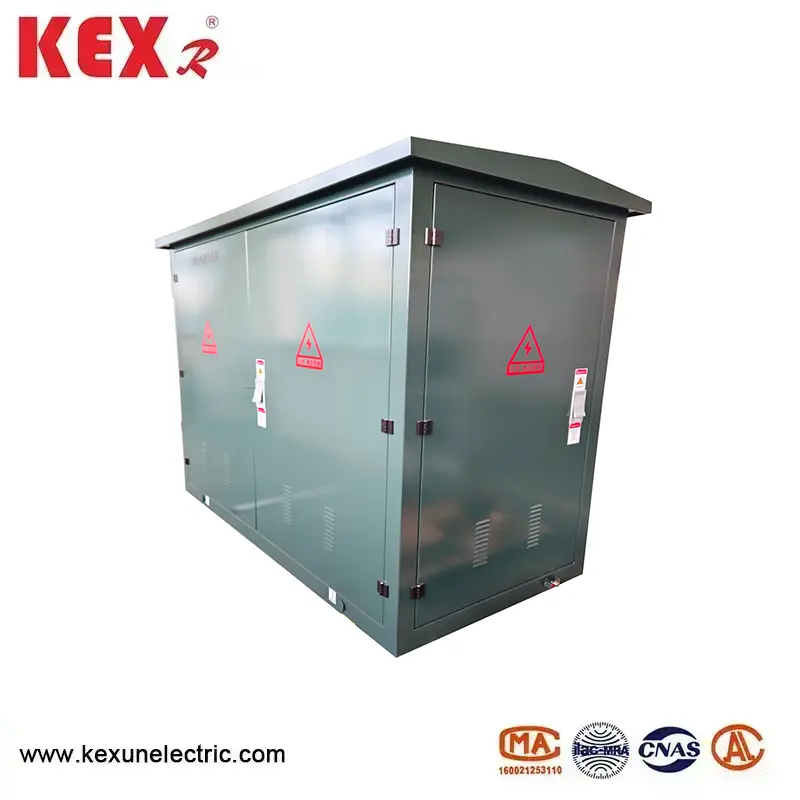

Outdoor Cable Box

● Using Conditions of  The 35kV Outdoor Cable Box

Ambient temperature of the35kV Outdoor Cable Box: -30~40℃

Wind speed: equivalent to 34m/s and not more than 700Pa

Humidity: the average daily relative humidity is not more than 95%

The average monthly relative humidity is not more than 95%

 Shockproof: the horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s²

Inclination of 135kV Outdoor Cable Box installation site: Less than 3

Installation environment: The surrounding air should not be obviously polluted by corrosive, combustible gas, water vapor, etc., and the installation site should not be violently vibrated.

○ 35kV Outdoor Cable Box installation and operation and maintenance

 ◆Installation requirements

Cable stripping and cutting: accurately match the joint specifications (error 1 mm) to avoid damaging the insulation layer.

▶Connector installation: Clean the contact surface and apply silicone grease to prevent oxidation. Tighten with a torque wrench (for example, T-joint needs 35 ~ 40N m).

▶Grounding: The box and cable shield must be reliably grounded (grounding resistance ≤4Ω).

◆Safe operation

▶Check the electricity after power failure, and wear insulating gloves and goggles when operating.

▶Make sure that the grounding switch is closed (if any) before plugging and unplugging the connector.

◆Maintenance suggestion

▶Annual inspection: infrared temperature measurement (focusing on monitoring the temperature rise of joints).

▶Seal inspection: replace the sealing ring once every five years (moisture and dust proof).

▶Insulation test: conduct a withstand voltage test every 3 years.

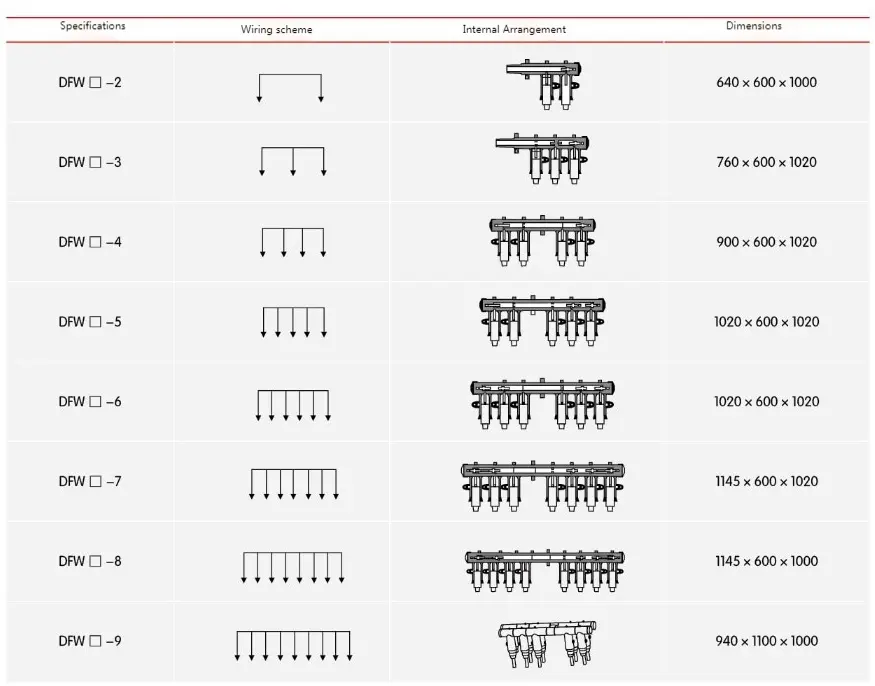

● Order number description of the 35kV Outdoor Cable Box

● Technical parameter of the 35kV Outdoor Cable Box
